Summary of Contents for Origin Acoustics WSK200

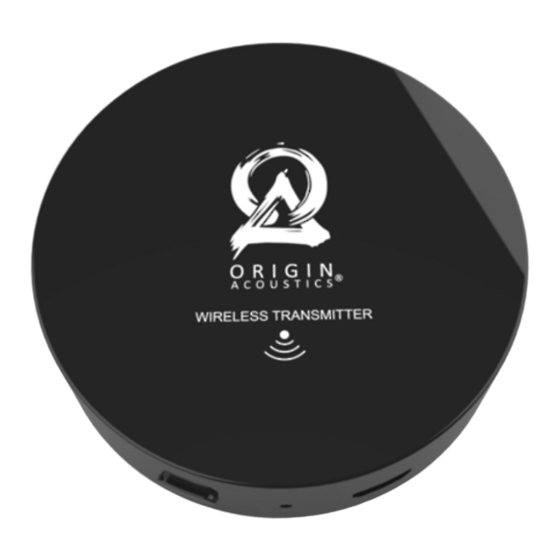

- Page 1 Subwoofer Collection Wireless Subwoofer Kit INPUT WSK200 DC 5V Installation Manual WSK200...
- Page 2 Subwoofer Collection Table of Contents Introduction - 1 Specifications - 2 What’s Included - 2 General Placement and Setup Tips - 2 Connecting the Wireless Transmitter to an AV processor - 3 Connecting the Wireless Transmitter to a 2-channel stereo pre-amp - 3 Connecting the Wireless Receiver to your Subwoofer - 4 Pairing the Transmitter and Receiver - 4 Technical Assistance - 4...
- Page 3 Subwoofer Collection Introduction Thank you for purchasing WSK200, Wireless Subwoofer Kit. At Origin Acoustics, we take pride in providing you with a high quality product. This instruction booklet covers the necessary information for a smooth installation, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information.
- Page 4 Subwoofer Collection Specifications Receiver Transmitter Operating Voltage: DC 5V / 0.5A Operating Voltage: DC 5V / 0.5A RF Frequency Band: 5135 MHz - 5820 MHz RF Frequency Band: 5135 MHz - 5820 MHz Modulation: GFSK Modulation: GFSK Working Distant: 40 Meters / light of sight Working Distant: 40 Meters / light of sight Transmitter Power: less than 10 dBm Transmitter Power: less than 10 dBm...
- Page 5 Subwoofer Collection WIRELESS RECEIVER VOLUME PHASE 0˚ CROSSOVER WIRELESS RECEIVER DC 5V /500mA Connecting the Wireless Transmitter to an AV processor 1. Connect the 3.5 mm to dual RCA adapter cable to the subwoofer pre-out or LFE channel of the AV processor and to the input on the wireless transmitter.
- Page 6 If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning...
- Page 7 Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
- Page 8 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
