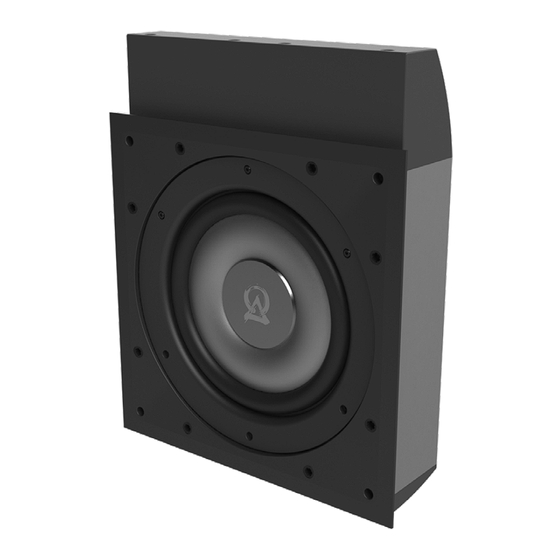

- Page 1 EXPLORER COLLECTION CSUB10REX Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications What’s Included Tools & Items Speaker Placement Amplifier About Speaker Wire Installation - Installing the wire - Cutting the Hole - Painting The Grille - Connecting The Wires - Insert The Enclosure - Attach The Bezel - Mounting The Grille Troubleshooting Technical Assistance... -
Page 3: Introduction
Introduction Thank you for purchasing the Explorer Collection. The Explorer Collection of loudspeakers from Origin Acoustics were developed to withstand the harsh conditions found in marine environments. This includes exposure to saltwater, extreme temperature changes and airborne humidity. They will produce amazing musical fidelity while spending family time on the lake or a trip on the open sea and they have the build quality to last for years in these situations. -
Page 4: Specifications
EXPLORER SPECIFICATIONS Model Number CSUB10REX Part Number Woofer Cone Material Aluminum Woofer Diameter 10” (254mm) Frequency Response 30Hz-250Hz Impedance 8 ohm Power Handling 100-500watts Sensitivity 88dB Amplifier Recommendations SUBA500, SUBA150 Cutout Dimensions 12.83 x 12.83” (325 x 325mm) Dimensions (Enclosure) 32⁄... -
Page 5: Whats Included
Explorer Collection™ Manual WHATS INCLUDED Enclosure Bezel Screws (x4) Grille Hex Wrench Manual TOOLS & ITEMS • Drywall Saw • Measuring Tape • Stud Finder • Speaker Wire • Drill • Fish Tape • Pencil • Drill Bit ⅛” (3mm) •... -
Page 6: Amplifier
Explorer Collection™ Manual AMPLIFIER This subwoofer has been designed to work with an Origin Subwoofer amplifier, either the SubA150 or the SubA500. ABOUT SPEAKER WIRE You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. -
Page 7: Cutting The Hole
Explorer Collection™ Manual Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire and you may need to combine several of them. Under the Carpet: One option is to lift up the carpet and use tape wire to route the wire under the carpet. Behind the Baseboard: The wire can be routed behind the baseboard by cutting a groove out of the back of the baseboard, or by buying special baseboard designed for concealing wires. -
Page 8: Painting The Grille
Explorer Collection™ Manual 3) Painting the Grille In some situations the subwoofer may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 9: Connecting The Wires
Explorer Collection™ Manual 4) Connecting the Wires Push down on the top of the connector and insert the wire, making sure that the positive is being attached to the red connection and the negative is being attached to the black connection. -
Page 10: Attach The Bezel
Explorer Collection™ Manual 6) Attach the Bezel Only one side of the bezel will nest onto the lip that is holding the enclosure in place. Once the bezel is positioned properly, screw it in place four screws and the supplied hex wrench. - Page 11 Explorer Collection™ Manual NOTES...
-
Page 12: Troubleshooting
Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 13: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 14: Warranty
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 15: Not Covered By Warranty
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 16 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
