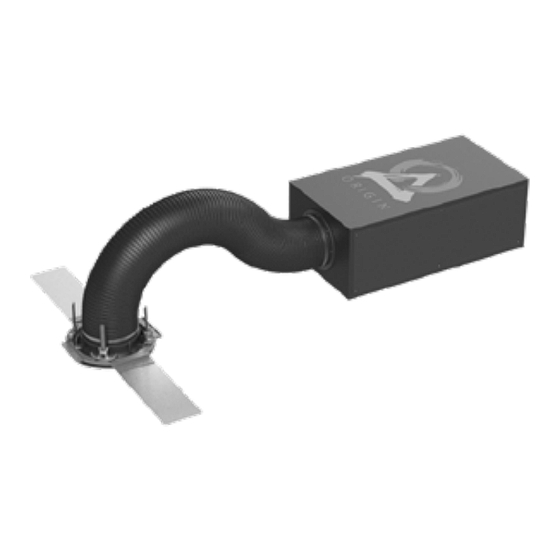

- Page 1 DSUB Collection™ Manual DSUB COLLECTION DSUB6F68K DSUB6F5K DSUB6F3K DSUB8F8K DSUB Collection Installation Manual...
-
Page 2: Table Of Contents
DSUB Collection™ Manual Table of Contents Introduction Specifications What’s Included Tools & Items Wire Recommendation Planning About Speaker Wire Installing the Enclosure Installation before Drywall Installation after Drywall Installing the Bayonet Ring Wire Routing Installing the Wire Connecting the Wire Wiring: Separate Sub Amplifier &... -
Page 3: Introduction
Introduction Thank you for purchasing the DSUB Collection. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
DSUB Collection™ Manual SPECIFICATIONS Model: DSUB6F68K Part: DSUB6F680 • Woofer: Dual 6 1/ 2 ” Poly • Dimensions: 7 29/ 3 2 x 11 3/ 1 6 x 18 29/ 3 2” (201 x 284 x 480mm) • Frequency Response: 33Hz-200Hz •... -
Page 5: What's Included
DSUB Collection™ Manual What’s Included Bracket Grille Installation manual Speaker Zip-Cliq Screws (6) Template Tools & Items • Drywall Saw • Measuring Tape • Stud Finder • Speaker Wire • Drill • Fish Tape • Pencil • Drill Bit ⅛” (3mm) •... -
Page 6: Planning
DSUB Collection™ Manual Planning: Amplifier Wiring We recommend using one of our separate subwoofer amplifiers or 3-channel amplifiers with the DSUB8 for best performance. This method will allow you to adjust the subwoofer output to achieve the sub-to-satellite balance you want regardless of subwoofer location or number of satellite speakers used. -
Page 7: Installing The Enclosure
DSUB Collection™ Manual colors or patterns are used. You can choose whichever color of wire you want to be positive and negative as long as you remain consistent throughout the install. On both your amplifier and your speaker the connectors will be identified as red for positive and black for negative. -
Page 8: Installation Before Drywall
DSUB Collection™ Manual 2. Installation before Drywall Use the 8 supplied screws to attach the port tube to the enclosure. Test the wired DSUB to see that it’s working properly. If you are using 2 channels of input, make sure to test both. Install the BR68 new construction bracket to position the hole for the port opening. -
Page 9: Installing The Bayonet Ring
DSUB Collection™ Manual will probably want to twist the port adaptor counterclockwise an inch or two be- fore twisting it into the InstaMount so that the torque of the port tube doesn’t accidentally “un-twist” the port adaptor when it’s in use. 4. -
Page 10: Wire Routing
DSUB Collection™ Manual Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be baseboard by cutting a groove out sure to avoid all obstacles such as AC... -
Page 11: Installing The Wire
DSUB Collection™ Manual 5. Installing the Wire Strip ¼ to ½ inches (6 to 12 mm) of the insulation off both ends of the wire. To avoid stray strands, twist them at the 0.25 - 0.5” end. Connect the wire to the amplifier, (6 - 12mm) and make sure the wire connected to the left speaker output will be routed... -
Page 12: Wiring: Separate Sub Amplifier & 2-Channel Amplifier
DSUB Collection™ Manual 7. Wiring: Subwoofer Amplifier Connect the positive wire from the subwoofer amplifier to the positive input terminal and the Subwoofer negative wire the remaining input terminal. Amplifier Subwoofer Amplifier Amplifier 8. Wiring: 3-Channel Amplifier Insert the +/- channel wire from the 3 Ch amplifier’s Subwoofer Channel into the terminals of the DSUB, making sure that the positive wire is being attached to the... -
Page 13: Painting The Grille
DSUB Collection™ Manual 9. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 14: Troubleshooting
DSUB Collection™ Manual Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them. -
Page 15: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 16: Warranty
DSUB Collection™ Manual Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, pro- vided the speaker was purchased from an Origin Acoustics authorized dealer. -
Page 17: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 18 DSUB Collection™ Manual Notes...
- Page 19 DSUB Collection™ Manual Notes...
- Page 20 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
