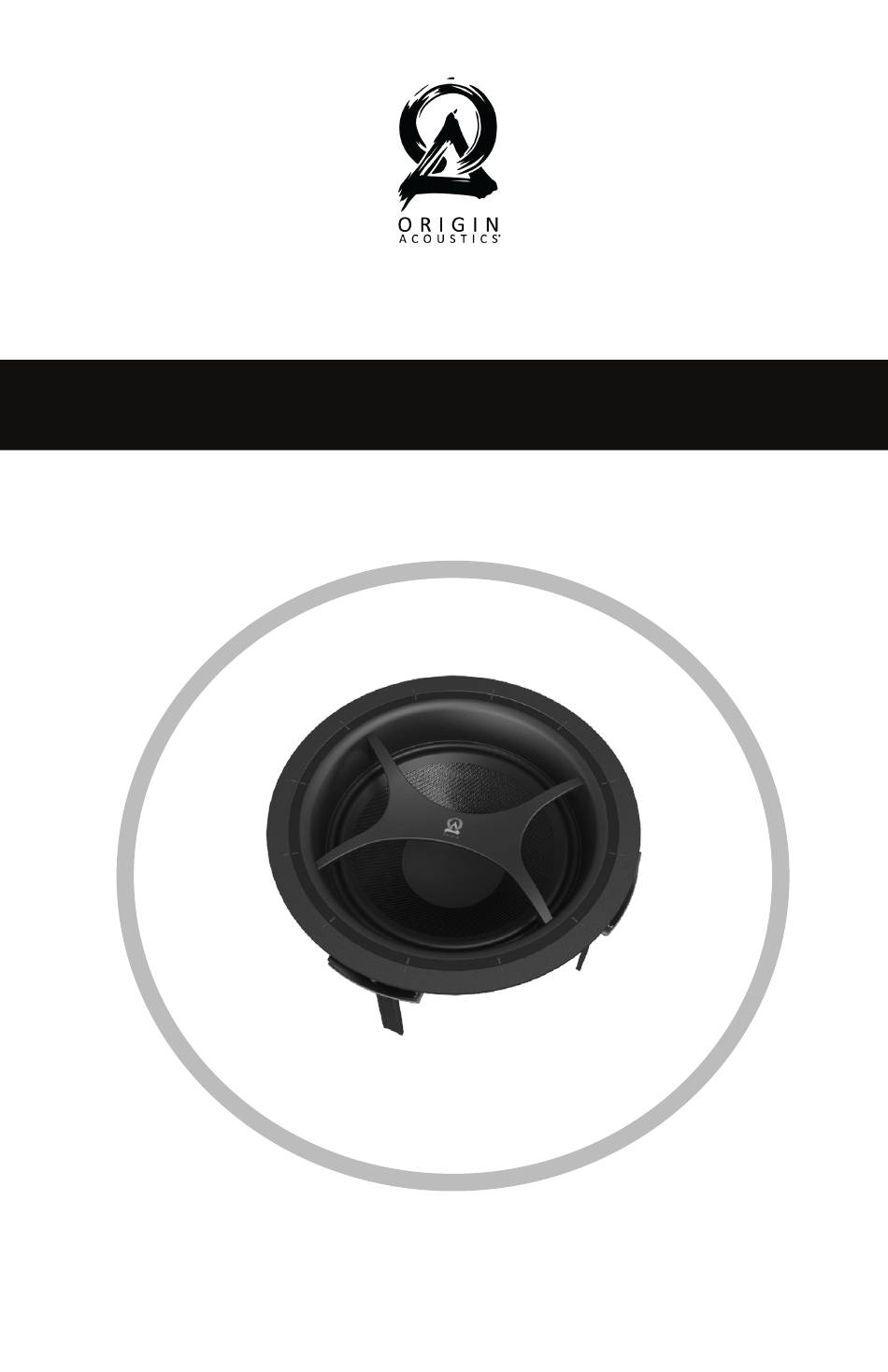

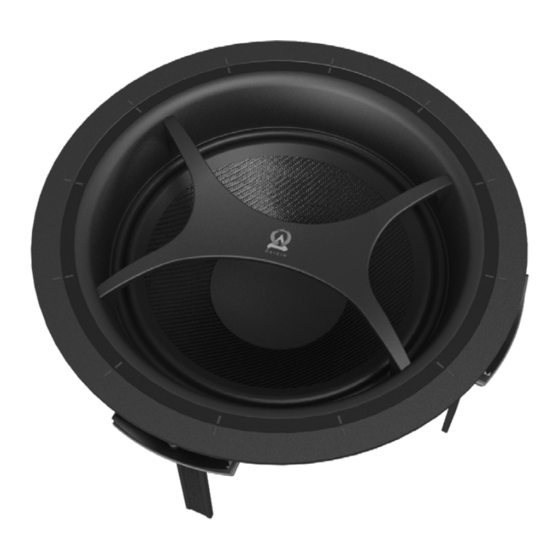

- Page 1 EXPLORER COLLECTION In-Ceiling Subwoofer DBA10EX DBA10EX Installation Manual...
-
Page 2: Table Of Contents
DBA10EX In-ceiling Subwoofer Manual Table of Contents Introduction Specifications What’s Included Tools & Items Wire Recommendation Subwoofer Placement About Speaker Wire Installing the Wire Wire Routing For New Construction Painting the Grille Cutting the Hole Installing the Bayonet Ring Connecting the Wire Installing the Speaker Subwoofer/Amplifier Setup Installing the Grille... -
Page 3: Introduction
Introduction Thank you for purchasing the DBA10EX In-Ceiling Subwoofer of the Explorer Collection. The Explorer Collection of loudspeakers from Origin Acoustics were developed to withstand the harsh conditions found in marine environments. This includes exposure to saltwater, extreme temperature changes and airborne humidity. -
Page 4: Specifications
DBA10EX In-ceiling Subwoofer Manual Specifications MODEL DBA10EX PART DBA10000EX Woofer 10” Fiberglass Frequency Response 35Hz – 200Hz Power RMS 50 Watts Power Peak 150 Watts Impedance 6 ohm Diameter 11 1/ 4 ” (286mm) Grille Diameter 11 21/ 3 2” (298 mm) Cut-Out Diameter 10 3/ 8 ”... -
Page 5: What's Included
DBA10EX In-ceiling Subwoofer Manual 11.75in 298.6mm 5.55in What’s Included 140.9mm Speaker Bayonet Ring Grille Template DBA10 SCALE:1:4 Tools & Items • Drywall Saw • Measuring Tape • Stud Finder • Speaker Wire • Drill • Fish Tape • Pencil • Drill Bit ⅛”... -
Page 6: Subwoofer Placement
DBA10EX In-ceiling Subwoofer Manual Subwoofer Placement The music we hear as bass is made up of frequencies that have long to very long wavelengths (6ft. to 50ft.). Therefore, when a subwoofer is placed into a room, its position in the room will affect the amount of bass perceived by the listener. In other words, placing the speaker in some areas of a room will result in more bass than in other areas of the same room. -
Page 7: About Speaker Wire
DBA10EX In-ceiling Subwoofer Manual About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle. -
Page 8: Wire Routing
DBA10EX In-ceiling Subwoofer Manual 2. Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be sure baseboard by cutting a groove out of the... -
Page 9: Painting The Grille
DBA10EX In-ceiling Subwoofer Manual 4. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be paint- ed with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 10: Installing The Bayonet Ring
DBA10EX In-ceiling Subwoofer Manual 6. Installing the Bayonet Ring Adjust the clips so that they’re positioned at the top of the rail. If they’re not already there you can do this by pushing the release tabs (or metal “buttons”) on the inside of the rail and pulling the clips to the top of the rails. -
Page 11: Installing The Speaker
DBA10EX In-ceiling Subwoofer Manual 1. Fit into Ring 8. Installing the Speaker Fit the speaker into the bayonet ring, and twist it clockwise into place. When the arrow on the speaker lines up with one of the arrows on the bayonet ring, that means the speaker is 2. -
Page 12: Subwoofer/Amplifier Setup
For the highest quality performance, Origin Acoustics has two amplifiers that are specifically designed to drive the DBA10EX as well as other in-wall and in-ceiling subwoofers in the Origin line. The SUBA150 is a dedicated, single-channel subwoofer amplifier with both line level and speaker level inputs. -
Page 13: Troubleshooting
DBA10EX In-ceiling Subwoofer Manual Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. -
Page 14: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 15: Warranty
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 16: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 17 DBA10EX In-ceiling Subwoofer Manual NOTES...
- Page 18 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
