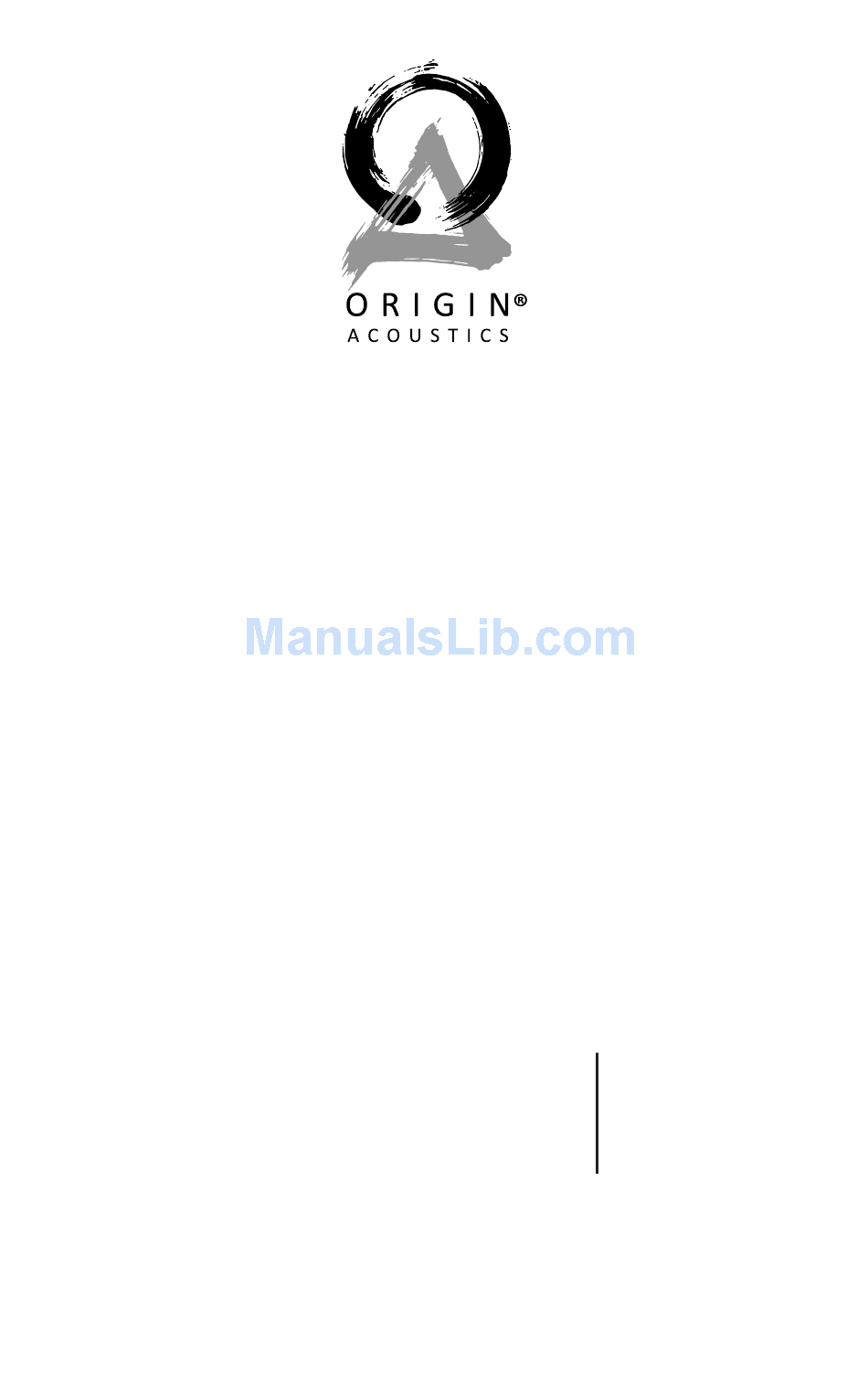

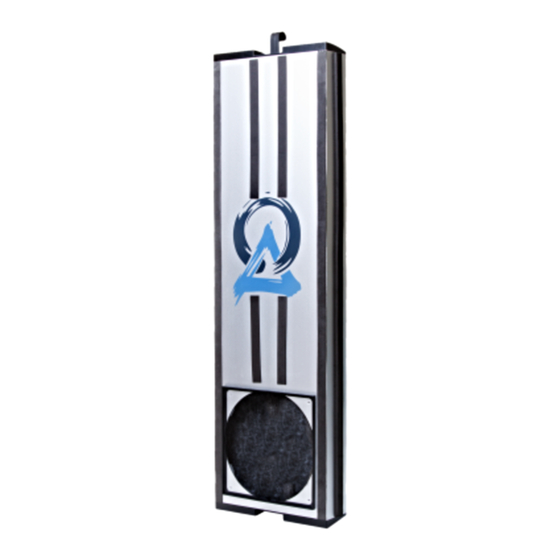

- Page 1 Installation Manual 10” IN-WALL SUBWOOFER Model: CSUB10N CSUB10NCE V 1.1...
-
Page 2: Table Of Contents
2) Installing the Enclosure 3) Attach the Wire to the Enclosure 4) Drywall Baffle Instruction Installation Requirements and Recommendations 6 CSUB10N: What’s Included Required Tools/Items Baffle Installation 1) Installing the Subwoofer Baffle 2) Painting the Grille 3) Mounting the Grille... -
Page 3: Introduction
Introduction Thank you for purchasing the CSUB10NCE In-Wall Subwoofer. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ subwoofers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Required Tools/Items
Required Tools/Items • Screwdriver • Speaker wire • Tape measure Figure 2.1: Tools Speaker Wire Recommendations For this setup, use a multi- smaller the wire size you can use, stranded wiring designed for however you can never go wrong amplifier to speaker connections. by using a thicker gauge. -
Page 5: Enclosure Installation
CSUB10N & CSUB10NCE INSTALLATION MANUAL Enclosure Installation 1) Installing the Wire Strip ¼ to ½ inches (6 to 12 mm) of the insulation off both ends of the wire. To avoid stray strands, twist them at the end. Connect the wire to the am- plifier, but don’t plug in the... -
Page 6: Installing The Enclosure
2) Installing the Enclosure Using the 8 provided screws, attach the two mounting brack- ets to the studs so that they are facing each other. Once every- thing’s installed, the distance between the bottom of the sub- woofer and the bottom of the bracket will be about 49”. -
Page 7: Attach The Wire To The Enclosure
CSUB10N & CSUB10NCE INSTALLATION MANUAL 3) Attach the Wire to the Enclosure Depending on how you ran the wires to the subwoofer loca- tion, the wires can be attached to the connectors at the top or bottom of the enclosure. Push on the end of the connector and insert the wire. -
Page 8: Baffle Instruction
Baffle Instruction Thank you for purchasing the CSUB10N In-Wall Subwoofer. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ subwoofers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 9: Required Tools/Items
CSUB10N & CSUB10NCE INSTALLATION MANUAL Required Tools/Items • Screwdriver that can hold hex-wrench Figure 7.1: Tools Optional Tools/Items For painting the grille • Can of spray paint For painting the grille • Can of compressed air WWW.ORIGINACOUSTICS.COM... -
Page 10: Baffle Installation
Baffle Installation 1) Installing the Subwoofer Baffle When you’re ready to install the baffle, start by removing the placeholder plate. Connect the speaker wires from the enclosure to the woofer ter- minals. Note that the terminals are sized differently to assure Figure 8.1: Connecting Wire that they get connected to the proper woofer terminals. -
Page 11: Painting The Grille
CSUB10N & CSUB10NCE INSTALLATION MANUAL 2) Painting the Grille In some situations the sub- woofer may look better if the color matched the walls, ceil- ing, or trim in the room. This can be accomplished by paint- ing the grille. The grille must be painted with spray paint. -
Page 12: Making Amplifier Adjustments
4) Making Amplifier Adjustments 1. “Crossover” should be the first adjustment you set. But you can always come back and fine tune this later. • If you are using the LFE output from a home theater receiver, set the crossover frequency on the subwoofer amp as high as you can since you will be controlling this on the receiver’s set-up routine. - Page 13 CSUB10N & CSUB10NCE INSTALLATION MANUAL well. c. Set the volume so that the bass level sounds ap- proximately right to slightly bass heavy. d. You will want to be in the critical listening area. Have a helper adjust the phase control until the bass level sounds the loudest.
-
Page 14: Specifications
Specifications Model Number (Enclosure) CSUB10NCE Model Number (Baffle) CSUB10N Part Number (Enclosure) CSUB10000NCE Part Number (Baffle) CSUB1000AN Woofer Cone Material Aluminum Woofer Diameter 10” (254mm) Frequency Response 30Hz-250Hz Impedance 8Ω Power Handling 100-500 watts Sensitivity 88dB Amplifier Requirements SUBA500, SUBA150 Cutout Dimensions 10.55x 10.55”... -
Page 15: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 16: Warranty
Warranty Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, provided the speaker was purchased from an Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’... -
Page 17: Requirements And Warranty Coverage
• Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Origin Acoustics or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues • Damage caused by voltage inputs in excess of the rated maximum of the unit •... - Page 18 ©2016 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
