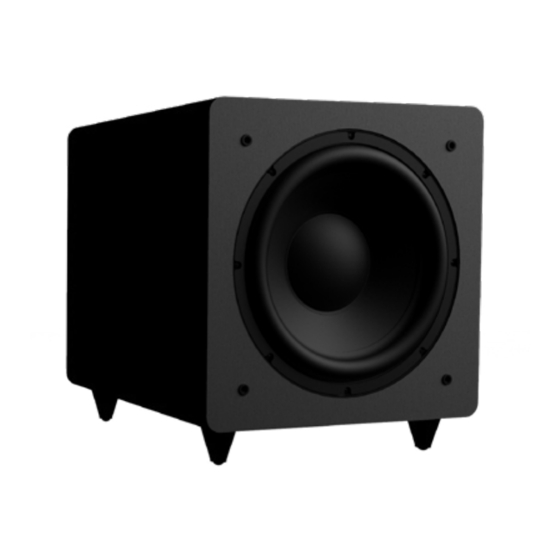

- Page 1 SUBWOOFER COLLECTION SUBV12P SUBV10P SUBV8P Installation Manual SUBV12P, SUBV10P, SUBV8P...
-
Page 2: Table Of Contents
Subwoofer Collection Table of Contents Introduction - 1 Important Safety instructions - 2 Specifications - 6 What’s Included - 7 General Information - 7 Controls & Connections - 8 Subwoofer Placement - 10 Subwoofer A djustment - 10 Troubleshooting - 11 Technical Assistance - 12 Warranty - 13 Return Process - 14... -
Page 3: Introduction
Introduction Thank you for purchasing the SUBVP Subwoofer. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Important Safety Instructions
Subwoofer Collection Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 Subwoofer Collection The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 6 Subwoofer Collection Consignes de sécurité importantes 1) Lisez ces instructions. 2) Conservez ces instructions. 3) Observez tous les avertissements. 4) Observez tous les avertissements. 5) N’utilisez pas cet appareil à proximité de l’eau. 6) Utilisez uniquement un chiffon sec pour le nettoyer. 7) Ne bloquez pas les ouvertures de ventilation.
- Page 7 Subwoofer Collection Le symbole de l’éclair avec une flèche à son extrémité, dans un triangle équilatéral, a pour but de vous avertir de la présence d’une « tension électrique dangereuse » et non isolée à l’intérieur de l’enceinte de l’appareil, qui peut être suffisamment puissante pour constituer un risque d’électrocution pour les personnes.
-
Page 8: Specifications
Subwoofer Collection Specifications SUBV12P SUBV10P 12” Front-Firing Treated Paper Cone Woofer 10” Front-Firing Treated Paper Cone Woofer 12” Down-Firing Passive Radiator 10” Down-Firing Passive Radiator 300W Class D Amp 200W Class D Amp Power Rating Continuous: 300 Watts RMS Power Rating Continuous: 200 Watts RMS... -
Page 9: What's Included
Subwoofer Collection What’s Included Subwoofer Grille AC Power Cord Manual Extras You’ll Need RCA audio interconnect cables Sound pressure level meter (or smartphone app) General lnformation • Observe all warnings on the subwoofer and in the manual. Please check the subwoofer for damage before use. -
Page 10: Controls & Connections
Subwoofer Collection Controls & Connections Status Light This light glows when the subwoofer’s power is on. Off/Auto/On Switch This switch functions only when the power switch (see pg. 10 “Power Switch”) is set to “on.” When this switch and the power switch are both set to “on,” the subwoofer’s power will always be on. When this switch is set to “auto,”... - Page 11 Subwoofer Collection Volume This knob adjusts the subwoofer’s volume. Turn it clockwise for full volume. Note that the subwoofer level control in an AV receiver will also affect how loud the subwoofer plays. With most AV receivers, setting this knob at about halfway up (the 12 o’clock position) will provide a volume level that allows the subwoofer’s level to be matched with that of the main speakers.
-
Page 12: Subwoofer Placement
Subwoofer Collection Power switch This is the master power switch that turns on the AC power. It must be in the “on” position for the subwoofer to function. If the power switch is on, the on/auto/off switch (see pg. 8 “off/Auto/On Switch”) controls the subwoofer’s power. -
Page 13: Troubleshooting
Subwoofer Collection Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 14: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning... -
Page 15: Warranty
Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 16: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 17 Subwoofer Collection NOTES...
- Page 18 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
