Summary of Contents for Labnet AccuPlate D0400

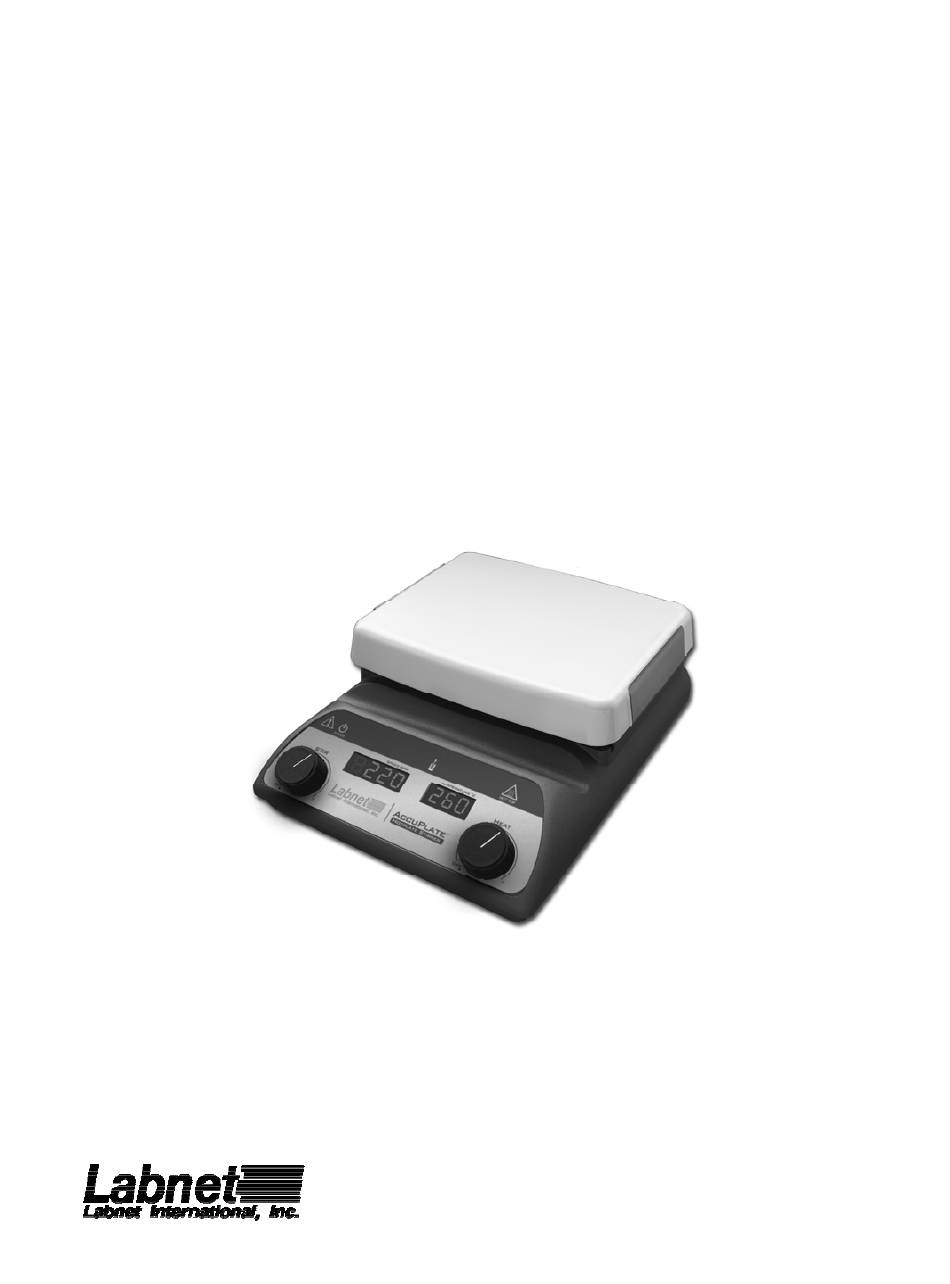

- Page 1 Instruction Manual Model AccuPlate™ Hotplate AccuPlate Stirrers AccuPlate Hotplate Stirrer 12/10 CLS-EQ-LHP01REV2 9296050000...
-
Page 2: Table Of Contents
About This Manual This manual is designed to assist you in optimal usage of your new hot plate, stirrer or hotplate stirrer. Product Voltages Hot plates, stirrers, and stirrer/hot plates are available in different voltages. Before initial use, check that the unit you received is the correct voltage for your location. Warranty Registration Filling out and mailing the attached Warranty Registration Card or submitting this information online at http://www.labnetlink.com will validate the hot plate, stirrer or hotplate stirrer’s warranty. -
Page 3: Safety Information
Safety Information This instruction manual contains important operating and maintenance instructions which must be read, understood, and followed by the product user. Failure to use this product according to this instruction manual may degrade or defeat the protection normally provided by this product. Read this instruction manual prior to product use and keep this instruction manual for future reference. -
Page 4: Operating Conditions
Operating Conditions Labnet hot plates, stirrers, and stirrer/hot plates are designed to provide safe functioning under the following conditions: Indoor use Altitude up to 2000 meters (6,500 feet) Ambient temperatures of 0°C to 30°C Product should be placed on a flat surface at least 30.5 cm (12") from walls, 122 cm (48") from ceilings, and 30.5 cm (12") from other hot plates if using multiple units. -
Page 5: Product Connections
Product Connections 1. Power Cord Input: Connect the supplied power cord into this connector. 2. External Temperature Controller Input: Connect the optional External Temperature Controller into this connector. To Connect the External Temperature Controller 1. Turn the Stir Control Knob and Heat Control Knob to the OFF position. 2. -
Page 6: Heating Instructions (Without The External Temperature Controller)
5. When desired stirring is complete, turn the Stir Control Knob to the OFF position. Allow stir bar to cease rotation before removing the vessel from the unit. 6. Heating and stirring can be performed simultaneously on the D0420 models which offer both heating and stirring functions. -
Page 7: Heating Operation Principles
An External Temperature Controller is available for this product as an accessory item. Contact your Labnet distributor for additional details. When the External Temperature Controller is connected to the product, the closed loop control process described previously is extended to include temperature input from the External Temperature Controller. -
Page 8: Heating Operation Safety
A product shut down by an error routine must be disconnected and reconnected to mains input before it can be used again. Please contact your Labnet Distributor if a product does not reset from the error routine shut down or if it continues to shut down after resetting. -
Page 9: Technical Specifications
Technical Specifications Power (Volts/Hz/Watts/Amp Name Model 120V Models 100V Models 230V Models Temp Stir Range Weight Range* (RPM) AccuPlate D0400 120V/60Hz/ 100V/60Hz/ 230V/50Hz/ 5°-550°C 2.7kg Hotplate 628W/5.3A 548W/5.5A 628W/2.7A (41°-1022°F) (6.0lbs.) Accuplate D0410 120V/60Hz/ 100V/60Hz/ 230V/50Hz/ 60-1150 3.2kg Stirrer 73W/0.7A 78W/0.8A 73W/0.3A (7.0lbs.) -
Page 10: Frequently Asked Questions
Can I use a metal tray on top of my Labnet hot plate? No. The metal will act as a heat sink, and have a high probability of creating an abnormal heating condition. -
Page 11: Ce, Weee
CE Declaration of Conformity Labnet International Inc. hereby declares under its sole responsibility that the following products: D0400, D0400-230V, D0410, D0410-230V, D0420 and D0420-230V Conform to the following EU Directives: 73/23/EEC: Low Voltage Directive as amended by 93/68/EEC 89/336/EEC: Electromagnetic Compatibility Directive... -
Page 12: Warranty Statement
Labnet International, Inc. warrants that this product will be free from defects in material and workmanship for a period of two (2) years from date of purchase. If a defect is present, Labnet International will, at its option, repair, replace, or refund the purchase price of this product at no charge to you, provided it is returned during the warranty period.
