- Page 1 vCam-5 User Handbook (English Edition) Version 1.0 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343...
-
Page 2: Table Of Contents
Table of Contents General Safety Instructions ···································································································· 1 1.1 Before using for the first time, please read the following carefully: ······································ 1 1.2 Important Notes ······································································································· 1 Health and Safety ················································································································ 2 Service & Support ················································································································ 3 3.1 Distributors and Service Centers Near You: ·································································· 3 Introduction ························································································································ 4 4.1 System Components ································································································ 4 4.1.1 Control Module ·································································································· 4 4.1.2 Cable Reel Assembly ··························································································... - Page 3 Control Module Direct Connection··············································································21 5.6.1 Control Module Direct Connection by Ethernet Cross Talk Cable·································21 Control Module Connection by WIFi·····································································22 5.6.2 5.7 Internet Explorer “Live View” Browser Interface·····························································24 Cable Reels··········································································································26 Type-CP “Standard” Reel···················································································26 5.8.1 Type-M2 “Mini” Reel··························································································27 5.8.2 Pushrod Cable··································································································27 5.8.1 Camera Heads··················································································································30 6.1 Camera Head Range······························································································30 6.2 Installing the Camera Head······················································································30 Pre Check the Camera and Connection··································································30 6.2.1 Installing the Camera Head················································································30 6.2.2 Removing the Camera Head···············································································31 6.2.3 6.3 Termination Parts and Camera Heads·········································································32 6.4 Locating the position of the camera head····································································33 Skids·······························································································································34 7.1...
-
Page 4: Before Using For The First Time, Please Read The Following Carefully
1 General Safety & Care Information Service & Support Before using for the first time, please read the following carefully: • Install the fuse into the fuse compartment on the back of the unit. • In general, the vCam-5 can be used in either indoor or outdoor. (Do not operate the control module with a mains input in wet areas or where there is risk of rain.) • To ensure safety and reliable operation – DO NOT subject this unit to extreme temperatures, shock or impact. • Avoid getting moisture/water inside the enclosure. • To avoid the risk of electric shock, do not open the sealed enclosure. • Li-ion rechargeable batteries pack • Do not remove or attempt to access the rechargeable batteries. -
Page 5: Health And Safety
Health and Safety Health and Safety This equipment is primarily used for the inspection of sewer pipes, by professionals operating in the sewer industry, and maintained by professionals familiar with the health risks on maintaining equipment that has been in a sewer. Such professionals will be protected by their own company’s recommendations and work practices. If for any reason they are not, or are not familiar with such practices, please check our website or email sales@vxmt. com for a copy of the Health and Safety Document used by Vivax-Metrotech for employees involved in the demonstration, maintenance and handling of sewer camera systems. Page 2 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343... -
Page 6: Service & Support
3 Service & Support Service & Support Distributors and Service CentersNear You: United State of America United Kingdom Vivax-Metrotech Corporation Vivax-Metrotech Ltd. 3251 Olcott Street, 14-15, Bishops Court Gardens, Santa Clara, CA 95054, USA Bishops Court Lane, Website : www.vivax-metrotech.com Clyst St. Mary, Exeter, Devon, EX5 1DH, UK Sales & Sales Support: T/Free : 800-446-3392 Tel : +44(0)1392-368833 Tel : +1-408-734-1400 Website : vivax-metrotech.com Fax : +1-408-734-1415 Email : salesUK@vxmt.com Email : sales@vxmt.com Application Support:... -
Page 7: Introduction

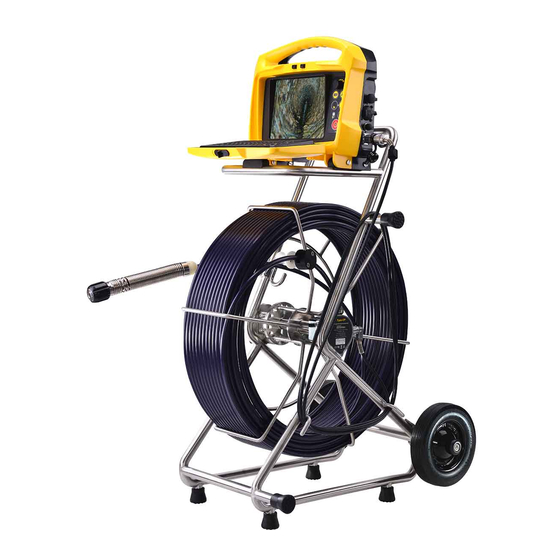

Introduction Introduction System Components The vCam-5 Inspection System consist of 3 major components, The Control Module, Reels and Camera Heads. Please take a moment to review these components. NOTE Always quote the appropriate model and serial number(s) in all communication with the factory, or authorized service centers. 4.1.1 Control Module The vCam-5 control module allows for the viewing and recording of videos, jpeg format still picture capturing, video playback, text commenting, audio commenting, time & date stamping and providing an approximate distance of pushrod deployed. -
Page 8: Cable Reel Assembly
Introduction 4.1.2 Cable Reel Assembly (Includes the reel, pushrod and termination spring) The cable reel is used to store and control the deployment the pushrod cable and hold the control module at a comfortable height for use The serial number for the Cable Reel can be found on the black slip ring block in the center of the cable cage. 4.1.3 Camera Heads Camera heads are available in different sizes for different applications. Camera heads may be Self Leveling, also known as “auto upright”, or fixed position types. The serial number for the camera heads can be found on the housing under the skid. Model D46/SL-C D34/SL-C D34/SL-M B25/STD-M 1.8”/46mm 1.3”/34mm 1.3”/34mm 1”/25mm Diameter Type-CP Type-CP Type-M2 Type-M2 Fits reels 12mm 12mm 10mm 10mm Mounting size Self Leveling Page 5 of 40 info@wctproducts.com | 13309 Beach Ave. -
Page 9: Control Module Interface
Introduction Control Module Interface It is a good idea to familiarize yourself with the Control module, user interface controls, plugs and sockets. Front Panel Main Controls: (front panel) 1 LED Dimmer Control - Use to adjust LED brightness of camera head 2 Distance Counter Reset - Use to reset distance out shown on screen to Zero (0) 3 Internal Microphone - Speak directly into the internal microphone to record verbal notes over videos. 4 Battery Charging Indicator - Shows the charging status of the internal batteries. Red while charging, Green when charged. 5 Power On/Off. Press and release to turn on, Press and hold to power off. 6 Sonde On/Off - Press to activate the Sonde, press again to turn off. 7 Microphone On/Off - Press to activate, press again to turn off. 8 External Microphone Socket - Plug in an external microphone or headset to add audio comments over your videos. (microphone not included) Interconnect, DC Power and Test Ports: (right side) - Page 10 Introduction Media Ports Right Panel Ports: (left side) 1 RJ45 Network Socket - Use this socket with a standard Ethernet cable to link the control module to a laptop or desktop PC. 2 USB Port - Use the USB port to transfer and move videos from the control modules hard drive to a USB thumb drive. You can also record directly to the USB thumb drive after you set the control module to use the USB port as the default record to media. 3 SD Card Slot - Use the SD Card slot to transfer and move videos from the control modules hard drive to a SD Card. You can also record directly to the SD Card after you set the control module to use the SD Card Slot as the default record to media.
-
Page 11: Using The Vcam-5 Control Module
5 Using the vCam-5 Control Module Using the vCam-5 Control Module Setup 5.1.1 Setting up the vCam-5 System The control module can be used mounted on the Type-CP Standard Reel or off and to the side. Power input – AC Power (wall sockets) - The (100-240V AC) AC power socket is located on the bottom of the left side panel on the control module. Move the rubber socket cover from the AC power socket and let hang by the rubber hinge. Plug the power cord into the AC Socket noting the position of the 3 contacts in the plug and socket. Power input – DC Power (vehicle socket) The (12V DC) DC power socket is located on the right side panel on the control module. Move the rubber socket cover from the DC power socket and let hang by the rubber hinge. Plug the DC power cord into the DC Socket. When using the DC power cord the control module will charge the internal batteries as well as power the control module. Fuse - Make sure the 10A-250V fuse is installed in the fuse compartment on the back of the unit. Charging - Connect the power cord cable as described above. The Charging Icon on the front panel of the control module will glow red while charging and go dark when the unit is completely charged. The typical charging time to fully charge a completely discharged battery set will be approximately 5 hours and provide approximately 5 hour of use. -
Page 12: Initial Control Module Set Up
5 Using the vCam-5 Control Module 5.1.2 Initial Control Module Set Up The initial setup of the control module allows you to set your default storage for videos and pictures, metric or imperial distance measurement, date and time formats, Sonde frequency, language and type of reel being used with the control module. The initial setup can be done with or without the reel plugged into the control module. It is recommended to set your language first so that all the other menus will be easily read. 5.1.3 Setting the Language Press the F10 Menu twice to bring up the “Setup” menu. Use the down arrow key to highlight “Language”, then use the right arrow key to bring up the list of available languages and scroll down the list using the down arrow key to highlight your desired language. When the desired language is highlighted press the enter key . The system will now reboot and your selected language will be used. English Default Storage German Format Russian Distance Counter Dutch Date/Time Spanish Sonde 512|640 French Wi-Fi Japanese Video Out Polish Language... -
Page 13: Setting The Distance Counter
5 Using the vCam-5 Control Module NOTE Note that the drive set as default is shown at the top of the “File” Menu. 5.1.5 Setting the Distance Counter Setting the Distance Counter tell the control module to display the amount of pushrod deployed in either Imperial Feet or Metric Meters. This distance deployed will appear of the screen (and recorded videos and pictures) when the feature is activated by using the F2 Info Key. Note that it is important that you verify the actual position and depth with a Sonde Locator or Pipe & Cable Locator before excavating the pipe. -
Page 14: Setting The Date/Time Format
5 Using the vCam-5 Control Module 5.1.6 Setting the Date/Time Format Setting the Date/Time allows you to use a choice of three(3) date formats and wither a 12 Hour or 24 Hour time format. Press the F10 Menu twice to bring up the “Setup” menu. Use the Up/Down arrow keys to scroll to the Date/Time selection. Use the Right arrow key to bring up the Date/Time sub menu. Use the Up/Down arrow keys to select the Month/Day/Year choice, a red shows your selection, select your format and use the Left/Right arrow keys to move to the “Time” format selections. Use the Up/Down keys to select either 12 Hour or 24 Hour time format. Use the Left/Right arrow keys to move to the “Date Input box”, now use the Up/Down arrow keys to set your numeric vale and use the Right/Left arrow keys to move within these selections. Highlight OK by using the Left/Right arrow keys and press Enter and you will be returned to the main Setup Menu. 5.1.7 Setting the Sonde Frequency Setting the Sonde frequency allows you to use either 512Hz or 640Hz frequencies when the Sonde On/Off button is pressed. Press the F10 Menu twice to bring up the “Setup” menu. Use the Down arrow key to scroll down to the Sonde Frequency selection. Use the Right arrow key to bring up choices of 512Hz or 640Hz. Use the Up/Down arrow keys to make your selection and press the Enter key . Use the Left arrow key or ESC key to return to the Setup Menu. Page 11 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343... -
Page 15: Wifi Setup
5 Using the vCam-5 Control Module 5.1.8 WiFi Setup The WiFi Setup screen will show you the control modules IP Address and SSID Name. You will need these to connect to the control module by WiFi. Press the F10 Menu twice to bring up the “Setup” menu. Use the Down arrow key to scroll down to the WiFi selection. Use the Right arrow key to bring up the WiFi setup information. Use the Left arrow key or ESC key to return to the “Setup” menu. 5.1.9 Setting the Reel Type The Reel Settings help the control module calculate the distance of the pushrod deployed into a pipe. You will need to tell the control module which type of reel being used and the amount of pushrod on that reel. This distance deployed will appear on the screen (and recorded videos and pictures) when the feature is activated by using the F2 Info Key. Note that it is important that you verify the actual position and depth of the camera with a Sonde Locator or Pipe & Cable Locator before excavating the pipe. Press the F10 Menu twice to bring up the "Setup" menu. Use the Down arrow key to scroll down to the Reel Setting selection. Use the Right arrow key to bring up the reel model choices. Use the Up/Down arrow keys to highlight the reel model type. Note that the Type-M and Type- CP reels offer a choice of pushrod length by using the right arrow key. Highlight your selection and press the Enter key. Use the Left arrow key or ESC key to return to the Setup Menu. Page 12 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343... -
Page 16: 5.1.10 Restore Default Settings
5 Using the vCam-5 Control Module 5.1.10 Restore Default Settings This option erases all menu settings and restores the control module to the factory defaults. Press the F10 Menu twice to bring up the “Setup” menu. Use the Down arrow key to scroll down to the Restore selection and press Enter. Use the Left/Right arrow keys to select OK or Cancel. Pressing OK will restore all setting to default, Cancel will cancel the option, and no changes will be made. 5.1.11 Update the ControlModuleFirmwareand Startup Screen This option allows upgrading of the control module’s firmware and for a picture to be added to the Startup Screen. Both Firmware and Startup Screen pictures can be updated by loading the firmware/picture onto an SD Card or USB Thumb Drive. Upgrades come in the form of “.bin” and “.soc” files. It may be necessary to upgrade one or both of them. The order in which they are upgraded does not matter. Firmware Extract the files and copy the .bin and or .soc file to a USB thumb drive or SD card. The files must be on the root drive of the drive or card, ie. the files must not be compressed or in a folder on the device. - Page 17 5 Using the vCam-5 Control Module Use the Up/Down arrow keys to select the USB or SD choices and press the Enter key . This should show either the SD Card or USB Thumb Drive which is plugged into the control module. Press Enter. Use the Up/Down arrow keys to select either the “.bin” or “.soc” file and press Enter. The file name, with extension, will be highlighted in yellow. Press enter. Page 14 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343...
- Page 18 5 Using the vCam-5 Control Module This will show a message box asking, “Do you want to upgrade the file xxxx”; press Enter to begin the upgrade. A status bar should appear showing time remaining. 10. When the upgrade is finished, the system will reboot itself. 11. Repeat these steps if you need to update both the .bin and .soc file, to upgrade the next file if needed. 12. Use the Left arrow key or ESC key twice to return to the “Setup” menu. Startup Screen To change the picture displayed when the control modules starts: have the picture ready on a USB thumb drive or SD card. The picture requirements are 16 bit .bmp format, no larger than 704 x 576 frame size. Follow steps 1 through 4 above but this time selects Startup Screen in step 5. Page 15 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343...
-
Page 19: 5.1.12 The About Screen
5 Using the vCam-5 Control Module 5.1.12 The About Screen The About screen shows the control modules Firmware (software) version and the Firmware release date. You may be asked for this information if you were to call us for technical support or for troubleshooting. The camera format being currently used, NTSC or PAL, is also shown here. Press the F10 Menu twice to bring up the “Setup” menu. Use the Down arrow key to scroll down to the About selection. Press enter and the Firmware version information will be displayed. Use the Left arrow key or ESC key to return to the “Setup” menu. NOTE All your settings will be saved to memory and retained when the control module is turned off. Video Recording and Snapshot Pictures 5.2.1 To Record Videos All video recordings will be saved to the default drive you selected in the initial control module setup screen. Press the red record button on the control module top panel to start a recording. A red flashing recording icon and recording length will appear on the status bar. - Page 20 5 Using the vCam-5 Control Module Use the Left/Right keys to move through steps of an operation (to select videos and pictures, play, copy, move and delete). Use the Up/Down keys to select single or multiple videos and or pictures to move, copy or delete. Selecting multiple files: the file list may contain multiple pages of six(6) files per page. At the top of the file list on the right corner you will see how many pages of files you have shown by the page number then number of pages. For example when you see 1/6 this means that you are on page one of 6 pages. To move from page to page use the Up/Down arrow keys to select the bottom row “next” and then use the right arrow to go to the next page. To go back to a previous page use the Up/Down arrow keys to move to the top row “Previous” and use the Right arrow key to go to the previous page. When you are in the list of pictures in a menu highlight the picture or video and press the Enter key to select it. You will see the white box to the right of the file name fill with a green check box. Use the UP/Down arrow keys to highlight files and press the enter key to select them. You can select up to six(6) videos and or pictures from one screen to copy, move or delete at one time. TIPS It is not recommended that you use the internal hard drive for long term storage. You should make it a practice to do regular backups and transfer your videos and pictures to an external storage device or office/home computer.
-
Page 21: To Copy, Move And Delete Videos And Pictures
5 Using the vCam-5 Control Module To View Pictures: Press the F10 Menu to bring up the “File” menu. Use the Up/Down arrow keys to scroll to and select the Pictures or the All Files sub menu and press Enter. Now use the Up/Down arrow keys scroll to and highlight the Picture file to view. Note that after a few seconds a “Picture Preview” screen appears in the upper right corner of the screen showing the file name and picture size. Use the Right arrow key to move to the next sub menu where you can scroll Up/Down and select to Play, Copy, Move or Delete the video file. Select Play and the Picture will appear full screen on the LCD. Use the ESC key or Left arrow to return to the main menu. To Copy, Move and Delete Videos and Pictures Use the F10 Menu key to open the “File” menu. select files or actions. Use the Up/Down arrow keys to to move through the various menu sections. Use the Left/Right arrow keys To select multiple files to copy, move or delete, highlight the file and press the Enter Key to check off multiple files . Note that you can only copy, move or delete 6 files at one time on the same file page. Pressing the ESC key at any time brings you back to the previous menu selection and main menu. -
Page 22: About Video Codecs And Media Player Settings
5 Using the vCam-5 Control Module About Video Codecs and Media Player Settings 5.4.1 AVI Video Format Audio Video Interleaved (also Audio Video Interleave), known by its initials AVI, is a multimedia container format introduced by Microsoft in 1992. AVI files can contain both audio and video data in a file container that allows synchronous audio-with-video playback. Because this file format was developed by Microsoft; the AVI video format will play in Microsoft’s Windows Media Player as well as other media players. 5.4.2 Getting Codecs If an AVI video file will not play or plays as an audio file with video, it may be because you do not have the appropriate codecs installed on your computer. The video and audio tracks in a file have been "encoded" or "coded", and must be “decoded” in the right way in order to play the file back. This is why a Codec is needed (Coder / Decoder). A media player, such as WMP (Windows Media Player) may require a specific codes to be installed in order to play a specific type of video file. When videos are transferred from the control module to a USB thumb drive or SD Card, a compressed folder is added to the USB thumb drive or SD card containing software named “MediaPlayPlus”. Installing MediaPlayPlus to your Windows PC will add new features to Windows Media Player and add the codecs which are necessary to play the AVI file. Specific AVI codecs can also be downloaded from the DivX website... -
Page 23: Other Media Players
5 Using the vCam-5 Control Module If “Windows Media Player” is not shown in the “Choose Default Program” choices then you will have to use the “browse” function to manually add the programs “executable” (.exe) file in “C:\Program Files”. This option requires an advanced knowledge of the Windows operating system. Consult your local IT department if needed. 5.4.4 Other Media Players There are several free video players available for download on the internet. These video players allow some advanced features that Windows Media Player may not have. Such as playing several videos at the same time to compare them, and the facility to play multiple video formats. You can find these by doing an internet Search on “Video Players” or “AVI Video Players”. A few of the more popular players are: • The KM Player http://www.kmpmedia.net/ • VLC Player http://www.videolan.org/ • DivX Player http://www.divx.com/ Note: Vivax-Metrotech does not provide technical support for any of these players or Windows Media Player. Consult the manufacturer or your local IT department for technical support. Text Writer (Tilter) The Text Writer feature allows the operator to add descriptive text that is recorded over videos and shown on snapshots. This descriptive text is usually shown at the start of an inspection and at the end. It can also be shown and recorded at certain points along the video where needed. The control module allows for 20 pages of 8 lines with 24 characters per line to be saved in memory and later recalled for use. NOTE Note that if the text writer’s text is shown on the control module screen it will be recorded and also show up in snapshot pictures. -
Page 24: Keyboard Function Keys For Text Writer
5 Using the vCam-5 Control Module 5.5.1 Keyboard Function Keys for Text Writer Keys Function Description Step Back and Clear Text Steps back one menu step and also clears all text from the current screen Help/Info Help and information regarding icons and buttons On Screen Display Show and hide the Time/Date stamp and Distance Out measurement on screen Ctrl-F2 Change the font color of the Time/Date stamp and Distance Out OSD text Color (on screen display) measurement Ctrl-F3 Text Writer On/Off... -
Page 25: Control Module Connection By Wifi
5 Using the vCam-5 Control Module Launch Internet Explorer web browser. In Internet Explorer, go to; Tools, Internet Options, Security Tab, iii. Select “Trusted Sites” In the “add this website to the zone”, vi. type in the control module’s IP address of 192.168.1.108 vii. Select “Add” viii. Un-check the check box for “Require server verification (https:for all sites in this zone) and select close. Type the control module’s IP address of 192.168.1.108 into the web browser’s URL and press enter or the “go” arrow. Note that it is not necessary to type in www or http:// If prompted by Internet Explorer, allow the “ActiveX” controls and application to run and install. Depending on the browser’s security settings, the computer’s ActiveXcontrols permissions may need to be altered by changing them to either “Allow” or “Prompt”. Please consult your local I.T. department or network administrator if you have questions concerning ActiveX controls, or visit the Microsoft website for more information. If a dialog box pops up asking for a user name and password, use; Username: admin Password: 12345678 5.6.2 Control Module Connection by WIFi Establishing a WiFi Connection to the control module in Windows 7, Vista and XP. -
Page 26: Internet Explorer "Live View" Browser Interface
5 Using the vCam-5 Control Module Internet Explorer “Live View” Browser Interface Having established the Internet Explorer Live View Browser Interface, these features are available • stream live video to computer • playback recorded videos • view pictures • record video • take snapshots directly to a computer’s hard drive • download, copy, move or delete files on the control module’s hard drive or on any USB thumb drive or SD card which is connected to the control module. Fig 1.0 Features of the interface: Use this to view the videos and pictures on the control module’s Hard drive access hard drive. - Page 27 5 Using the vCam-5 Control Module Function Description Download files To download a video or picture from the control module, right-click on the video icon in the file list and select download. The video or picture will be downloaded to the folder which has been set as the default. (fig 1.1) View live video To view live video click the “live video” icon (4) in the interface. If connected by Ethernet cable or Wi-Fi live video will appear. (fig 1.0) Play videos To play a video in the control module, right-click on the video icon in the file list and select “play”. The video player section will appear, playing the selected video. (fig 1.0 and 1.2) While recording live video or viewing video play back, press the red recording icon to start Recording and taking pictures recording video to the default drive. Press the red recording icon again to end the video recording and save the video. (icon 8 in fig 1.0) To capture a still image of live video, or video being played, back press the camera icon .(icon 9 in fig 1.0) Adjusting screen To adjust the LCD color settings, press the “LCD settings” icon (icon 10 in fig 1.0) and...
-
Page 28: Cable Reels
5 Using the vCam-5 Control Module Cable Reels The cable reel is used to store and deploy the pushrod cable. There are two (2) sizes of cable reels – the Type-CP “Standard” Reel is the larger reel and can accommodate up to 400ft (120m) of 12mm push rod. The Type-CP reel can be used either in the vertical upright position or on its side in a horizontal position. The Type-M2 “Mini” Reel is a smaller reel and can house up to 200ft(60m) of 10mm pushrod cable. All Cable Reels are supplied with the following: Interconnect Cable Pipe Insertion Sleeve 5.8.1 Type-CP “Standard” Reel Control Module Mounting Blocks Cage Friction Brake Cage Locking Brake Wheels Keyboard Resting Block Pushrod Cable Sonde Coil Spring Termination Assembly Rubber Feet Horizontal Position Legs Counter and slip ring assembly and serial number label... -
Page 29: Type-M2 "Mini" Reel
5 Using the vCam-5 Control Module 5.8.2 Type-M2 “Mini” Reel Cage friction brake Cage locking brake Pushrod cable Sonde coil Spring termination assembly Cart frame Pushrod cable cage Interconnect cable Counter and slip ring assembly and serial number label Cable retrieval hooks WARNING The friction brake should always be partially applied to slow down cable deployment. To avoid injury, great care should be taken when stopping the cable from unwinding. 5.8.3 Pushrod Cable Construction - The Pushrod Cable used on both reels is made up of a fiberglass rod surrounded by wire... - Page 30 5 Using the vCam-5 Control Module When pushing the rod, try to grip the rod as close to the point of entry as possible. Never stand using your weight to push the pushrod into a pipe. Correct way to deploy pushrod, close to entry point. Wrong way to deploy pushrod which will result in kinked rod. When possible, run water down the pipe to help lessen the friction between the camera head, pushrod and the pipe. Use the Pipe Insertion Sleeve wherever possible to prevent the pushrod from scraping on the mouth of the entry point. When deploying through a manhole, the target line may be a few feet deep, then a “tiger tail” should be used to prevent the pushrod from being abraded against sharp corners. Use a Pipe Insertion Sleeve to prevent the pushrod When your entry point is in a manhole several feet from rubbing against sharp edges down, use a tiger tail to prevent the pushrod from rubbing against sharp edges The pushrod can travel through multiple 45, 90 degree bends, and ”Y”s. But never use excessive force to try and get through a P-trap or Tee, if there is a large amount of resistance. Be extra careful in Tee-entries not to...
- Page 31 5 Using the vCam-5 Control Module Camera in a 4” pipe with no skid. Camera in a 4” pipe with a 3” A specialty skid with additional lighting used in a 14 inch pipe. O.D. skid Page 28 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343...
-
Page 32: Camera Heads
6 Camera Heads Camera Heads Camera Head Range Model D34-C D46-C D25-M D34-M 3-6in 4-8in 1-4in 3-6in Target Lines Type-CP Type-CP Type-M2 Type-M2 Fits Reels Installing the Camera Head 6.2.1 Pre Check the Camera and Connection The following should be checked and tested before installing the camera head. O-Rings - visually check for wear, damage and deformation. Replace if you have any doubts. • Apply silicon grease before installing the camera head. Front Lens Assembly • Visually check for chips and cracks around both the clear sapphire lens and the poly carbon lens which covers the camera LED’s. This visual inspection is better done with the camera lights turned all the way up. -
Page 33: Removing The Camera Head
6 Camera Heads Feed the coiled cable, wire lanyards thorough the spring allowing for enough room to work. Carefully connect the coiled lead to the camera taking note of a) above. Attach the wire ropes in the eyelets and screw together using the screw collar. To prevent twisting around the wire lanyards, turn the camera head approximately 6 full counterclockwise turns before screwing camera onto the spring, Hand Tighten Only! 6.2.3 Removing the Camera Head To dismantle the camera head, use only camera removal tool provided. To dismantle the camera head, attach the removal tool as shown in picture below and turn the camera head counter clockwise. After the head is unscrewed completely from the collar, unscrew the securing collar on the camera connector. NOTE Clean and grease the O–rings of the camera head regularly to ensure the seal remains water tight. -
Page 34: Termination Parts And Camera Heads
6 Camera Heads Termination Parts and Camera Heads Picture Part Number Description Comments Camera Removal Tool Comes with the control 3.02.01.000209 module Coiled Cord O-Ring, 2 required at each end of the 3.02.05.000007 17mm x 1.5mm coiled cord assembly Camera Body O-Ring, Located in base of camera 3.02.05.000017 15mm x 1.5mm below 4 pin connector Coiled cable assembly, Fits D46 and D34-C cameras 2.104.24.00004 12mm Standard Coiled cable assembly, Fits D46 and D34-C cameras 2.104.24.00005 12mm Short Coiled cable assembly, Fits D34-M camera 2.104.25.00003 10mm Standard Coiled cable assembly, Fits D25-M camera 2.104.23.00003 D25 Standard Coiled cable assembly, Fits D34-M camera... -
Page 35: Locating The Position Of The Camera Head
6 Camera Heads Camera Heads Part Number Description Comments D34-C NTSC Video Format 1.109.02.00001 D34-C PAL Video 1.109.02.00002 Format For use with Type-CP Reel with 12mm Pushrod and Termination D46/SL-C NTSC Video Format 1.104.06.00003 D46/SL-C PAL Video 1.104.06.00004 Format D25-M NTSC Video For use with Type-M2 Reel Format 1.104.29.00001 with 10mm Pushrod and D25 D25-M PAL Video 1.104.29.00002 Termination Format D34-M NTSC Video For use with Type-M2 Reel 1.109.06.00001 Format with 10mm Pushrod and 1.109.06.00002 D34-M PAL Video 10mm or D25/D33 Dual Format Termination Locating the position of the camera head Distance Counter - The on screen distance counter in the vCam-5 control module provides a good estimate... -
Page 36: Skids
Skids Skids Types of Skids Camera Model D25-M D34-M D34-C D46-C Skid Model Standard D25 Standard D34 Standard D46 1.3” (33mm) 1.77” (45mm) 2.4” (61mm) Skid O.D. 2” (50mm) & 3” 3” (75mm) 4” (100mm) Target Pipe Size (75mm) Skid Model Pipe Spyder Pipe Spyder 4” (100mm) 4” (100mm) Skid O.D. -
Page 37: Skid Installation
Skids Skid Installation There are 3 different methods of installing camera skids:Setscrews which tighten into the side of the camera housing;Spring Mount which attach to the termination springs and Clamp On which clamp around the camera housing. 7.2.1 Removing the Camera Head 1. Use a hex key to back out the 3 setscrews so that the camera head will slide un-obstructed into the skid. 2. Slide the camera head into the skid until the head is flush with the front of the skid. 3. Use a hex key to secure the skid to the camera head. NOTE: DO NOT OVER TIGHTEN THE SCREWS AS IT MAY RESULT IN STRIPPING THE SCREW THREADS OR DAMAGE TO THE CAMERA HEAD 7.2.2 Spring Mount Skid Installation Toolsneeded: Small flat screwdriver and hex wrench to remove ball skid 1. Remove Ball Skid from camera head. Add a retaining ring followed by a Pipe Spyder to the push rod at the rear of the termination - retaining ring first make sure that the Pipe Spyder’s flat section faces the retaining ring. Slide the retaining ring and Pipe Spyder to Squeeze the Pipe Spyder together and apply the middle section of the spring where the coil the retaining ring. Use a small flat screwdriver if spaces are wider. necessary. Page 34 of 40 info@wctproducts.com | 13309 Beach Ave. -
Page 38: Clamp-On Skid Installation
Skids Rotate the Pipe Spyder counter clockwise to Follow steps 4 and 5 above but this time move it to the desired position at the rear of applies the Pipe Spyder first and then the the spring. retaining ring over the camera head and rotate into place by turning clockwise. 7. Replaceballskid Note: Use two (2) or three (3) Pipe Spyders depending on the spring length and or application. 7.2.3 Clamp-On Skid Installation 1. Use a hex key and hex socket loosen the screw so that the camera head will slide un-obstructed into the skid. 2. Slide the camera head into the skid until the head is flush with the front of the skid. 3. Use a hex key to secure the skid to the camera head. NOTE: DO NOT OVER TIGHTEN THE SCREWS AS IT MAY RESULT IN STRIPPING THE SCREW THREADS OR DAMAGE TO THE CAMERA HEAD Page 35 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343... -
Page 39: 7.2.4 Type "B" Clamp-On Skid Installation
Skids 7.2.4 Type “B” Clamp-On Skid Installation Introduction Type “B” Skid is used to keep the camera head centered in pipes and off the floor avoiding debris and obstructions. The Type “B” Skid has adjustable settings for use in pipe diameters from 8” to 15”. When the skid is completely collasped it can be used in 8’’ pipes. The Type “B” Skid will work with the D46/SL camera attached to a 12mm termination spring. This adjustable skid works best in straight run applications such as running from manhole to manhole. Wheels Adjusting Arms Diameter Adjustment Nut Light Kit Groves Light Kit Mounting Nut Socket Head Cap Screws Type “B” Skid Installation Tools Needed • 2mm Hex Key • 8mm Hex Key Installing the Type “B” Skid 1. Use a 2mm hex key to remove the red protective skid from the D46/SL camera. 2. Slide the camera head into the skid until the head is flush with the front of the skid. 3. Use an 8mm hex key to secure the skid to the camera head. - Page 40 Skids Type “B” Light Kit Light Kit Mounting Nut Battery Cap On/Off Switch Battery Tube 1. Remove battery caps and on/off switch (3), insert 3 fresh AA alkaline batteries, positive end first into battery tubes, replace battery caps and on/off switch. 2. A lign light kit battery tubes with light kit groves on skid. 3. Use even pressure to push the light kit into place. 4. Hand tighten the light kit mounting nut (1). Page 37 of 40 info@wctproducts.com | 13309 Beach Ave. Marina del Rey, CA 90292 | Phone: 800-WCT-PROD (800-928-7763) | Fax: 310-306-9343...
-
Page 41: Accessories
Accessories Accessories Skids Description Picture Part Number Standard D25 3.02.01.001001 Standard D34 2.109.02.00004 Standard D46 2.104.06.00013 Pipe Spyder 2.104.20.00017 (for D25-M camera) Pipe Spyder 2.104.20.00015 (for D34-M cameras) Pipe Spyder 2.104.20.00014 (for D34-C, D46-C cameras) 2.25” (58mm) Guide 2.109.02.00013 3” (75mm) Guide 2.109.02.00014 100-402-004 Type “B” Type "B" Light Kit 2.104.05.00003 Drip Bag Use drip bags when working indoors to help prevent water and debris from falling off the pushrod onto a floor... -
Page 42: Insertion Sleeve
Accessories Type-CP Standard Reel Drip Bag 3.02.10.000061 Insertion Sleeve Use the insert sleeve to help prevent scraping of the pushrod at the access point. Description Picture Part Number Insert Sleeve 3.02.11.00002 Interconnect Cables A longer interconnect cable is available to allow more separation between the control module and reel. Description Picture Part Number 12 foot interconnect which 2.104.16.00009 comes with vCam-5 series all reels Extended 26 foot interconnect 2.104.01.00021 cable. -
Page 43: Troubleshooting
Troubleshooting Troubleshooting PROBLEM: Unit will not turn on. No power. CHECK: 1. Check to see that the fuse is installed. If the fuse is not installed then the unit will not charge your battery. 2. Try using mains current and not battery to turn on the unit. If the unit does power on with mains current then your battery is not charged and that may be the reason it will not power on. 3. When the unit is charging see if the battery icon on the front panel is glowing red, or if turned on that you see a lightning bolt in the battery icon. PROBLEM: No picture CHECK: 1. Check that both ends of the interconnect cable are plugged in. 2. If the camera has LED lighting then remove it and plug into the camera test port. 3. Check both ends of the coiled cable in the spring. With the camera connected and powered on move the cable at the ends to see if the loss of video is intermittent. PROBLEM: Not recording: CHECK: 1. Check the battery level. When the battery is low the unit may not have enough power to record. 2. Check available disk space on the HDD, USB or SD card. 3. Check your default storage setting. PROBLEM: Sonde not working. CHECK: 1. Check the battery level. When the battery is low the sonde may not operate. 2. Check that the sonde frequency in the control module matches that of the sonde locator. PROBLEM: Keyboard not functioning. CHECK: 1. - Page 44 Notes: __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ Disclaimer: Product and accessory specification and availability information is subject to change without prior notice. Toll-Free: 800-WCT-PROD (928-7763) Local Phone: 310-822-5212 Fax: 310-306-9343 Email: info@wctproducts.com Address: 13309 Beach Ave. Marina del Rey, CA 90292 Page 41 of 40 info@wctproducts.com | 13309 Beach Ave.
