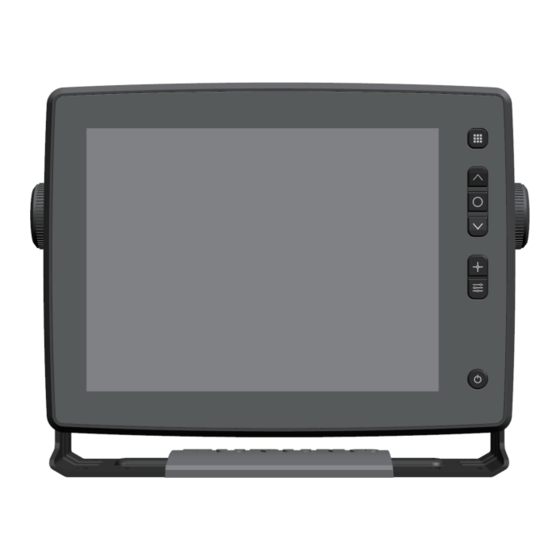

10"/12" FLEX FUNCTION DISPLAY
Model
The screenshots shown in this Operator's Guide are taken in the landscape format. The display layout is different in the portrait format.
Key operation is available in the portrait format.
Touch screen and key operation
Tap
- Select menu item.
- Move the cursor to tapped location.
- Tap the button shown on the
screen and set.

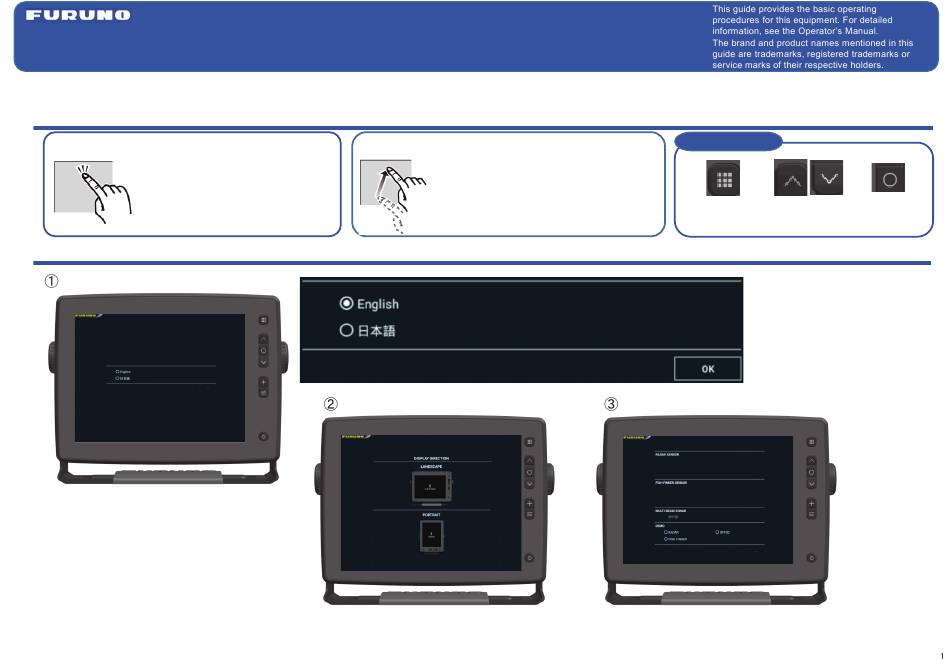

Setup operations (When turned on for the first time.)
Language selection menu appears.
SFD-1010/1012
Drag/Swipe
- Move the cursor.
- Scroll the menu.
- Select a range.
- Adjust the setting with the slider bar.
Display selection menu appears.
- Tap LANDSCAPE or PORTRAIT.
Operator's Guide
Sensor selection menu appears.
- Tap the sensor to use (RADAR SENSOR /
FISH FINDER SENSOR / MULTI BEAM SONAR).
Key Operation
Open/Close
Move cursor.
menu.
menu item.
- Tap English.
- Tap OK.
Confirm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furuno SFD-1010
Summary of Contents for Furuno SFD-1010
- Page 1 10"/12" FLEX FUNCTION DISPLAY SFD-1010/1012 Operator’s Guide Model The screenshots shown in this Operator’s Guide are taken in the landscape format. The display layout is different in the portrait format. Key operation is available in the portrait format. Touch screen and key operation...
- Page 2 When Radar Sensor is selected Menu Operation Short icon press (shown on the top-left of the screen) to show the InstantAccess bar InstantAccess bar The contents of the BRILLIANCE Setting menu appears. menu are common to Radar Close the menu by pressing again. sensor, Fish Finder sensor and Multi Beam Sonar.
- Page 3 Other key operations, function box and display Change the Range TLL Output and point Functions will differ according to the menu settings. Zoom out Output the current latitude and longitude position TLL Output of the selected target to external equipment. Zoom in Record and display the current cursor Fixed Mark...
- Page 4 Adjustment of Gain, Sea and Rain When [Manual] is selected: Use the slider bar below selected item for adjustment. When [Auto] is selected: Adjustment is not available; the slider bar is grayed out. The slider bar can be moved with the following two methods, in addition to tapping it.
- Page 5 When Fish Finder Sensor is selected Menu Alarm Icon Gain Settings : Fish Alarm : Depth Alarm G: 0.0 10 Manual Mode : Temperature Alarm : Speed Alarm G: AF Auto Mode: Fishing Range G: AC Auto Mode: Cruising AUTO: (Auto Mode) MANUAL: (Manual Mode) Picture Advance Speed Output Power...
- Page 6 How to display fish size Bottom Discrimination [Menu] [DISPLAY] [ACCU-FISH] [ACCU-FISH] [On] [Menu] [DISPLAY] [Bottom Disc.] Striped Solid Circle Square [Type View] Graphic or Probability Fish Symbol (Selectable from four types) Large fish size Graphic The symbol size changes with fish size. (more than 50 cm, or more than 20 inches) Bottom...
- Page 7 When DFF-3D is selected Menu Popup 3D History Mode InstantAccess bar GAIN 0 Auto Fish Alarm Icons appear here. Auto Botto Pinch Operation Zoom in and out with pinch operation are available in the 3D History and Cross Section modes. Zoom In Zoom Out In addition to the 3D History display shown above, the modes described below are available.
- Page 8 Screen 1～7 （Popup menu, Factory default) Screen 5 Screen 6 Screen 7 GAIN 0 GAIN 0 GAIN 0 Auto Auto Fish Fish Auto Auto Bottom Bottom Dual Screen Mode Triple Screen Mode Quad Screen Mode Screen1 Screen 3 GAIN 0 GAIN 0 Cross Section Mode Single/Triple Fish Finder Mode...
