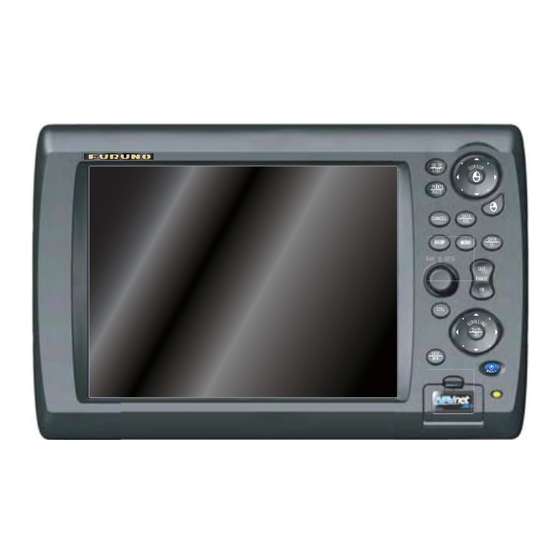

Furuno NAVnet 3D MFDBB Installation Manual
  1. Manuals
  2. Brands
  3. Furuno Manuals
  4. Monitor
  5. NAVNET 3D MFDBB
  6. Installation manual
Furuno NAVnet 3D MFDBB Installation Manual

Furuno NAVnet 3D MFDBB Installation Manual

Multi function display
Hide thumbs Also See for NAVnet 3D MFDBB:
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY INSTRUCTIONS ............................................................................ i
SYSTEM CONFIGURATION ....................................................................... ii
EQUIPMENT LISTS.................................................................................... iii
1. MOUNTING ............................................................................................ 1
1.1
Mounting the Control Unit.............................................................................................1
1.2
Mounting the Processor Unit ........................................................................................7
2. WIRING .................................................................................................. 9
2.1
Processor Unit Wiring ...................................................................................................9
2.2
Control Unit Wiring .....................................................................................................14
3. SETTING UP THE EQUIPMENT ......................................................... 15
3.1
Setup for Single MFD in the Network ......................................................................... 17
3.2
Setup for Multiple MFDs in the Network .....................................................................28
PACKING LISTS...................................................................................... A-1
OUTLINE DRAWINGS............................................................................. D-1
INTERCONNECTION DIAGRAM ............................................................ S-1
Installation Manual
Multi Function Display
www.furuno.co.jp
MFDBB

Advertisement

Table of Contents
loading

Related Manuals for Furuno NAVnet 3D MFDBB

Summary of Contents for Furuno NAVnet 3D MFDBB

  • Page 1: Table Of Contents

    Processor Unit Wiring ....................9 Control Unit Wiring .....................14 3. SETTING UP THE EQUIPMENT ............15 Setup for Single MFD in the Network ................. 17 Setup for Multiple MFDs in the Network ..............28 PACKING LISTS..................A-1 OUTLINE DRAWINGS................D-1 INTERCONNECTION DIAGRAM ............S-1 www.furuno.co.jp...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS The user and installer must read the appropriate safety instructions before attempting to install or operate the equipment. Indicates a potentially hazardous situation which, if not avoided, WARNING could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, CAUTION may result in minor or moderate injury.

  • Page 3: System Configuration

    SYSTEM CONFIGURATION RADAR SENSOR RADAR SENSOR DRS2D/DRS4D DRS4A/DRS6A/DRS12A/DRS25A DRS4A DRS25A DRS6A DRS12A POWER SUPPLY UNIT PSU-013* 12-24 VDC* MONITOR MU-155C/170C, etc. AIS RECEIVER, HEADING SENSOR or VIDEO IN (CCD EXTERNAL BUZZER CAMERA, MAX. 4) GPS NAVIGATOR LINE OUT GP-320B/330B (SPKR, ETC.) PROCESSOR UNIT MPU-001 LINE IN (MIC,...

  • Page 4: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Type Code No. Remarks Processor Unit MPU-001 Control Unit MCU-001 Choose one. Display Control Unit DCU12 Installation Materials CP19-00600 000-011-664 1 set For MPU-001, Cable, CP19- 00601* CP19-00700 000-011-663 1 set For MCU-001, Choose one. cable, CP19- 00701* CP19-00800...
  • Page 5 Name Types Code No. Remarks Cable Assy MJ-A7SPF0007-050C 000-154-028-10 5 m, NMEA0183, w/7P connector MJ-A6SPF0016-005C 000-159-689-11 For FAX-30, ETR6N/10N connection MOD-Z072-020+ 000-167-175-10 2 m, LAN MOD-Z072-050+ 000-167-176-10 5 m, LAN MOD-Z072-100+ 000-167-177-10 10 m, LAN MOD-Z073-030+ 000-167-171-10 3 m, for PC connection M12-05BM+05BF-010 000-167-962-10 φ6, 1 m, NMEA 2000...

  • Page 6: Mounting

    1. MOUNTING Mounting the Control Unit There are two types of control units: Control Unit MCU-001 and Display Control Unit DCU12. The former is the keyboard type, and the latter has an LCD display and keyboard. When selecting a mounting location for the control unit, keep the following in mind: •...
  • Page 7 1.1.1 Mounting procedure for control unit MCU-001 The control unit MCU-001 is designed to be flush mounted in a console or panel. 1. Prepare a cutout in the mounting location using the template sheet (supplied) for the MCU- 001. 2. Remove the front panel from the MCU-001 by grasping it at its sides and pulling it towards you.
  • Page 8 2. Pull the remover to raise the panel slightly. 3. Similarly use the remover to raise the panel at the right-side notch. 4. Insert the remover to the space at the one end of the unit, and pull it to raise the panel slightly. Repeat this procedure for the opposite side.
  • Page 9 1.1.2 Mounting procedure for display control unit DCU12 The Display Control Unit DCU12 can be flush mounted in a console or panel, or mounted on a desktop or the overhead. Flush mounting 1. Prepare a cutout in the mounting location using the template sheet (supplied) for the DCU12. 2.
  • Page 10 2. Pull the remover to raise the panel slightly. Do this for all notches on the lower side of the unit. 3. Insert the remover to the space at the one side of the unit, and pull the remover to raise the panel slightly.
  • Page 11 Desktop mounting Follow the procedures below to mount the DCU12 on a desktop. This method requires the hanger. 1. Attach a liner to each side of the DCU12. 2. Fix the hanger by using self-tapping screws (supplied). 3. Screw knob bolts into the DCU12, set it to the hanger, and tighten the knob bolts. DCU12 Liner Hanger...

  • Page 12: Mounting The Processor Unit

    Mounting the Processor Unit The unit can be mounted on the deck, a desktop or on a bulkhead. Select a mounting location considering the points below. • Select a location where temperature and humidity are moderate and stable. • Consider the lengths of the cables connected among the processor unit, radar sensor and con- trol unit.
  • Page 13 Bulkhead mounting Mark four fixing hole positions on the bulkhead. Screw in two 6x30 self-tapping screws at upper fixing positions, leaving 5 mm protruding. Set the processor unit to the screws and screw in two self-tapping screws at lower positions. Tighten all screws. 4 pcs.

  • Page 14: Wiring

    2. WIRING Processor Unit Wiring All wirings are terminated at the front of the processor unit. Display Control Unit DCU12 Network sounder, or External display IP camera, etc. (MU-155C/170C, etc.) Control Unit MCU-001 and/or DCU12 MOD-Z072 cable (2, 5, 10, 10 m) MOD-WPAS cable (3 m) (supplied with DCU) Radar Sensor or...
  • Page 15 POWER Fabricate the power cable (DPYC-6 or equivalent) as shown below. Unfasten four pan head screws to remove the power terminal cover, and then connect the power cable DPYC-6 to the power terminal (upper: +, lower: -). Reattach the cover. The maximum cable length should be with- in 5 m.
  • Page 16 NETWORK 1 to 4 The DIP switch inside the processor unit functions to enable/disable the network ports. The num- ber on each DIP switch corresponds to port number. Turn switches on for the connected ports.. Binding screw M4x8, 6 pcs. NETWORK ONLY MCU-001...
  • Page 17 Using DATA2 port (NMEA0183) To connect multiple NMEA 0183 equipment, use the cable assy FRUDD-18AFFM-L180 supplied. This cable has an 18P connector. The DATA 2 port on the back of the processor unit. Solder wires of the FRUDD-18AFFM-L180 and the wires from sensors. The wire arrangement is shown below. Pin No.
  • Page 18 Video interface devices (analog type) Maximum four camera/video devices can be connected. For this connection, the following cable is necessary (local supply). • BNC connector • 3C2V (Japan Industrial Standard (JIS), or the equivalent) coaxial cable (impedance 75Ω) Insulator Shield Vinyl sheath Conductor S = 0.19 mm...

  • Page 19: Control Unit Wiring

    Display Control Unit Wiring Connect the MOD-WPAS0001-030+ cable (from the processor unit) to the LAN connector at the rear of the display control unit. This cable has 3 m in length. If you need longer cable, use the op- tional joint box TL-CAT-012 and cable assy MOD-Z072 cable (2, 5 or 10 m). For DCU12, the con- nection of DVI cable is also necessary.

  • Page 20: Setting Up The Equipment

    3. SETTING UP THE EQUIPMENT This chapter shows you how to set up your system according to the equipment you have connect- ed. To do this more easily the Installation Wizard is provided. It has all the items necessary for setting up your system.
  • Page 21 Flow chart when more than one MFD are installed DHCP/installation setting start. Installation setting Designate one MFD as start. DHCP server. Set language on client MFDs. Turn on server MFD. Turn on all MFDs. Set client MFDs DHCP server item to Disable.

  • Page 22: Setup For Single Mfd In The Network

    Setup for Single MFD in the Network When you have an MFD in the network, do the following procedures. Language, DHCP server setting 1. Press the power switch on the control unit to power the system. In a few minutes, the Installa- tion Wizard starts, showing the display below.
  • Page 23 The following menu appears. DHCP server setting Power syncronization enable Dual head mode DVI Resolution 3. Confirm that the DHCP server setting pull-down menu shows enable. 4. Choose enable at the Power synchronization pull-down menu, and click the Exit button. The power is turned off automatically.
  • Page 24 Own tab-NMEA 2000 dialog box 8. Check the PGNs (Parameter Group Number, NMEA 2000 messages) to output from the NMEA 2000 port, and click the Next button. Own tab-NMEA 0183 port 1 through 3 dialog boxes Set up the NMEA0183 data ports. 9.
  • Page 25 10.Choose how to indicate waypoints, Name or ID No., at the WPT ID Format pull-down menu. 11.At the L/L format dialog box, choose how many digits (seconds) to display after decimal point in latitude and longitude. 12.Choose the NMEA 0183 version to output, Ver 1.5, Ver 2.0 or Ver 3.0, at the Output format pull-down menu.
  • Page 26 Menu item Description Disable Satellite Every GPS satellite is broadcasting abnormal satellite number(s) in its Alma- nac, which contains general orbital data about all GPS satellites, including those which are malfunctioning. Using this information, the GPS receiver automatically eliminates any malfunctioning satellite from the GPS satellite schedule.
  • Page 27 17.Choose the desired unit of length and width for the boat (ft, m) at the Length/Width unit pull- down menu. 18.Choose the unit of height for the boat (ft, m) at the Height unit pull-down menu. 19.Set the length of boat at the Boat Length pull-down menu. 20.Set the width of boat at the Boat Width pull-down menu.
  • Page 28 Global tab-Nickname dialog box All equipments in the NavNet 3D system are assigned respective nicknames. If you don’t like the preassigned nickname, you can change it here. Use the cursor pad to select location. Rotate the rotary knob to select character and push it to confirm selection. Repeat this operation to complete the nicknames.
  • Page 29 Global tab-Data Source dialog box The Data Source dialog box shows the sources of various nav data. In case of multiple sensors for a nav data item, for example, several position-fixing equipments, choose the sensor to use, with the pull-down menu. Item Description Setting...
  • Page 30 (Setting for DFF1,3) a) Click the Transducer Setup pull-down menu, and choose Model Number, TD-ID or Manual, according to the transducer connected. Model Number: Furuno’s transducer TD-ID: Airmar’s transducer w/TD-ID Manual: Transducers other than above b) If you choose Model Number at step a), click the High Frequency and Low Frequency pull- down menus, and choose the applicable model type.
  • Page 31 Model Number: Furuno’s transducer Manual: Transducers other than Furuno b) If you choose Model Number at step a), click the High Frequency and Low Frequency pull- down menus, and choose the applicable model type. For Manual, set the high and low fre- quencies with the respective pull-down menus.
  • Page 32 Radar Set the Radar dialog box according to the radar connected. 31.Click the Radar Source select pull-down menu, and choose the radar type connected, DRS RADOME or DRS OPEN. 32.Click the Antenna Height pull-down menu, and choose the height of the antenna above the waterline, among Under 10ft, 10ft-30ft or Over 30ft.

  • Page 33: Setup For Multiple Mfds In The Network

    Setup for Multiple MFDs in the Network When you have multiple MFDs in the network, designate one as the DHCP (dynamic Host Con- figuration Protocol) server. Then, confirm that applicable DIP switches connected MFDs on the internal hub to ON. 1.
  • Page 44 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN Telephone : +81-(0)798-65-2111 : +81-(0)798-65-4200 A : APR 2008 Printed in Japan All rights reserved. Pub. No. IME-44460-A *00016722210* *00016722210* (HIMA ) MFDBB...
