Summary of Contents for Lectrosonics UCR100

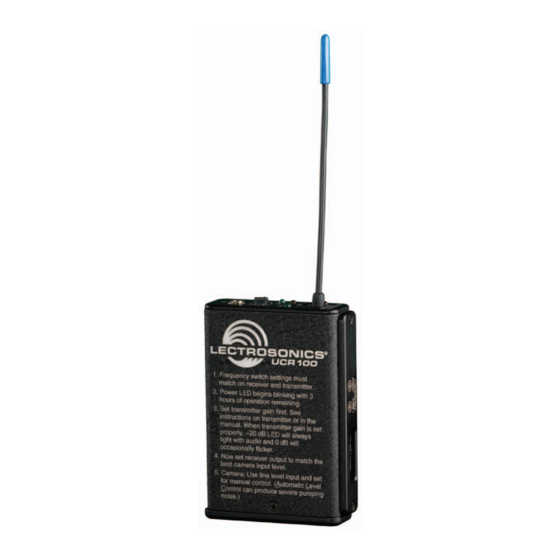

- Page 1 INSTRUCTION MANUAL UCR100 UHF Multi-Frequency Compact Receiver Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
- Page 2 UCR100 LECTROSONICS, INC.
-
Page 3: Table Of Contents
Compact Receiver Introduction Thank you for selecting the Lectrosonics multi-fre- quency, UCR100 Receiver. The UCR100 is the result of extensive engineering experience with the very latest microprocessor advancements and technology. The Lectrosonics 100 System Receiver and companion transmitter are designed expressly for the most discrim-... -
Page 4: General Technical Description
The frequency distortion to well below that of a conventional UCR100 Receiver uses 20 kHz FM deviation for ef- compandor. ficient use of the bandwidth and dual band companding for clean quiet audio. -
Page 5: Controls & Functions
Compact Receiver Controls & Functions Power LED Power ON/OFF Switch Antenna Frequency Select Switches (Under Door) RF LED Modulation LEDs Audio LEVEL Control Audio OUT Jack Battery Compartment Modulation LEDs IMPORTANT! When the battery voltage drops below 6 Volts, the power LED will remain off, The two modulation LED’s indicate the modulation but the other 3 LEDs will light up and a rush of (audio level) of the incoming signal and can be used for... -
Page 6: Audio Level Control
UCR100 Audio Level Control Attenuates the audio output level of the receiver to match the input requirements of the equipment with which it is used. The 3.5mm Mini output jack on the front panel provides an audio output at adjustable levels for low or high impedance, unbalanced inputs. -
Page 7: Operating Instructions
(hiss) along with the audio. small holes in the battery contact pad before inserting The UCR100 output was designed to drive camera a new battery. Insert the contact end of the battery first, line level inputs but can operate into camera MIC... -
Page 8: Troubleshooting
UCR100 Troubleshooting Before going through the following chart, be sure that you have a good battery in the receiver. The POWER LED should glow brightly. SYMPTOM POSSIBLE CAUSE NO POWER LED 1) Receiver switch in “OFF” position 2) Dead or weak battery... -
Page 9: Specifications And Features
Compact Receiver Specifications and Features Available frequencies: 537.6 to 608 MHz, 614 to 691.1 MHz (Blocks 21 through 26) Each unit operates on a single block. Number of frequencies per block: 256 in 100 kHz steps Channel spacing: 100 kHz Frequency control: Crystal Controlled Phase Locked Loop Sensitivity:... -
Page 10: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. Lectrosonics’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 11 Compact Receiver Rio Rancho, NM...
-
Page 12: Limited One Year Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item. - Page 13 UM100 UHF MULTI-FREQUENCY BELT-PACK TRANSMITTER OPERATING INSTRUCTIONS and trouble-shooting guide LECTROSONICS, INC. Rio Rancho, NM...
- Page 14 TABLE OF CONTENTS INTRODUCTION ....................3 GENERAL TECHNICAL DESCRIPTION ............4 CONTROLS AND FUNCTIONS ................6 BATTERY INSTALLATION ................... 8 OPERATING INSTRUCTIONS ................9 OPERATING NOTES ................... 9 ADJUSTING THE TRANSMITTER FREQUENCY ..........9 MICROPHONE CORD TERMINATION ............. 10 5-PIN INPUT JACK WIRING ................11 TROUBLESHOOTING ..................
-
Page 15: Introduction
Multi-frequency UHF Belt-Pack Transmitter INTRODUCTION Thank you for selecting the Lectrosonics UM100 multi-frequency, belt-pack transmit- ter. The UM100 combines over 80 years of engineering experience with the very latest components, in a design that addresses the most demanding professional applications. -
Page 16: General Technical Description
GENERAL TECHNICAL DESCRIPTION The UM100 transmitters are comprised of a number of functional sub-systems as shown in the block diagram below. GENERAL The 100 system uses 20 kHz wide deviation for a high signal to noise ratio. The transmitter circuits are all regulated to allow full output power from the beginning (9 Volts) to the end (6.5 Volts) of battery life. - Page 17 Multi-frequency UHF Belt-Pack Transmitter PRE-EMPHASIS/DE-EMPHASIS The signal to noise ratio of the 100 system is extended by using pre-emphasis (HF boost) in the transmitter and de- emphasis (HF roll off) in the receiver. Pre-emphasis and de-emphasis in an FM radio system usually provides about a 10 dB improvement in the signal to noise ratio of the system, but the high frequency boost in the transmitter must be removed in a purely complimentary manner or else the frequency response of the original audio signal will be altered.
-
Page 18: Controls And Functions
CONTROLS AND FUNCTIONS FREQUENCY 1.6MHz 100kHz LECTROSONICS UM 100 Frequency Adjust OFF ON LF Roll-Off Adjust AUDIO LEVEL 75 Hz –20 ANTENNA LF ROLL OFF INPUT JACK The input on the UM100 accommodates virtually every lavalier, hand-held or shotgun microphone available. Line level signals can also be accommodated. - Page 19 USE ONLY THE SCREW THAT IS SUPPLIED The circuitry is tightly packed into this unit. A longer screw will permanently damage the transmitter! Use only Lectrosonics PN:28528 which is a Phillips head, 4-40 x 3/16", FL100 screw. Rio Rancho, NM – USA...
-
Page 20: Battery Installation
BATTERY INSTALLATION The transmitter is powered by a standard alkaline or lithium 9 Volt battery. It is important that you use ONLY an ALKALINE or LITHIUM battery for longest life. Standard zinc-carbon batteries marked “heavy-duty” or “long- lasting” are not adequate. Ni-cad rechargeable batteries will only provide 1.5 hours of operation, or less, and will run down quite abruptly. -
Page 21: Operating Instructions
To gain access to these switches, slide the access door sideways with a fingernail. Note: With the UCR100 receiver, these switches also appear on the side panel of the receiver. You should always set the transmitter switches to match the receiver switch settings. -
Page 22: Microphone Cord Termination
MICROPHONE CORD TERMINATION TA5F Connector Assembly VIEW FROM SOLDER SIDE OF PINS 0.15" Heatshrink Tubing 0.3" Mic Cord Stripping Instructions Caution! Do not allow the shield wire to touch any metal part of the connector shell. The shield wire is the antenna on VHF models and poor operating range will result. -
Page 23: 5-Pin Input Jack Wiring
Low impedance microphone level input for dynamic microphones. Also accepts hand-held electret micro- phones provided the microphone has its own built-in battery. PIN 4 1K Ohm source load for non-Lectrosonics electret microphones. Use in conjunction with other pins to provide attenuation of high level input signals. PIN 5 High impedance, line level input for tape decks, mixer outputs, musical instruments, etc. - Page 24 Leaded capacitors: P/N 15117 Leadless capacitors: P/N SCC330P All Lectrosonics lavalier mics are already bypassed and do not need any additional capacitors installed for proper operation. BODY GROUND Caution - When wiring the connector, do not use the connector body for any electrical connections. A common mistake is to use the connector body as an audio ground.
-
Page 25: Troubleshooting
Multi-frequency UHF Belt-Pack Transmitter TROUBLESHOOTING Before going through the following chart, be sure that you have a good battery in the transmitter. It is important that you follow these steps in the sequence listed. SYMPTOM POSSIBLE CAUSE TRANSMITTER BATTERY LED OFF 1) Battery is inserted backwards. -
Page 26: Specifications And Features
SPECIFICATIONS AND FEATURES Operating frequencies: U.S.: 537.600 to 588.700 MHz and 614.400 to 793.500 MHz Europe: 537.600 to 862.000 MHz Frequency selection: 256 frequencies in 100kHz steps per 26MHz wide block Channel spacing: 100kHz (25kHz programmable) RF Power output: 100 mW (nominal) Frequency stability: +/- 0.001% Deviation:... -
Page 27: Service And Repair
There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS service department is equipped and staffed to quickly repair your equipment. In-warranty repairs are made at no charge in accordance with the terms of the warranty. Out of warranty repairs are charged at a modest flat rate plus parts and shipping. -
Page 28: Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
