START-UP AND OPERATION: CASE PLACEMENT / SERVICE VS. SELF-SERVICE SHELF SET-UP
1. Case Placement
•
Remove case from skid.
•
Before placing case on counter,
determine if the case will merchandize as
a front or rear-mounted case.
•
Base spacer has a notch at BOTH front
and rear for power cord to route from
EITHER side.
• See general spacer illustration on next
page.
2. Service Case Shelf Positioning
•
Shelves may be positioned in the "down"
position to merchandise as a service
case.
•
See illustration at right.
3. Self-Service Shelf Positioning
•
The shelves may be positioned in the "up"
position. This will allow the case to be
turned around and merchandise from a
rear mounted position.
•

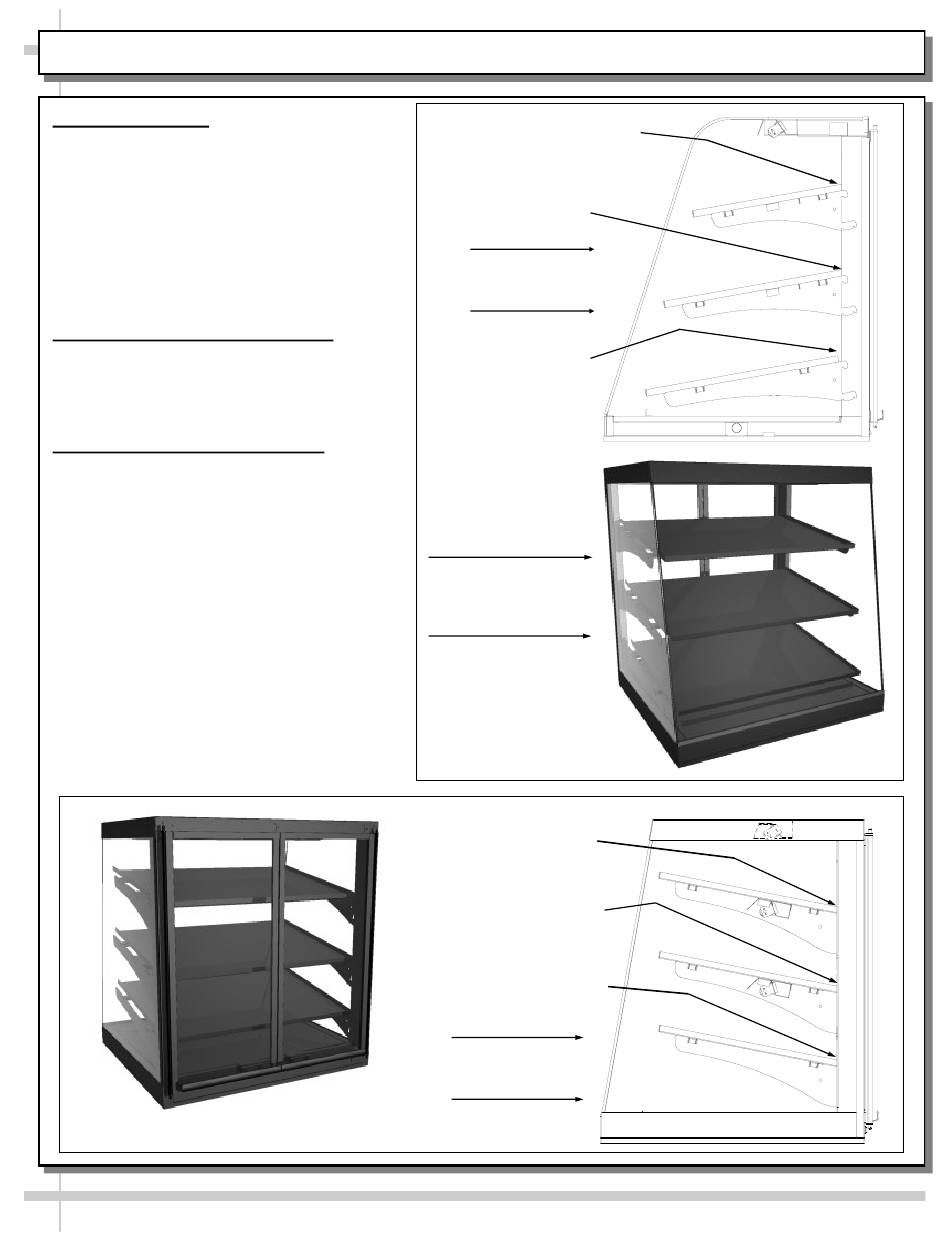

See illustrations below for views of
self-service vs. service display cases.
Model Displayed As Self-Service Case
No Open Slots
1 Open Slot
Service Case
Shelf Position
1 Open Slot
Model
Displayed As
Service Case
Move down 2 slots
from top position
Move down 1 slot
from middle position
Tilt up from
bottom slot position
Self-Servicel
Shelf Set-Up
