START-UP AND OPERATION, CONTINUED: BASE SPACER / POWER CORD LENGTH / CORD CLAMP
4. Base Spacer / Power Cord Length / Clamp

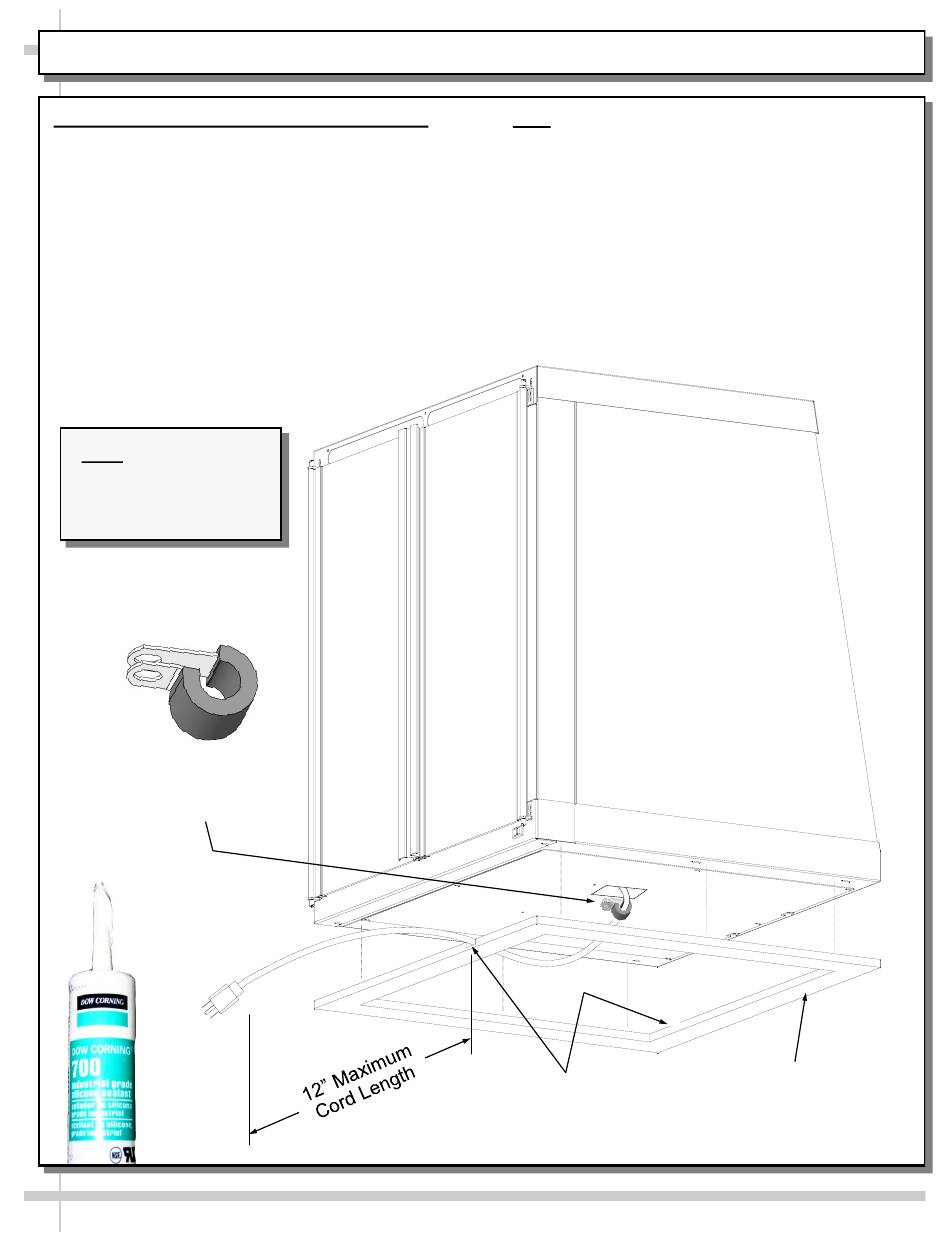

Locate base spacer in location to put case (cord notch
to be in direction of cord to exit).
•
Sit case on spacer carefully routing power cord
through either front or rear notch (as shown below).
• Cord to exit at rear doors side for service cases.
•
Cord to exit at front side for self-service cases.
•
Power cord can only have a 12" MAXIMUM length
from outer notch to plug (as shown below).
• Adjust cord length with cord clamp attached at
underside of base (as shown below). Tighten
clamp screw securely!
•
Remove inside deck pan and fasten base to spac-
er.
Note: Illustration may
not reflect every
feature or option of
your particular case.
Cord Clamp
(For Adjusting
Cord Length)
• Note: The National Sanitation Foundation (NSF®)
requires the following two steps be done before
this case can be used.
• 1. After case is in position, apply a steady bead of
industrial grade silicone sealant around the base
and counter top. Also, apply silicone sealant to notch
around cord.
• 2. Allow 24 hours for the silicone to dry before using
the case. Plug cord into a certified electrical outlet
with ground.
Route Power Cord
Through Either Front
or Rear Notch
5
Base Spacer
