SECTION 1 – Assembly, Installation & Operation
STAGE 1 Umbrella Location
1A) PLANNING THE UMBRELLA LOCATION:
Special care is needed when selecting the best location for your umbrella.
Some key points to keep in mind are:
Ensure that the location you have chosen has the umbrella in a position where it provides the best possible coverage
over the area that you want shaded.
Remember the SU7 has the ability to rotate 360° so if you wish to utilise this function ensure that you allow the necessary
space around the umbrella for this.

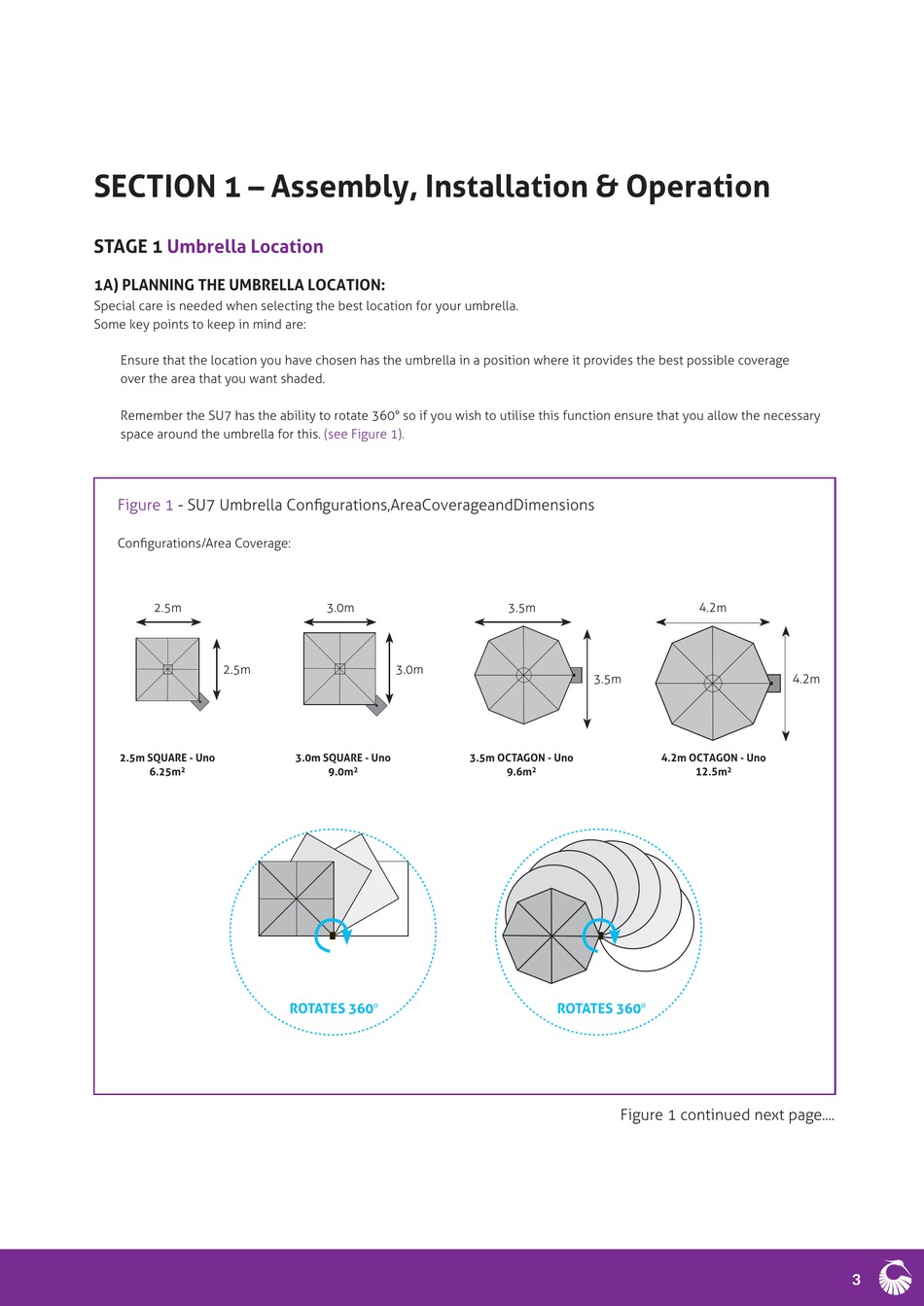

Figure 1 - SU7 Umbrella Confi gurations, Area Coverage and Dimensions
Confi gurations/Area Coverage:
2.5m
2.5m
2.5m SQUARE - Uno
6.25m 2
(see Figure 1).
3.0m
3.0m
3.0m SQUARE - Uno
9.0m 2
ROTATES 360º
3.5m
3.5m
3.5m OCTAGON - Uno
9.6m 2
ROTATES 360º
Figure 1 continued next page....
4.2m
4.2m
4.2m OCTAGON - Uno
12.5m 2
