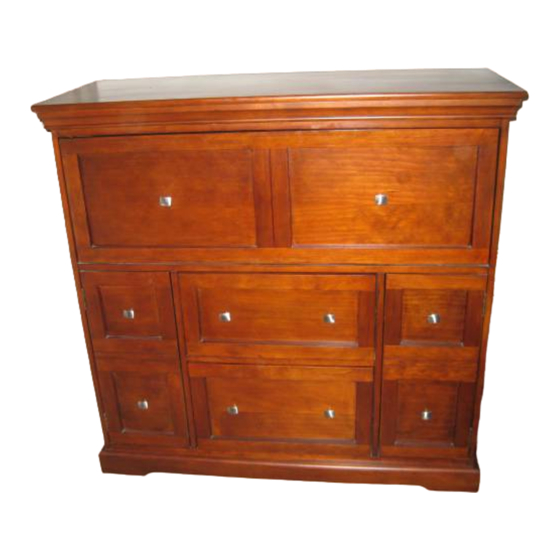

PRODUCT NAME: Large Eastman Secretary*
ITEM NUMBER: MO386
ASSEMBLED DIMENSIONS: 47"H x 48"W X 19 1/2"D
* Installed Power Strip is NOT a surge supressor/protector.
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
UPDATED: 1-12-2021
Prevent accidentally discarding small parts or
hardware. Retain all carton contents until assembly
and installation are complete.
Customer Service: 800-367-2810
Online: www.ballarddesigns.com
IMPORTED
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ballard Designs Large Eastman Secretary MO386
Summary of Contents for Ballard Designs Large Eastman Secretary MO386
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Large Eastman Secretary* ITEM NUMBER: MO386 ASSEMBLED DIMENSIONS: 47”H x 48”W X 19 1/2”D * Installed Power Strip is NOT a surge supressor/protector. Prevent accidentally discarding small parts or hardware. Retain all carton contents until assembly and installation are complete.
- Page 2 Assemble in location for intended use. Ltr. Qty. Hardware Included REQUIRED TOOLS: Phillips and Flat Head Screwdrivers Shelf Supports -Two person assembly suggested. Remove all parts, hardware and Letter Size File Bars protective packaging from carton and carefully arrange on a clean, level, padded surface.
- Page 3 Assemble in location for intended use. STEP 1: Open lower drawer and insert either Letter Size (B) or Legal Size (C) File Bars into notches along inside top edge. NOTE: Orient LETTER along drawer length. LEGAL along drawer depth. STEP 2: Secretary is equipped with Rotary Levelers under each corner which are accessed from INSIDE cabinet.
- Page 4 Assemble in location for intended use. STEP 3: Determine location for each Shelf (F) then insert Shelf Supports (A) into applicable pre-drilled holes along wall of each compartment. Carefully place each Shelf level upon supports. NOTE: Right compartment is designed with an opening for use with a CPU. If using compartment for housing a CPU, do not install Shelf or Shelf Supports.
- Page 5 WALL ANCHORING HARDWARE (ANTI-TIP) Ltr. Qty. Hardware Included Large Screw Small Screw WARNING Tip-Over Hazard Bracket Serious or fatal crushing injuries can occur from a furniture tip-over Prevent tipping accidents. Anchor your furniture. Retention Belt Installation: 1. Place furniture against wall at desired location then locate and mark a Wall Stud behind unit. 2.
