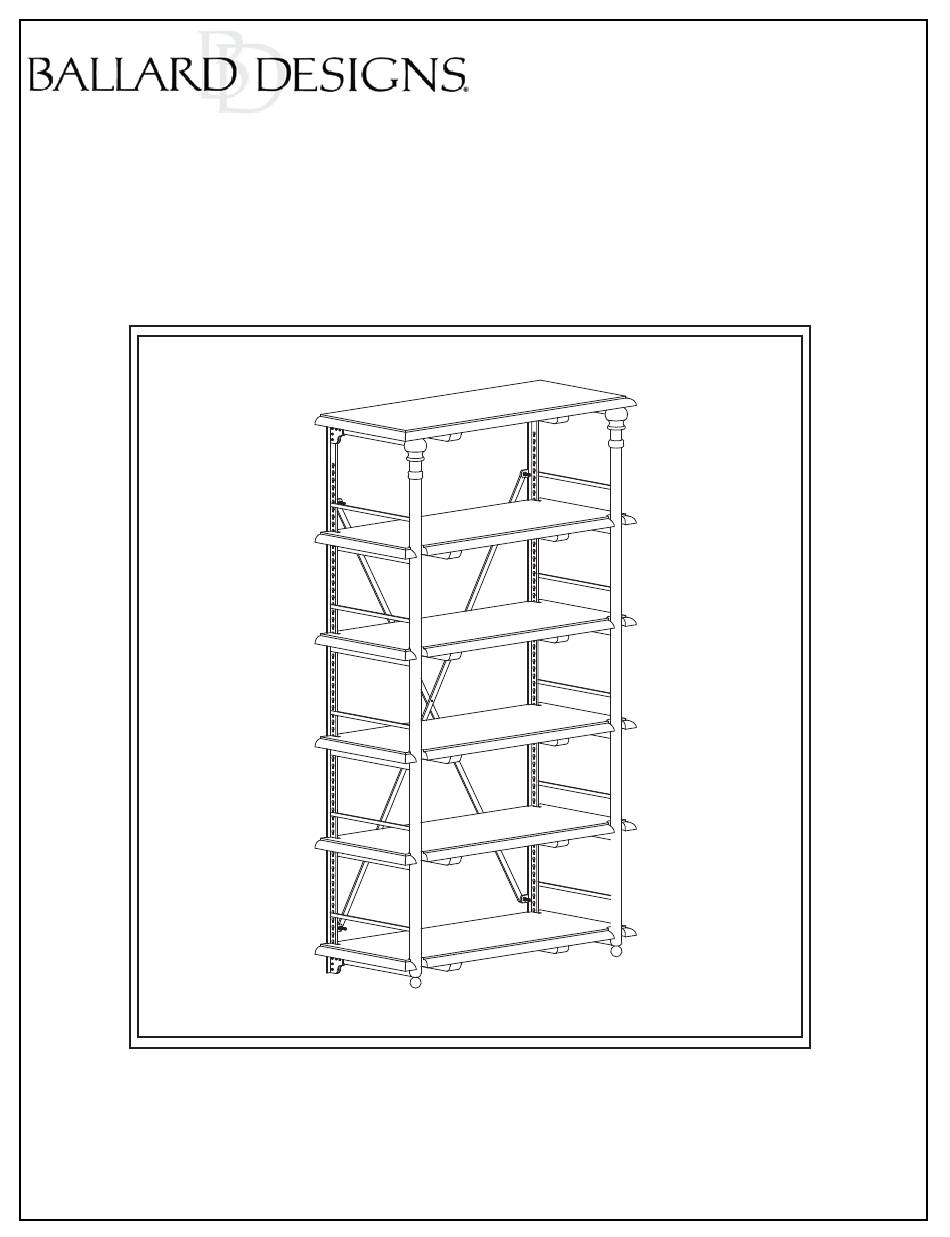

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Toulouse Tall Bookcase ITEM NUMBER: MV314 DIMENSIONS OF ITEM ASSEMBLED: 84"H x 42 1/2"W x 15 3/4"D PRODUCTS ARE NOT INTENDED MADE IN INDIA FOR COMMERCIAL USE. Page 1 of 5...
- Page 2 Ltr. Qty. Hardware Included 3/4” Screws TOOLS NEEDED: -Assembly requires 2 or more Bolts people. -Screwdriver required. Nuts Wrench Ltr. Qty. Components Top Shelf (E) Fixed Shelves (F) Adjustable Shelves (G) Side Frames (H) X- Shape Iron Back (I) Shelf Supports (J) Shelf Guards (K) (Screws) (Retention Belts)
- Page 3 NOTE: This assembly requires the help of 2 or more people. STEP 1: Attach the X-Shape Iron Back (I) to the Side Frames (H) by attaching one side at a time and using Bolts (B) and Nuts (C). Tighten the Nuts with the Wrench (D). Make sure one person is holding the Side Frames while the other tightens the Nuts.
- Page 4 NOTE: This assembly requires the help of 2 or more people. STEP 3: Stand Bookcase upright and insert Shelf Supports (J) with equal spacing into the Side Frames (H) by inserting the front of the Support into a hole on the front bar of the Side Frame and then sliding the back of the Support into the corresponding key hole in the back bar of the Side Frame.
- Page 5 NOTE: This assembly requires the help of 2 or more people. STEP 5: Insert Shelf Guards (K) equally between Shelves into the Side Frames (H) by inserting the front of the Guard into a hole on the front bar of the Side Frame and then sliding the back of the Guard into the corresponding key hole in the back bar of the Side Frame.
