Summary of Contents for BDI Revo 9980

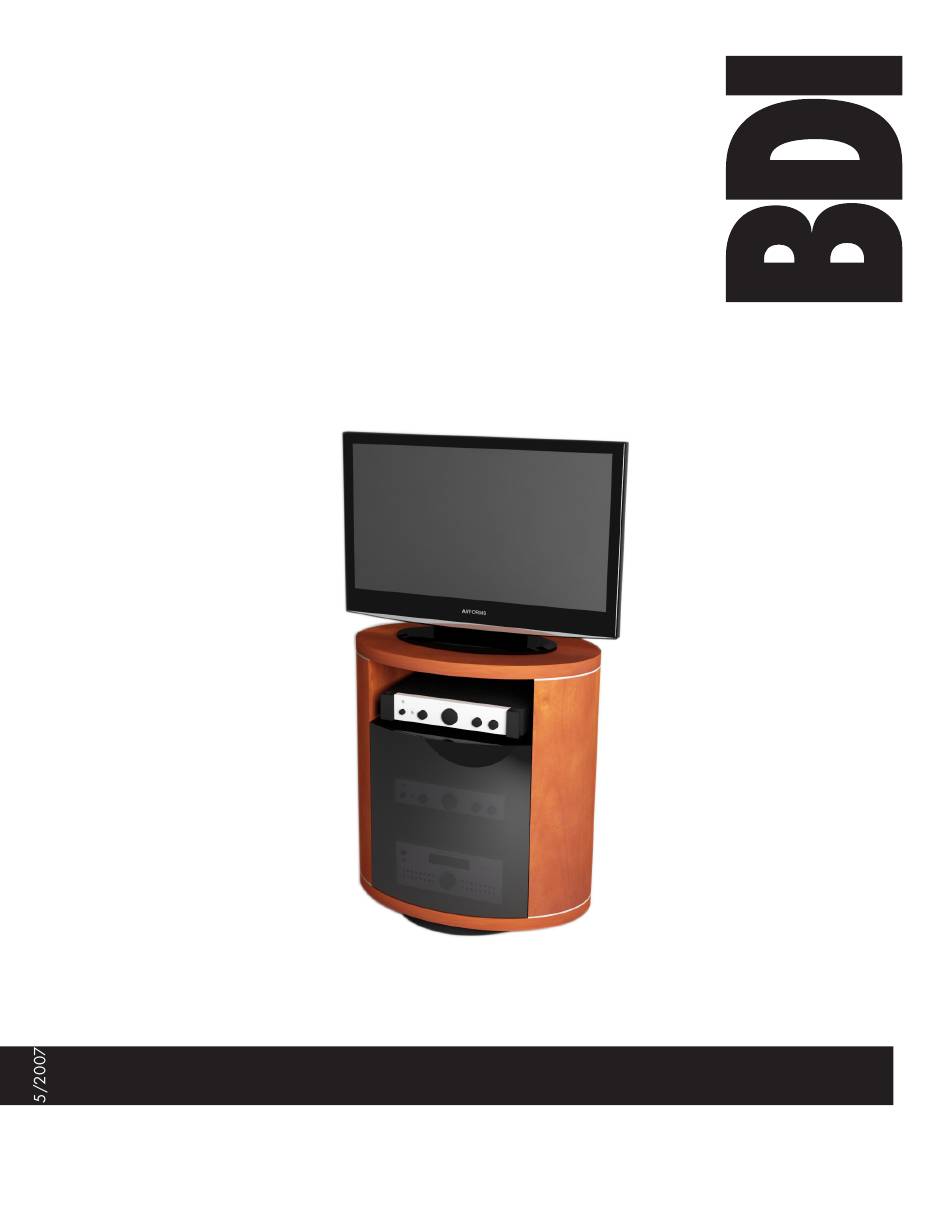

- Page 1 HIGH PERFORMANCE FURNITURE FOR YOUR HOME THEATER Revo 9980 Assembly Instructions...
- Page 2 Unpack and identify the parts listed. The assembly workspace should be a non-marring surface such as carpet. C - Retention Clip x 8 For missing hardware pieces, please contact BDI Customer Service at: customerservice@bdiusa.com All other concerns please contact your local BDI Retailer.
- Page 3 Detail of Shelf Pin (B) and Retention Clip (C) Step 2 Secure Glass Shelves To secure the shelves on your Revo unit, it is necessary to install the Glass Retention Clip (C). It is secured by the Shelf Pin (B). Install the 8 Shelf Pins (B) at desired location, 4 shelf pins per shelf.
- Page 4 Step 3 Install Back Panel. The back panel comes pre-installed. Follow illustrations below for installation and removal. NOTE: Mouse hole is on bottom edge of back panel. It aligns with pre-installed Velcro strap for wire management. Designed by Louis Lara. ‘Revo’...
