Switching Off The Equipment; General Conditions Of Use; In Case Of Power Failure - Automatic Systems TR491 Installation Manual

2.2.

Switching off the equipment

Prod.
N°
5214578
Phase
Kg
Legend:

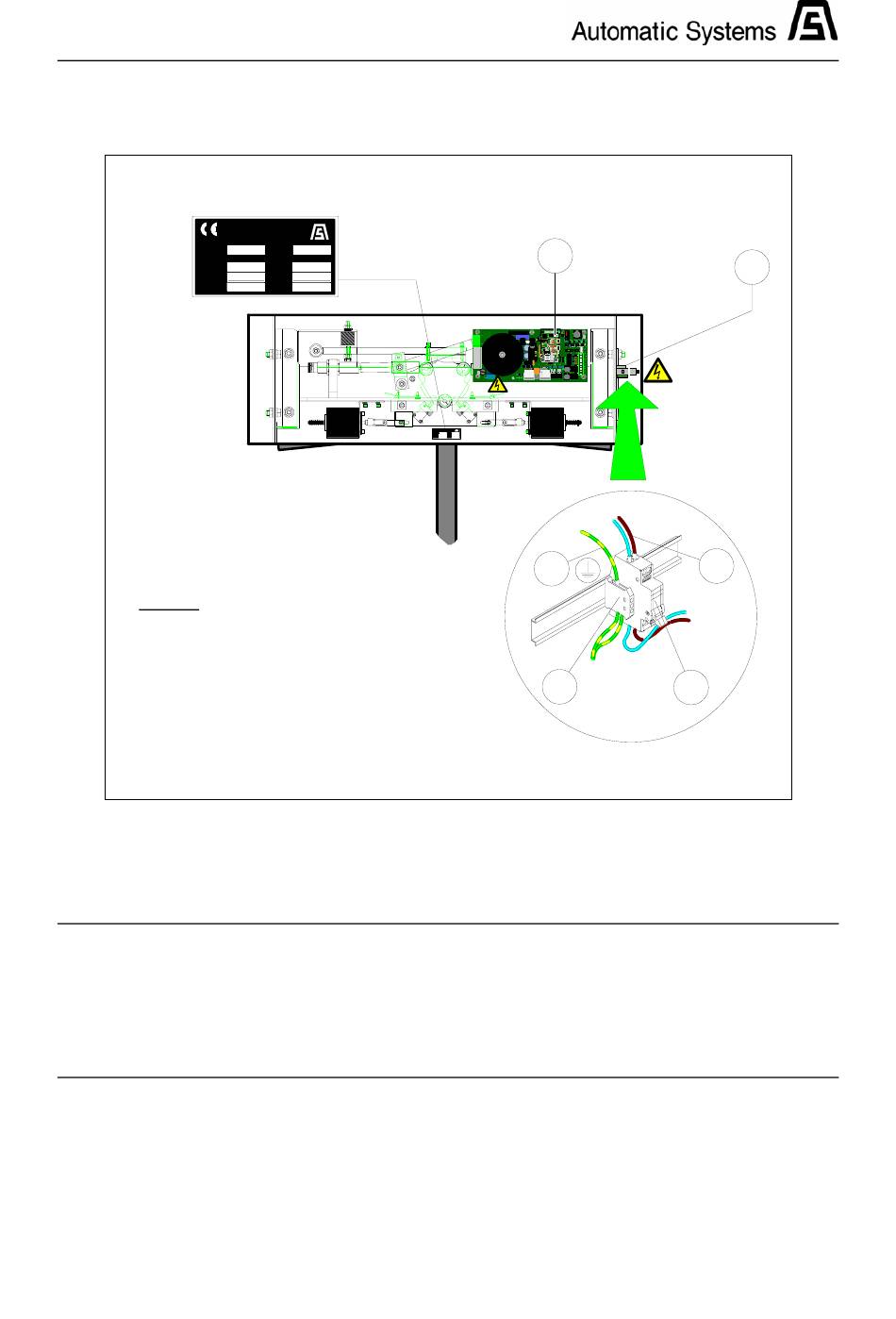

2:1 Main switch
2:2 Control logic
2:3 Earth connector
2:4 Customer power supply cables
2:5 Customer earth cable
•
As soon as you open the housing, put off the main switch (2:1) near the electrical control logic
(2:2), located under the hood.
2.3.

General conditions of use

•
Your TR491 dropping-arm tripod turnstile has been designed to operate in any climatic
environments of -20°C to +60°C, with up to 90% of relative humidity.
2.4.

In case of power failure

•
Whatever the control mode set up, the dropping-arm tripod turnstile has been developed to leave
the walkway clear when the electrical power supply is interrupted. Access by the user will
consequently be free --in both directions-- in an emergency situation.
[3.2. Principle of operation] in the Field manual for more information.
