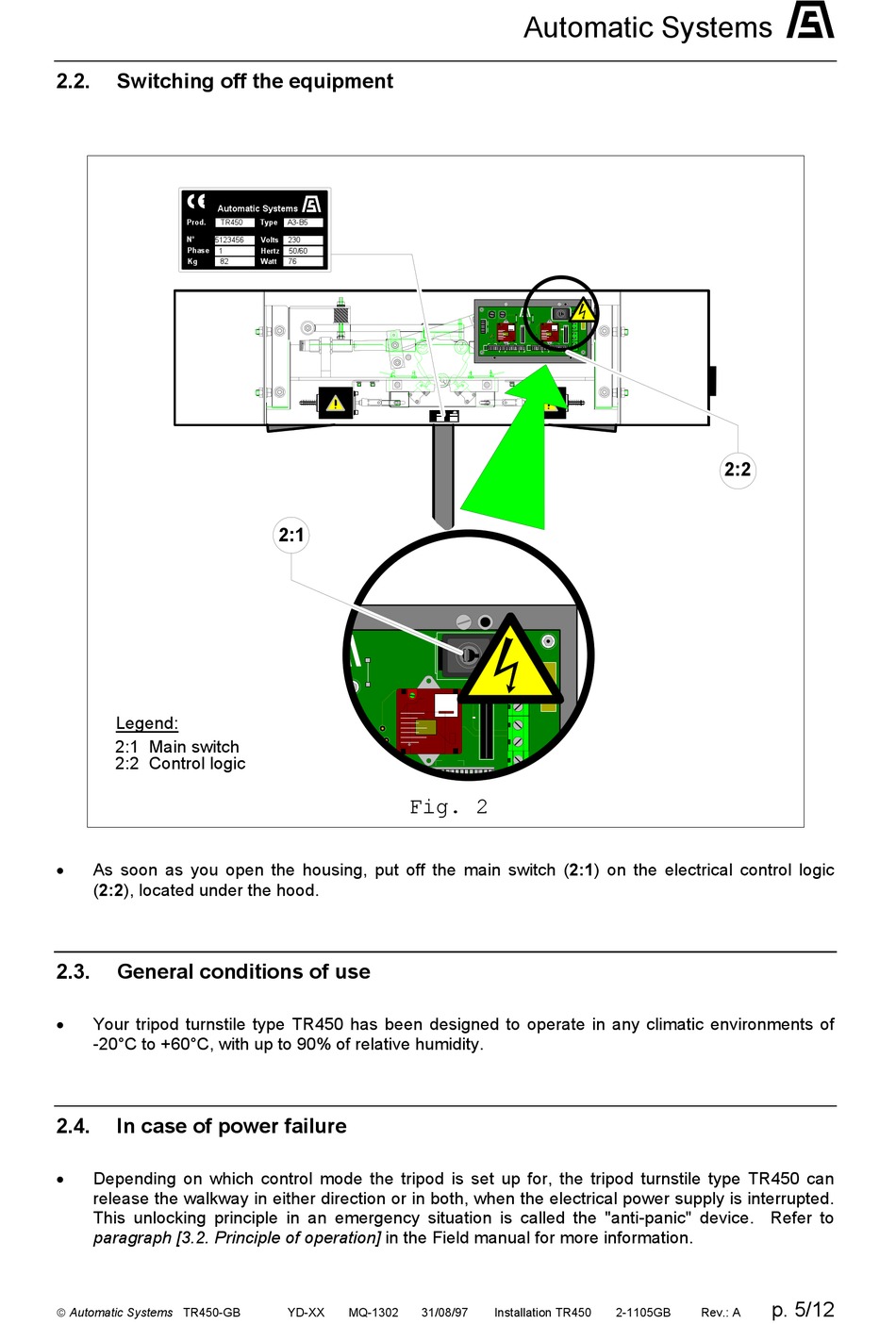

2.2.

Switching off the equipment

Automatic Systems
Prod. TR450
N° 5123456
Phase 1
Kg 82
Legend:
2:1 Main switch
2:2 Control logic
•
As soon as you open the housing, put off the main switch (2:1) on the electrical control logic
(2:2), located under the hood.
2.3.

General conditions of use

•
Your tripod turnstile type TR450 has been designed to operate in any climatic environments of
-20°C to +60°C, with up to 90% of relative humidity.
2.4.

In case of power failure

•
Depending on which control mode the tripod is set up for, the tripod turnstile type TR450 can
release the walkway in either direction or in both, when the electrical power supply is interrupted.
This unlocking principle in an emergency situation is called the "anti-panic" device. Refer to
paragraph [3.2. Principle of operation] in the Field manual for more information.
 Automatic Systems TR450-GB
Type A3-B5
Volts 230
50/60
Hertz
Watt 76
2:1
Fig. 2
YD-XX MQ-1302 31/08/97
Automatic Systems
-
-
Installation TR450 2-1105GB
2:2
p. 5/12
Rev.: A
