Project Timber Corner Shed Building Instructions page 6

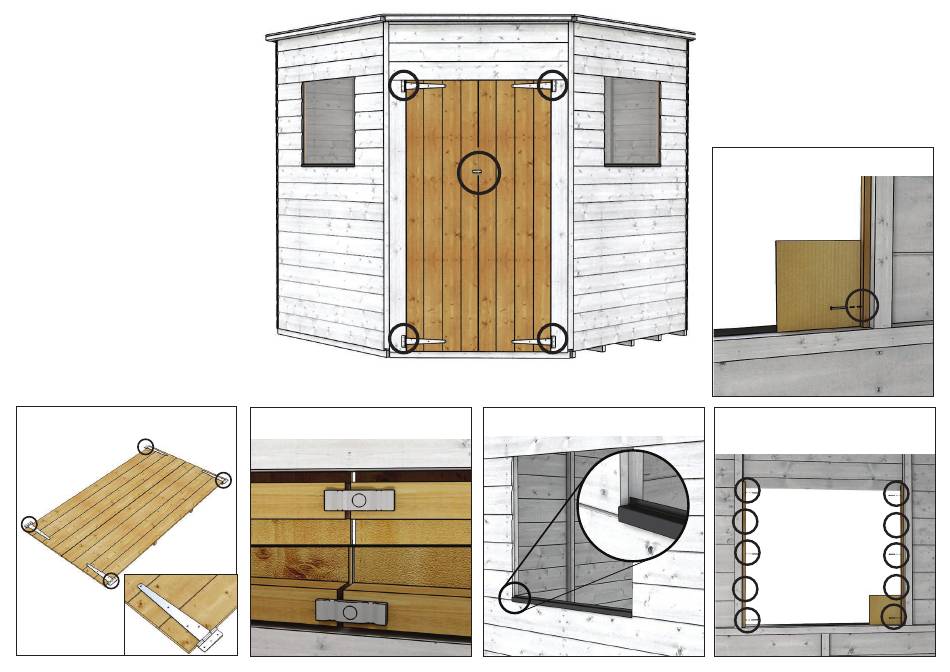

11. Lay Doors and fix
Hinges
12. Hang Doors and
secure Door Hinges
and Turn Button
13. Fix Turn Button to
the Top and Bottom
14. Fix and place
Window Sill
*Tip: Cardboard can be used to
protect the Glazing when fitting
the Beading
Fix Hinges to Doors over
Braces
12
S30
Screws
13. Turn Button fixing
Top
S30
Screws
S30
Screws
Bottom
Note: Peel off the protective
layer of Styrene, front and back.
14. Window Sill fixing
15. Fix the Window
Glazing and fit the
Beading on both
sides ONLY
Window Beading fixing
*Beading on both
Sides ONLY*
Panel
Pins
15. Window Glazing
fixing
Panel
Pins
