eXact PipeCut P400 Operating Instructions Manual page 3

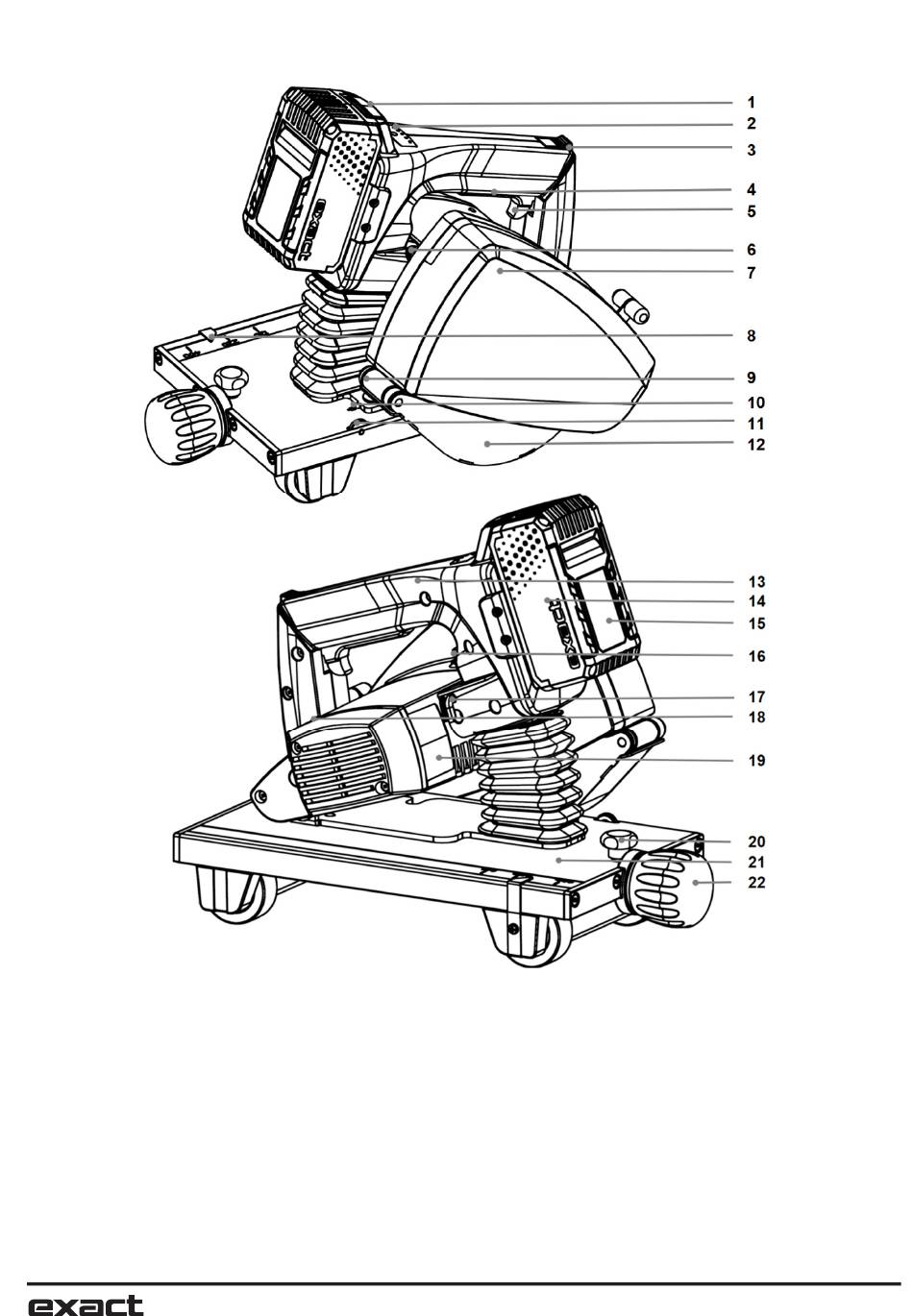

Figure A2. Pipecut features
1. Battery release button
2. Battery indicator
3. Unlock button
4. Power switch
5. Power-switch locking lever
6. Blade-guard screw
7. Blade-guard cover
8. Steering unit indicator
9. Setting points
10. Steering adjustment indicator
11. Steering adjustment screw
12. Moving blade-guard
13. Operating handle / Motor unit
14. Battery pack
15. Battery pack rating plate
16. Spindle-lock button
17. Hex key for blade
18. Heat indicator light
19. Rating plate
20. Steering unit adjustment lock nut
21. Steering unit
22. Steering unit adjustment knob
