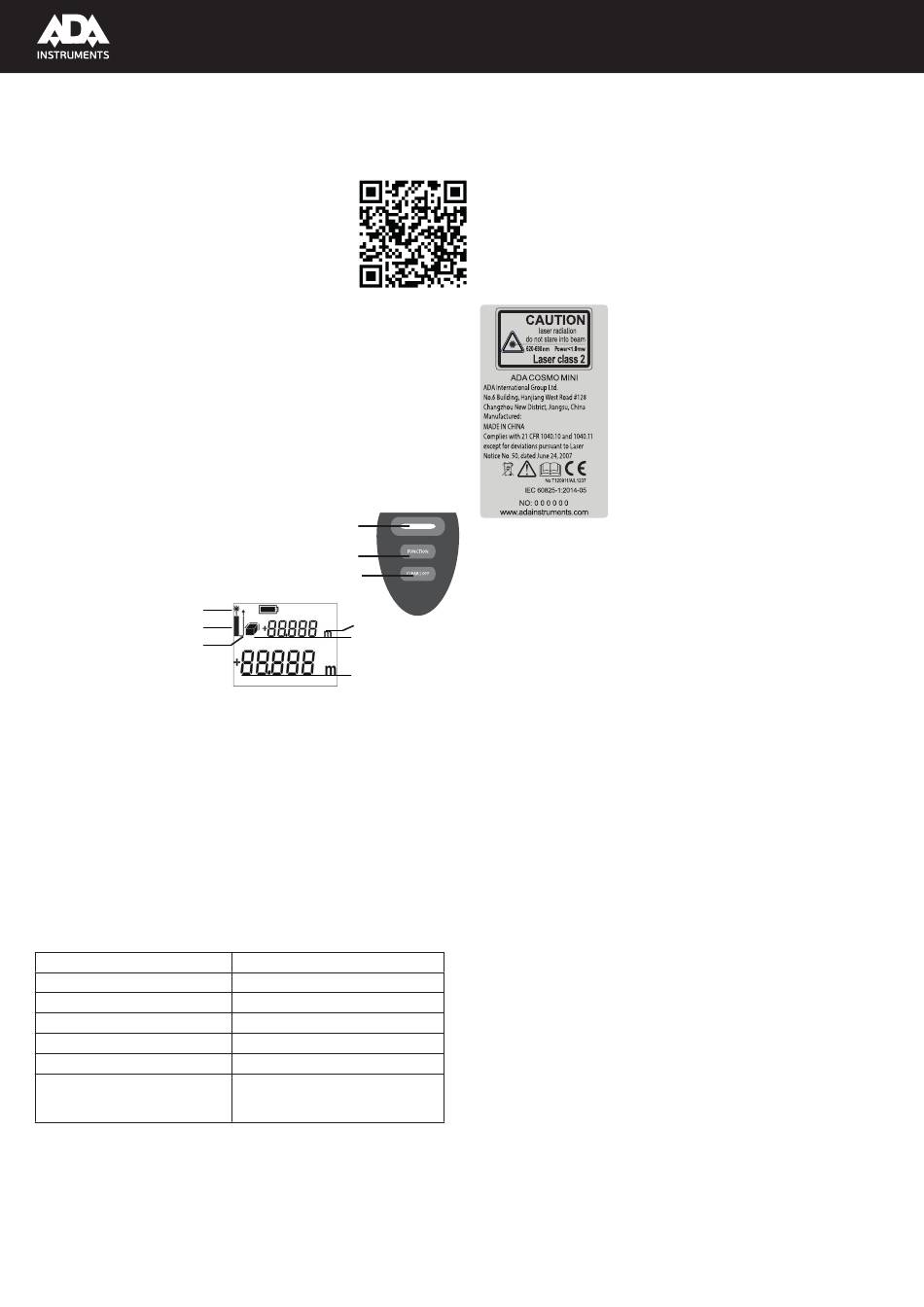

ADA INSTRUMENTS COSMO mini Operating Manual

Operating manual
Laser distance meter
ADA COSMO mini
The safety regulations and instructions along with the operating
manual should be read carefully before initial operation.The per-
son responsible for the instrument must ensure that equipment
is used in accordance with the instructions. This person is also
accountable for the deployment of personnel and for their train-
ing and for the safety of the equipment when in use. To read the
full version of the operating manual, scan QR-code.
SAFETY INSTRUCTION
Prohibited use
Please follow up instructions given in operating manual.
Do not use instrument in explosive environment (filling station, gas equipment, chemical pro-
duction and so on).
Do not remove warning labels or safety instructions.
Do not open instrument housing, do not change it's construction or modification.
Do not stare at beam. Laser beam can lead to eye injury (even from greater distances).
Do not aim laser beam at persons or animals.
Opening of the equipment by using tools (screwdrivers, etc.), as far as not specifically permitted
for certain cases.
Inadequate safety precautions at the surveying site (e.g. when measuring on the roads, construc-
tion sites and so on).
Use the instrument in the places where it could be dangerous: on the air transport, near
manufacturers, production facilities, in the places where the work of laser distance meter
can lead to the harmful effects on people or animals.
START UP

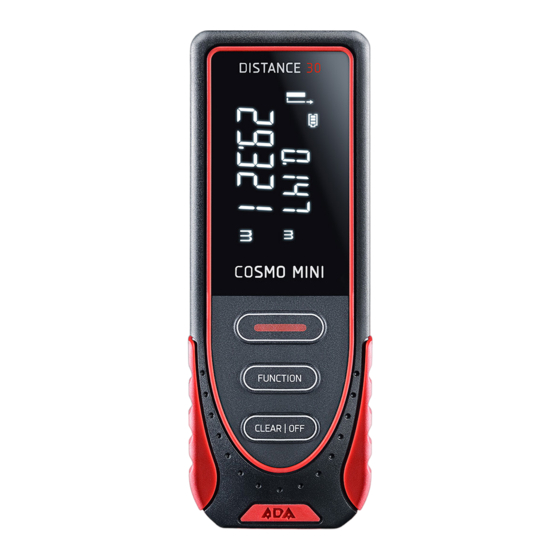

Keypad
1) ON / Measure / Continious measurements
2) Area / Volume / Pythagorean measure / Reference setting
3) Clear / OFF
Display
1
1) Laser ON
2
2) Reference (front/rear)
3) Area / volume/ Pythagorean
3
4) Main line 1
5) Line 2
6) Units
7) Battery level
Inserting / Replacing Batteries
Remove the battery cover, insert the battery correctly. Pay attention to correct polarity.
Close the battery compartment.
Replace the battery when symbol constantly blinks in the display.
Batteries should be removed in case of danger of corrosion, if the device will not be used for a long
time.
Swtich on and off
Press the button (1) to switch on the instrument and laser. Press and hold key for about 2 seconds
to start continuous measuring. To switch off the instrument press and hold button (3) for about 2 sec.
MEASUREMENTS
Press button (1) to activate the laser. When in continuous laser mode, press this button to
trigger the distance measurement directly. The instrument will give acoustical signal. The
result is displayed immediately.
TECHNICAL DATA
Range, without target, ft (m)
Accuracy, in (mm)
Laser class
Laser type
IP rating
Automatic switch off
Temperature range:
Storage
Operating
* In favourable conditions (good target surface properties, room temperature).
Maximum deviation occurs under unfavorable conditions such as bright sunlight or when measur-
ing to poorly reflecting or very rough surfaces.
1
2
3
6
5
4
0.2 - 100 (0.05 to 30)*
± 1/8 (3)*
2
635 nm, <1 mW
IP 54
3 minutes of inactivity
-13º F to 158º F (-25ºС - +70ºС)
14º F to 122º F (-10ºС - +50ºС)
ADAINSTRUMENTS.COM
Care and cleaning
Do not immerse the instrument in water. Wipe off dirt with a damp, soft cloth. Do not use
aggressive cleaning agents or solutions.
Laser classification
The instrument is a laser class 2 laser product with power <1 mW and wavelength 635
nm. Laser is safety in ordinary conditions of usage. Complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
WARRANTY
This product is warranted by the manufacturer to the original purchaser to be free from
defects in material and workmanship under normal use for a period of two (2) years from
the date of purchase.
During the warranty period, and upon proof of purchase, the product will be repaired or
replaced (with the same or similar model at manufactures option), without charge for
either parts of labour. In case of a defect please contact the dealer where you originally
purchased this product.
The warranty will not apply to this product if it has been misused, abused or altered.
Without limiting the foregoing, leakage of the battery, bending or dropping the unit are
presumed to be defects resulting from misuse or abuse.
EXCEPTIONS FROM RESPONSIBILITY
The user of this product is expected to follow the instructions given in operators' manual.
Although all instruments left our warehouse in perfect condition and adjustment the user
is expected to carry out periodic checks of the product's accuracy and general perfor-
mance.
The manufacturer, or its representatives, assumes no responsibility of results of a faulty
or intentional usage or misuse including any direct, indirect, consequential damage, and
loss of profits.
The manufacturer, or its representatives, assumes no responsibility for consequential
damage, and loss of profits by any disaster (earthquake, storm, flood ...), fire, accident,
or an act of a third party and/or a usage in other than usual conditions.
The manufacturer, or its representatives, assumes no responsibility for any damage, and
loss of profits due to a change of data, loss of data and interruption of business etc.,
caused by using the product or an unusable product.
The manufacturer, or its representatives, assumes no responsibility for any damage, and
loss of profits caused by usage other thsn explained in the users' manual.
The manufacturer, or its representatives, assumes no responsibility for damage caused
by wrong movement or action due to connecting with other products.
WARRANTY CARD
Name and model of the product _______________________________________________________________
Serial number ________________date of sale______________________________________
Name of commercial organization _____________________stamp of commercial organization
Warranty period for the instrument explotation is 24 months after the date of original retail purchase.
During this warranty period the owner of the product has the right for free repair of his instrument in case of man-
ufacturing defects.
Warranty is valid only with original warranty card, fully and clear filled (stamp or mark of thr seller is obligatory).
Technical examination of instruments for fault identification which is under the warranty, is made only in the autho-
rized service center.
In no event shall manufacturer be liable before the client for direct or consewuential damages, loss of profit or any
other damage which occur in the result of the instrument outage.
The product is received in the state of operability, without any visible damages, in full completeness. It is tested in
my presence. I have no complaints to the product quality. I am familiar with the conditions of qarranty service and
i agree.
Purchaser signature _______________________________
COSMO mini
