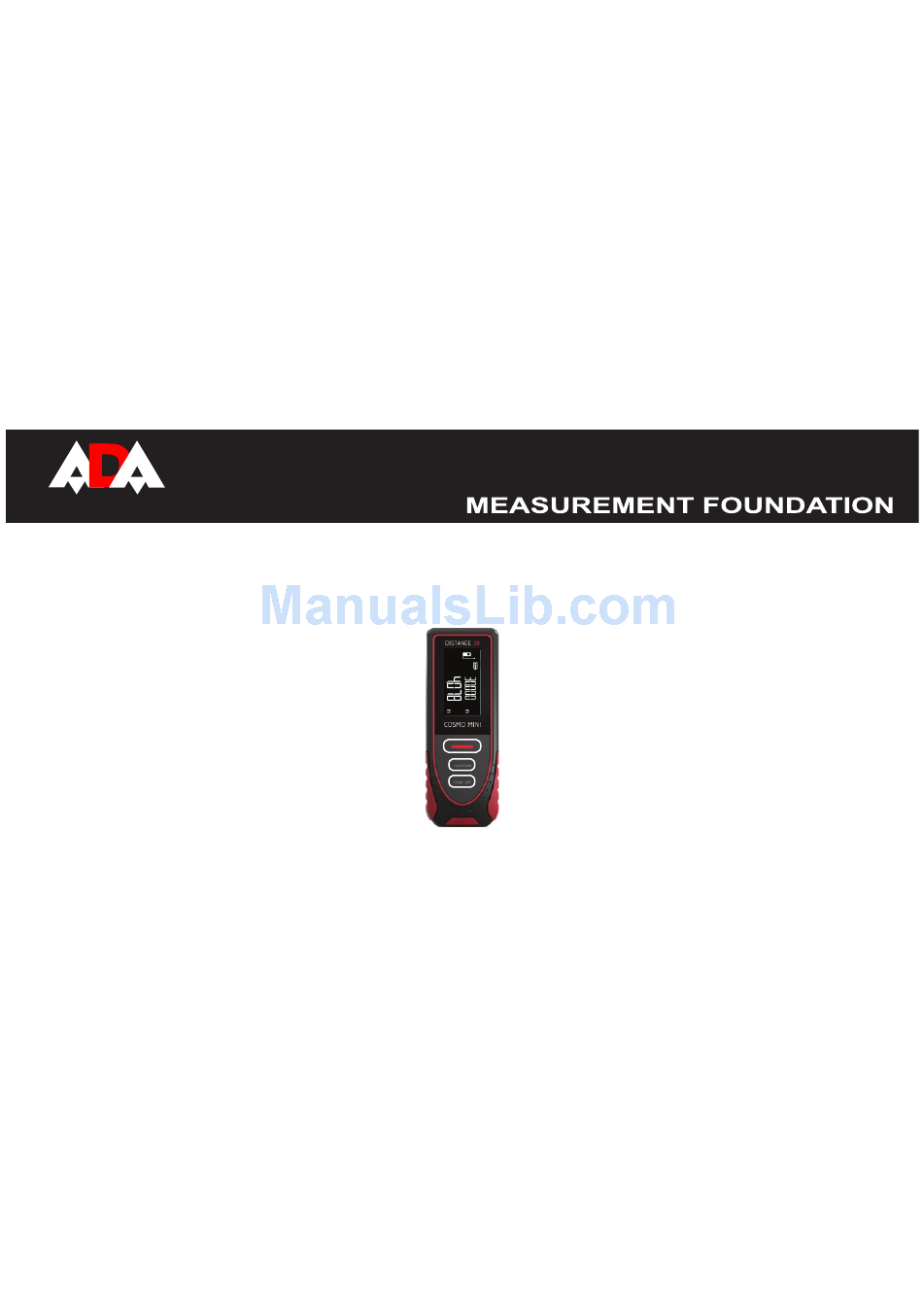

- Page 1 INSTRUMENTS Operating manual Laser distance meter Model: COSMO MINI Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM...
-
Page 2: Table Of Contents
COSMO MINI INSTRUMENTS Table of contents 1. Safety Instructions ......... . . 4 2. - Page 3 COSMO MINI INSTRUMENTS Congratulations on the purchase of laser distance meter ADA COSMO MINI! Permitted use · Measuring distances · Computing functions, e.g. areas, volumes, Pythagorean calculation The safety regulations and instructions along with the operating manual should be read carefully before initial operation.The person responsible for the instrument must ensure that equipment is used in accor-...
-
Page 4: Safety Instructions
COSMO MINI INSTRUMENTS SAFETY INSTRUCTION Prohibited use Please follow up instructions given in operating manual. Do not use instrument in explosive environment (filling station, gas equipment, chemical production and so on). Do not remove warning labels or safety instructions. Do not open instrument housing, do not change it’s construction or modification. -
Page 5: Start Up
COSMO MINI INSTRUMENTS Laser classification The instrument is a laser class 2 laser product with power < 1 mW and wavelength 635 nm. Laser is safety in ordinary conditions of usage. START UP Keypad 1) ON / Measure / Continious measurements... - Page 6 COSMO MINI INSTRUMENTS Display 1) Laser ON 2) Reference (front/rear) 3) Area / volume/ Pythagorean 4) Main line 1 5) Line 2 6) Units 7) Battery level...
-
Page 7: Menu Functions
COSMO MINI INSTRUMENTS Inserting / Replacing Batteries Remove the battery cover, insert the battery correctly. Pay attention to correct polarity. Close the battery compartment. Replace the battery when symbol constantly blinks in the display. Batteries should be removed in case of danger of corrosion, if the device will not be used for a long time. -
Page 8: Measurements
COSMO MINI INSTRUMENTS Clear-Key Cancel the last action. Press button (3). Reference setting Default reference setting is from the rear of the device. Press and hold button (2) for more than 2 sec to set the reference: the front or the rear. You will see the reference symbol (2) on the display. -
Page 9: Functions
COSMO MINI INSTRUMENTS Continuous Measurement Press and hold the button (1) for about 2 seconds to start continuous measuring. FUNCTIONS Area Press the button (2) once.The symbol “area” is displayed. Press button (1) to take the first measurement (for example, length). Measured value is displayed in the second line. - Page 10 COSMO MINI INSTRUMENTS second line. Press button (1) to take the third measurement (for example, height). Measured value is displayed in the second line. The volume value will be displayed in the first line. Indirect measurement Pythagorean measurement is used in the condition that the objective needing to be measured is covered or has no effective reflecting surface and can’t be measured directly.
-
Page 11: Message Codes
COSMO MINI INSTRUMENTS the symbol triangle. Press button (1) to take distance measuring (hypothenuse of triangle). The result is displayed in the second line. This measurement can be taken in the indirect measurement function. Press and hold button (1) for 2 sec. After second pressure of the button (1) value is fixed. - Page 12 COSMO MINI INSTRUMENTS Temperature too high Let device cool down Temperature too low Warm device up Receiver signal is too weak Measure target point with stronger reflector Received signal too strong Measure target point with weaker reflector Pythagorean measurement Re-measure and ensure the hypotenuse is...
-
Page 13: Techical Data
COSMO MINI INSTRUMENTS TECHNICAL DATA Range, without target, m 0.05 to 30 Accuracy, mm ±2* Smallest unit displayed 1 mm Laser class Laser type 635 nm, <1 mW IP rating IP 54 Automatic switch off 3 minutes of inactivity Battery life, 2 x AAA... - Page 14 COSMO MINI INSTRUMENTS Dimensions, mm 108х38х29 Weight 120 g Temperature range: Storage -25º to +70º Operating -10º to +50º * In favourable conditions (good target surface properties, room temperature). Maximum deviation occurs under unfavorable conditions such as bright sunlight or when measuring to...
-
Page 15: Measuring Conditions
COSMO MINI INSTRUMENTS MEASURING CONDITIONS Measuring range The range is limited to 30 m. At night, at dusk and when the target is shadowed the measuring range without target plate is increased. Use a target plate to increase the measurement range during daylight or if the target has a bad reflection. - Page 16 COSMO MINI INSTRUMENTS PRECAUTIONS Please, handle the instrument with care. Avoid viabrations, hits, water, effect of heat. During transportation put the instrument into the soft bag. Note: the instrument should be dry! Care and cleaning Do not immerse the instrument in water. Wipe off dirt with a damp, soft cloth. Do not use aggressive cleaning agents or solutions.
- Page 17 Laser classification ADA COSMO MINI projects visible laser beam from the front part of the instrument. The instrument is a laser class 2 laser product according to DIN IEC 6082 5-1:2007. It is allowed to use unit following further...
-
Page 18: Warranty
COSMO MINI INSTRUMENTS WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. - Page 19 COSMO MINI INSTRUMENTS The manufacturer, or its representatives, assumes no responsibility of results of a faulty or intentional usage or misuse including any direct, indirect, consequential damage, and loss of profits. The manufacturer, or its representatives, assumes no responsibility for consequential damage, and loss of profits by any disaster (earthquake, storm, flood ...), fire, accident, or an act of a third party and/or a usage...
-
Page 20: Appendix 1 - "Warranty Card
WARRANTY CARD Name and model of the product ________________________________________________ Serial number ________________date of sale_______________________ Name of commercial organization _____________________stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. Warranty is valid only with original warranty card, fully and clear filled (stamp or mark of the seller is obligatory). - Page 21 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, removed or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their normal runout. 3. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative written agreement of the expert provider.
