Quick Installation Guide
00825-0100-4379, Rev DA
October 2008

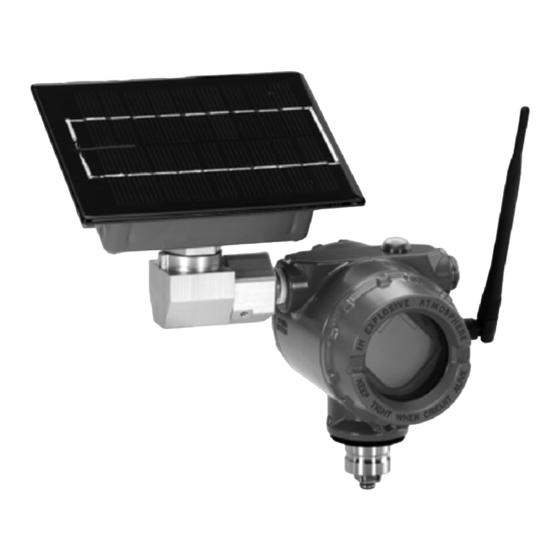

Rosemount 753R
Remote Web Based Monitoring Indicator
Overview
Rosemount 753R with Integral 3051S Pressure Transmitter
Rosemount 753R with Remote Mounted HART Transmitter
Rosemount 753R with Integral 3051S Pressure Transmitter and
Remote Mounted HART Transmitter (Dual Drop)
Product Certifications
www.rosemount.com
¢00825-0100-4379|¤
Product Discontinued February 2010
Rosemount 753R Indicator
Start
End
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Emerson Rosemount 753R
Summary of Contents for Emerson Rosemount 753R
- Page 1 Remote Web Based Monitoring Indicator Product Discontinued February 2010 Start Overview Rosemount 753R with Integral 3051S Pressure Transmitter Rosemount 753R with Remote Mounted HART Transmitter Rosemount 753R with Integral 3051S Pressure Transmitter and Remote Mounted HART Transmitter (Dual Drop) Product Certifications www.rosemount.com ¢00825-0100-4379|¤...
-
Page 2: Important Notice
T (Intnl) (952) 906-8888 F (952) 949-7001 IMPORTANT NOTICE This installation guide provides basic guidelines for the Rosemount 753R Web Based Remote Monitoring Indicator (see Reference Manual Document Number 00809-0100-4379 for detailed instructions). It does not provide instructions for diagnostics, maintenance, service, or troubleshooting. This document is also available electronically on www.rosemount.com. - Page 3 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Overview The Rosemount 753R is available in three primary configurations: 1. Rosemount 753R with Integral 3051S Pressure Transmitter. Instructions begin on page 4. Line Power 2. Rosemount 753R with Remote Mounted HART™...
- Page 4 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Rosemount 753R with Integral 3051S Pressure Transmitter Line Power Measurement Transmitter Installation. 1. Install the 3051S according to the 3051S Quick Installation Guide included in the 753R packaging. 2. To achieve best signal strength, the 753R should be installed so the antenna is approximately 18 in.
- Page 5 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 WARNING To avoid a potential explosion that could result in death or serious injury, do not connect both the 6–24 VDC power supply and the RPS at the same time.
- Page 6 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Rosemount 753R with Remote Mounted HART™ Transmitter Line Power Measurement Transmitter Installation. 1. Install the remote measurement transmitter according to the Quick Installation Guide included in the measurement transmitter’s packaging.
- Page 7 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Power Application 1. Remove the housing cover labeled FIELD TERMINALS. 2. Ground the 753R housing according to local electrical codes. 3. For units with an RPS see Figure 9 on page 14: a.
- Page 8 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Configure the 753R 1. Log into iTraX a. https://itrax.datacom.com. b. Enter your username. c. Enter your password. 2. Locate and select the 753R tag on the Summary page, 3. Select Device from the menu on the left frame. (See Figure 5 on page 12.) 4.
- Page 9 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Rosemount 753R with Integral 3051S Pressure Transmitter and Remote Mounted HART Transmitter Line Power Measurement Transmitter Installation. 1. Install the remote measurement transmitter according to the Quick Installation Guide included in the measurement transmitter’s packaging.
- Page 10 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Figure 2. Drip Loop Illustration 5. Connect the HART + and - leads to the measurement transmitter according to the Quick Installation Guide included with the measurement transmitter package.
- Page 11 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 ® Verify that the 753R has successfully transmitted to iTraX 1. Log into iTraX (Figure 3 on page 11) a. https://itrax.datacom.com. b. Enter your username. c. Enter your password.
- Page 12 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Figure 4. Summary Screen Figure 5. Device Configuration Screen...
- Page 13 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Figure 6. Housing Rotation Set Screw Location Housing Rotation Set Screw (3/32-inch) Figure 7. RPS Positioning Set Screws RPS Positioning Set Screw RPS Positioning Set Screw Figure 8. Conduit Plugs - Remove orange plastic insert, install the supplied conduit plug with sealant...
- Page 14 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008 Figure 9. Wiring Diagram for 753R with Remote Power Supply (RPS) Push Button Rosemount 753R Remote Mounted HART Transmitter Green PUSH HART + Black BUTTON HART 6-24 Remote Power Supply...
-
Page 15: Product Certifications
ERTIFICATIONS NOTE The Rosemount 753R is intended for monitoring purposes only. The Rosemount 753R is intended for web based monitoring applications and is not designed to integrate into process control systems. Approved Manufacturing Locations Rosemount Inc. — Chanhassen, Minnesota USA... - Page 16 Quick Installation Guide 00825-0100-4379, Rev DA Rosemount 753R Indicator October 2008...
