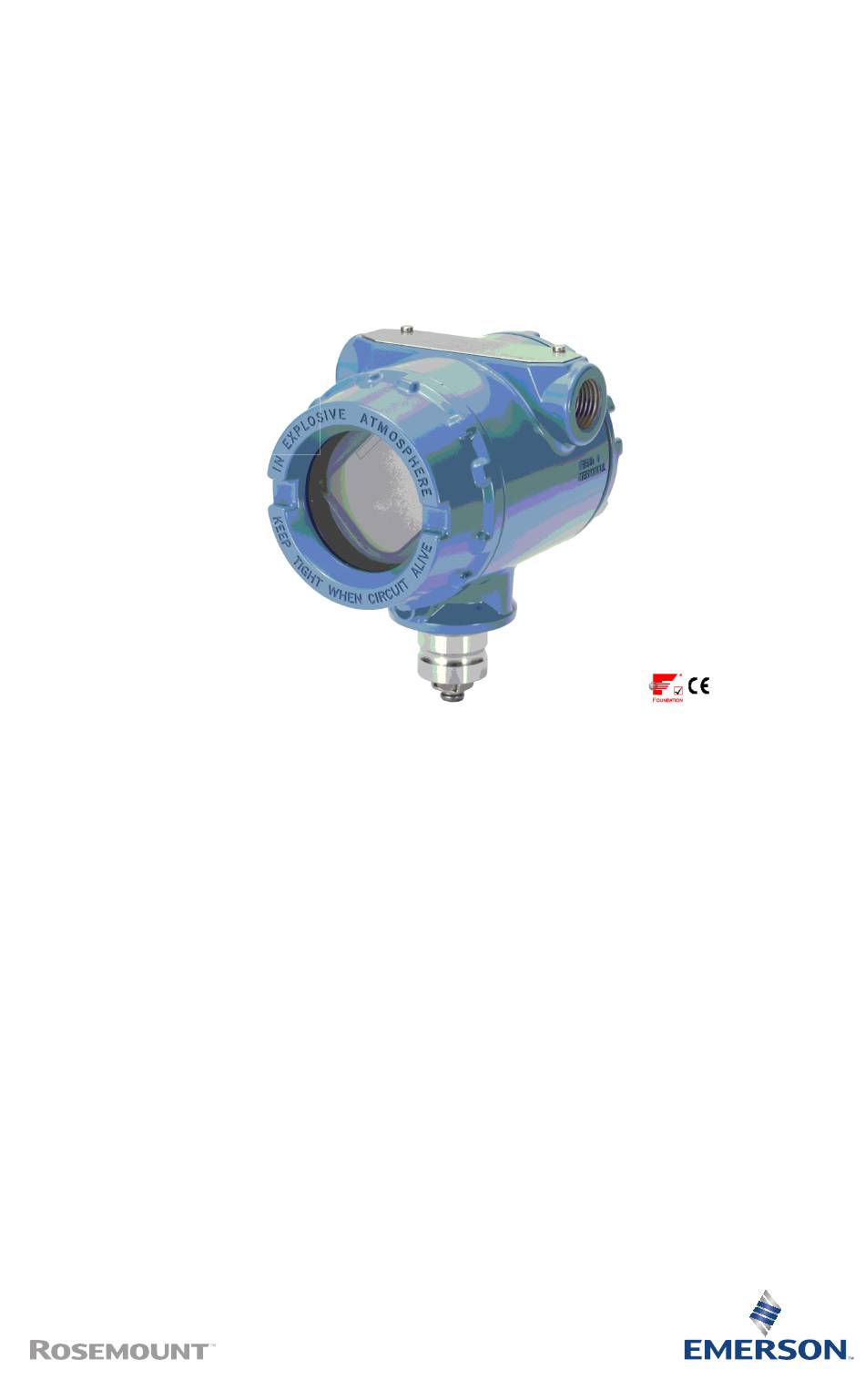

  • Page 1 Quick Start Guide 00825-0100-4377, Rev FC August 2024 Rosemount 752 Remote Indicator ™ with F Fieldbus Protocol ™ OUNDATION...
  • Page 2: Table Of Contents

    Quick Start Guide August 2024 Safety messages This guide provides basic guidelines for the Rosemount 752 Remote Indicator. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, explosion-proof, flameproof, or intrinsically safe (I.S.) installations. Refer to the Rosemount Reference Manual for more instruction.
  • Page 3: Wiring Connection

    Arrange the drip loop so the bottom is lower than the conduit connections and the indicator housing. Note Do not apply high voltage (e.g. AC line voltage) to the indicator terminals. Abnormally high voltage can damage the unit. Indicator terminals are rated to 32 Vdc. www.Emerson.com...
  • Page 4 Shield wire ground To protect the Fieldbus segment from noise, grounding techniques for shield wire usually require a single grounding point for shield wire to avoid creating a ground loop. The ground point is typically at the power supply. www.Emerson.com...
  • Page 5 D. Terminators E. Fieldbus segment F. Trunk G. F Fieldbus configuration tool ™ OUNDATION H. Spur I. Signal wiring J. Fieldbus devices on segment The power supply, filter, first terminator, and configuration tool are typically located in the control room. www.Emerson.com...
  • Page 6 The internal ground connection screw is inside the terminal side of the electronics housing. The screw is identified by a ground symbol ), and is standard on the Rosemount 752 Remote Indicators. External ground assembly Ground screw is located at the bottom of the mounting bracket.
  • Page 7: Configure The Transducer Block

    The LCD display transducer block can be configured to sequence eight different process variables. If a function block is scheduled in the Rosemount 752 that links a process variable from another device on the segment, that process variable can be displayed on the LCD display.
  • Page 8 CUSTOM_UNITS_# Specify custom units to be displayed with the parameter. Enter up to six characters. To display Custom Units, the UNITS_TYPE_# must be set to CUSTOM. Note _# represents the specified parameter number. www.Emerson.com...
  • Page 9: Product Certifications

    European Directive Information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 3.2  Ordinary Location Certification...
  • Page 10 II 1 G, Ex ia IIC T4 Ga; (–20 °C ≤ T ≤ +60 °C); IP66 Markings: Table 3-1 for entity parameters. Special Conditions for Safe Use (X): 1. When fitted with the transient protection option, the apparatus is not capable of withstanding the 500 V test as www.Emerson.com...
  • Page 11 Special Conditions for Safe Use (X): 1. Flameproof joints are not intended for repair. 2. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted www.Emerson.com...
  • Page 12 6.3.13 of IEC 60079-11:2011. This must be taken into account during installation. 2. The Rosemount 752 enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact of abrasion if located in a zone 0 area.
  • Page 13 See certificate for Special Conditions for Safe Use NM EAC Type n EAЄC KZ 7500525.01.01.01600 Certificate: 2Ex nA IIC T5 Gc X; IP66; T5(-40 °C ≤ T ≤ +70 °C) Markings: See certificate for Special Conditions for Safe Use www.Emerson.com...
  • Page 14 KC Combination of E5, E1, I5, and I1 KM Combination of EM, IM, and NM Table 3-1: Entity Parameters Parameters Fieldbus FISCO 30 V 17.5 V 300 mA 380 mA 1.3 W 5.32 W 0 nF 0 nF 0 µH 0 µH www.Emerson.com...
  • Page 15: Declaration Of Conformity

    August 2024 Quick Start Guide 4  Declaration of Conformity www.Emerson.com...
  • Page 16 Quick Start Guide August 2024 www.Emerson.com...
  • Page 17: China Rohs

    August 2024 Quick Start Guide 5  China RoHS China RoHS Rosemount 752 List of Rosemount 752 Parts with China RoHS Concentration above MCVs Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
  • Page 18 Quick Start Guide August 2024 www.Emerson.com...
  • Page 19 August 2024 Quick Start Guide www.Emerson.com...
  • Page 20 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
