Quick Start Guide
00825-0100-4378, Rev CC
May 2023
Rosemount
751 Field Signal
™
Indicator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 751 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 751

Summary of Contents for Emerson Rosemount 751

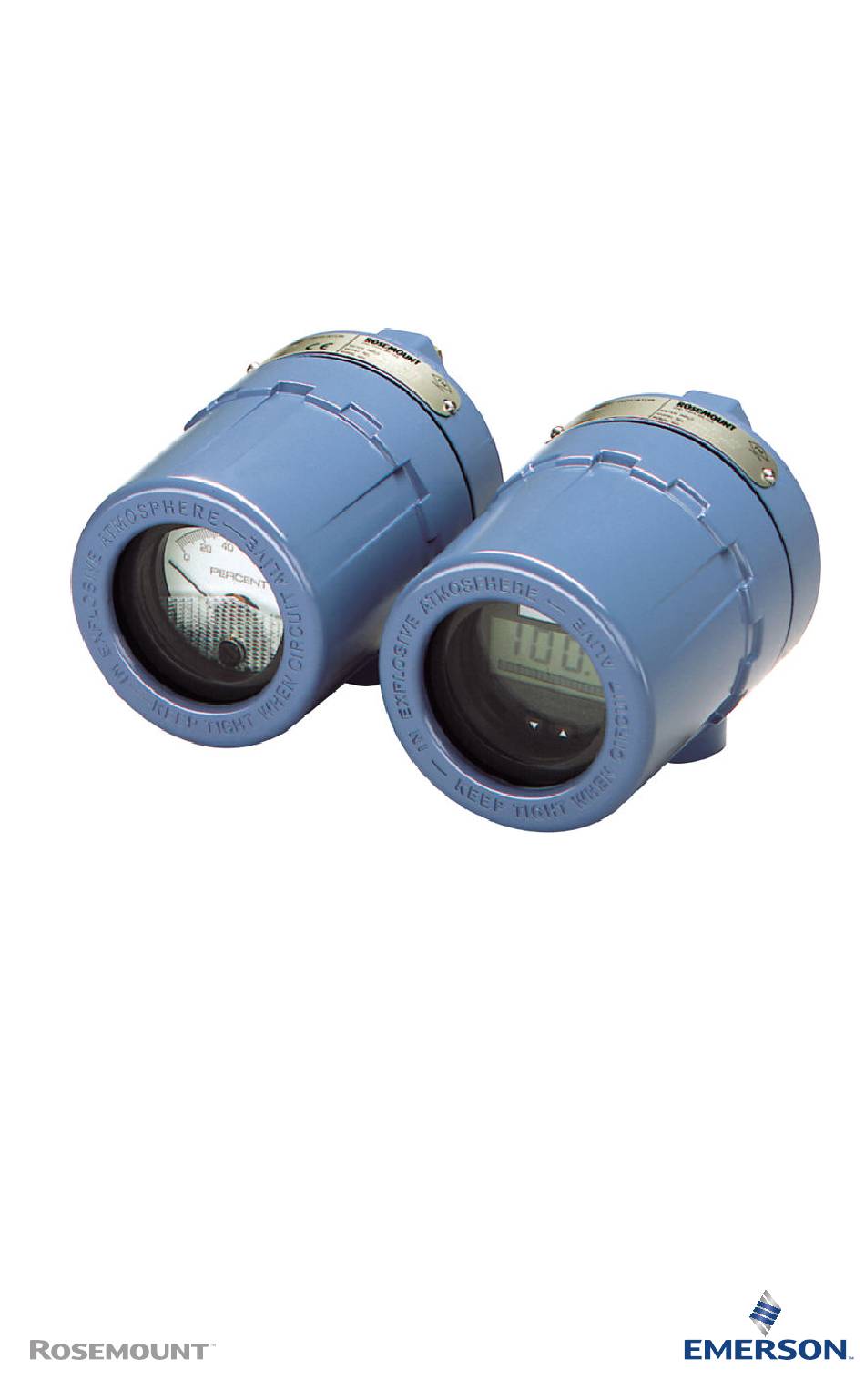

  • Page 1 Quick Start Guide 00825-0100-4378, Rev CC May 2023 Rosemount 751 Field Signal ™ Indicator...

  • Page 2: Table Of Contents

    Quick Start Guide May 2023 About this guide This guide provides basic guidelines for Rosemount 751 Field Signal Indicator. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosionproof, Flameproof, or intrinsically safe (I.S.) installations. Refer to the Rosemount Reference Manual for more instruction.

  • Page 3: Installation

    Quick Start Guide 1  Installation 1.1  Assembly The Rosemount 751 Field Signal Indicator is comprised of the components shown in Figure 1-1. The housing may contain an analog or liquid crystal display (LCD) display meter. Both meters are independent of component parts and are completely interchangeable.
  • Page 4 Quick Start Guide May 2023 Figure 1-1: Rosemount 751 Exploded View A. Terminal screws B. Housing O-ring C. Field wiring terminals D. Loop protection diode E. Tapped mounting boss F. Optional mounting bracket G. Mounting bolt with washer H. U-bolt for 2-in. pipe I.
  • Page 5 May 2023 Quick Start Guide Figure 1-2: Meter Exploded View A. Retaining straps B. Mounting screw into housing C. Washer for retaining strap D. Mounting screws into mounting plate E. Terminal screws (2) F. Mounting plate G. Spacer plate H. LCD display I.
  • Page 6 Use shielded cable for best results in electrically noisy environments. Series configuration It is recommended that the Rosemount 751 Indicator be wired in a series configuration when the 4-20 mA transmitter does not contain a test terminal. The indicator is designed so the analog or LCD display meter can be removed from the housing without impacting the integrity of the 4-20 mA loop.
  • Page 7 May 2023 Quick Start Guide Figure 1-4: Rosemount 751 Series Wiring Diagrams for Rosemount 3051C and 3051S 4–20 mA dc Input Signal for 4–20 dc Input Signal for Rosemount Rosemount 3144P 2051 + − + − 3051S − 3051C − −...
  • Page 8 A parallel configuration will allow the removal of the indicator without affecting the integrity of the 4-20 mA loop. Additionally, spare indicators can be added without disrupting the loop. Figure 1-5: Rosemount 751 Parallel Wiring Diagrams for Rosemont 3144P and 2051 2051 3144P 4–20 mA dc Input Signal for...
  • Page 9 May 2023 Quick Start Guide 3051C 3051S 4–20 mA dc Input Signal for 4–20 dc Input Signal for Rosemount Rosemount 3051C 3051S A. Power supply B. Load resistor C. Optional ground Quick Start Guide...

  • Page 10: Configuration

    (see Table 2-1). Note The LCD display time-out is approximately 16 seconds. If you do not press the configuration buttons within 16 seconds, the indicator will revert to reading the current signal. Rosemount 751...
  • Page 11 May 2023 Quick Start Guide Table 2-1: LCD Display Mode Options Options Relationship between Input Signal and Digital Display Linear LinF Linear with 5-second filter Square root SrtF Square root with 5-second filter Square root function only relates to the digital display. The bar graph output remains linear with the current signal.
  • Page 12 3. To store the information, simultaneously press both configuration buttons for two seconds. The LCD display meter is now configured. 2.1.6  Replace the cover Procedure Make sure the rubber gasket is seated properly, and thread the transparent housing cover onto the LCD display meter body. Rosemount 751...

  • Page 13: Product Certification

    European Directive Information A copy of the EU/UK Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU/UK Declaration of Conformity can be found at Emerson.com/Rosemount. 3.2  Ordinary Location Certification...
  • Page 14 2. The 751 may be provided with a ¾NPT to ½NPT thread adapter. This thread adapter has not been assessed under DEMKO 18 ATEX 1958X. When installing this thread adapter, refer to manufacturer’s installation instructions. Rosemount 751...
  • Page 15 May 2023 Quick Start Guide Special Conditions for Safe Use (X): 1. Flameproof joints are not intended for repair. 2. Painted enclosures may cause risk from electrostatic discharge. Avoid installation that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth.
  • Page 16 Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. 3.8.2  I2 INMETRO Intrinsic Safety UL-BR 15.1094X Certificate ABNT NBR IEC 60079-0:2008 + ERRATA 1:2011, ABNT Standards NBR IEC 60079-11:2009 Rosemount 751...
  • Page 17 May 2023 Quick Start Guide Ex ia IIC T5/T6 Ga; T6(–60 °C ≤ T ≤ +40 °C), T5(–60 °C ≤ T Markings ≤ +80 °C) Special Condition for Safe Use (X): 1. The enclosure may be made of aluminum alloy and given a protective polyurethane or epoxy polyester paint finish;...
  • Page 18 GB/T 3836.1-2021, GB/T 3836.4-2021 Standards: Ex ia IIC T5∙∙∙T6 Ga; T5(-60°C +80°C), T6(-60°C +40°C) Markings: 产品安全使用特殊条件 产品防爆合格证号后缀“X”代表产品安全使用有特殊条件： 1. 产品使用环境温度与温度组别的关系为： 温度组别 环境温度 -60℃≤Ta≤＋ 40℃ -60℃≤Ta≤＋ 80℃ 2. 当产品外壳为铸铝材质且带有聚氨酯或聚酯纤维涂层时，在 0 区使 用应注意防止产品受到冲击或摩擦，以防静电积累危险。 产品使用注意事项 a. 本安电气参数： 最高输入电压 最大输入电流 最大内部等效参数 (mA) (nF) (mH) Rosemount 751...
  • Page 19 May 2023 Quick Start Guide b. 同时遵守本产品和所配关联设备的使用说明书要求，接线端 子不得接错。 c. 用户不得自行更换该产品的零部件，应会同产品制造商共同 解决运行中出现的故障，以杜绝损坏现象的发生。 d. 产品的安装、使用和维护应同时遵守产品使用说明书、GB/ T3836.13-2021“爆炸性环境 第 13 部分：设备的修理、检 修、修复和改造”、GB/T3836.15-2017“爆炸性环境 第 15 部分：电气装置的设计、选型和安装”、GB/T3836.16-2017 “爆炸性环境 第 16 部分：电气装置的检查与维护”、GB/ T3836.18-2017“爆炸性环境 第 18 部分：本质安全电气系 统”、GB50257-2014“电气装置安装工程爆炸和火灾危险环 境电力装置施工及验收规范”的有关规定。 3.11  Japan 3.11.1  E4 Japan Flameproof CML 18JPN1417X Certificate Ex db IIC T6/T5 Gb, T6(-40°C ≤ T ≤...
  • Page 20 Quick Start Guide May 2023 3.13  Combinations Combination of E2 and I2 Combination of E5 and I5 Combination of E6 and I6 Combination of EM and IM Rosemount 751...

  • Page 21: Declaration Of Conformity

    May 2023 Quick Start Guide 4  Declaration of Conformity Quick Start Guide...
  • Page 22 Quick Start Guide May 2023 Rosemount 751...
  • Page 23 May 2023 Quick Start Guide Quick Start Guide...

  • Page 24: China Rohs

    Quick Start Guide May 2023 5  China RoHS China RoHS Rosemount 751 List of Rosemount 751 Parts with China RoHS Concentration above MCVs Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
  • Page 25 May 2023 Quick Start Guide Quick Start Guide...
  • Page 26 Quick Start Guide May 2023 Rosemount 751...
  • Page 27 May 2023 Quick Start Guide Quick Start Guide...
  • Page 28 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
