Summary of Contents for Pyxis SP-800

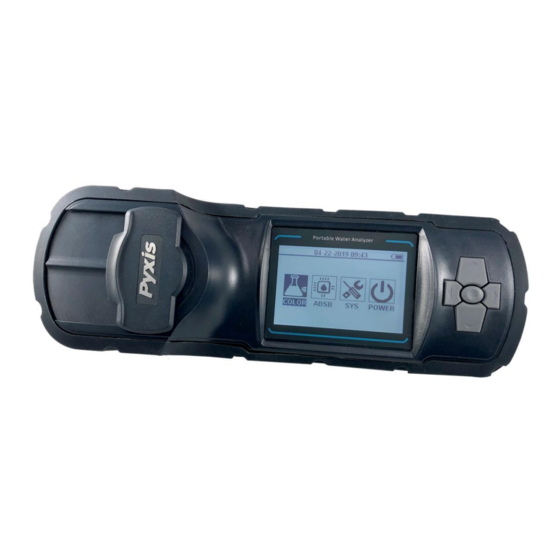

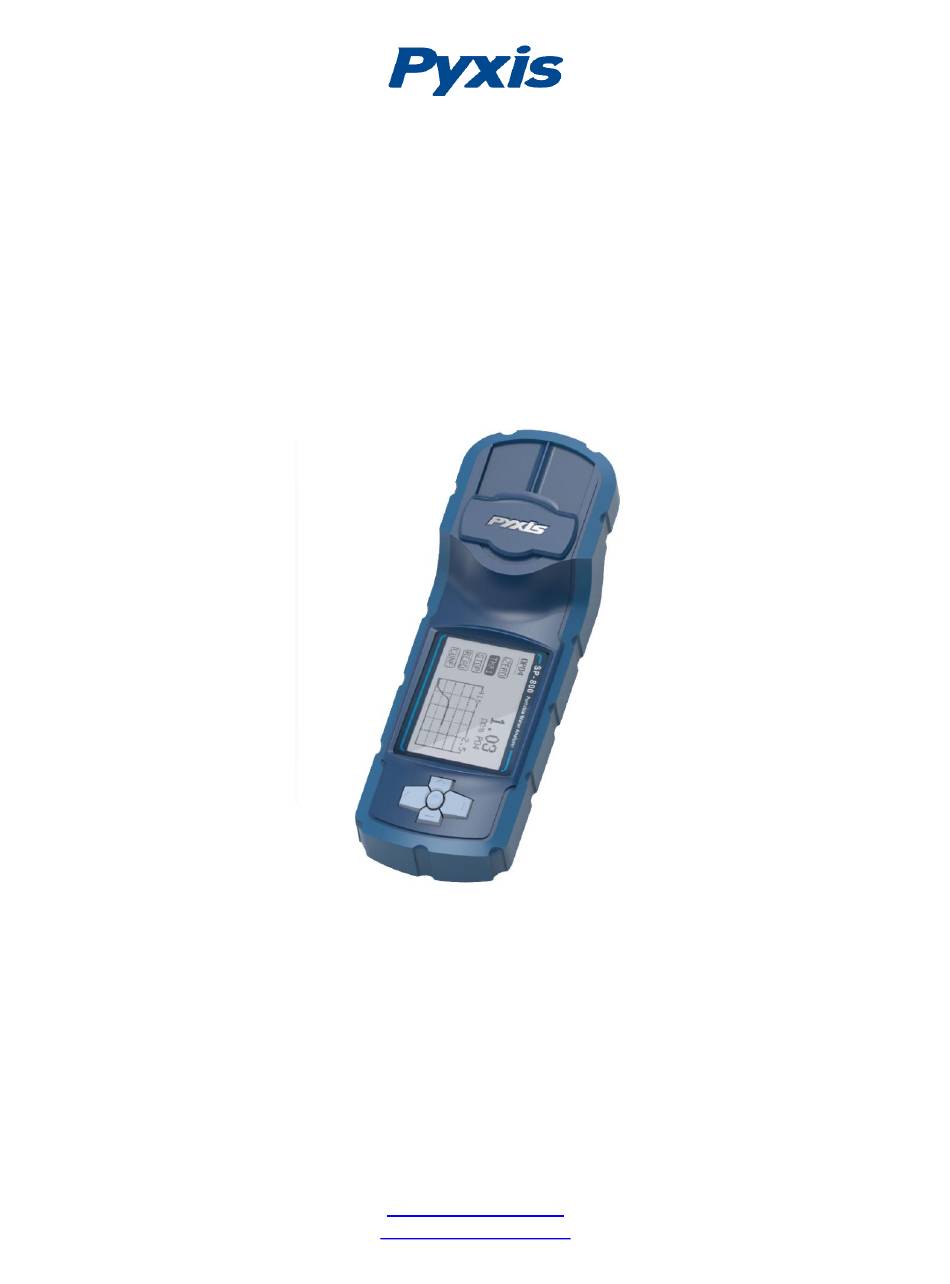

- Page 1 SP-800 Portable Water Analyzer Operation Manual Rev.B © Pyxis Lab, Inc 2017 All Rights Reserved Pyxis Lab, Inc 1729 Majestic Dr Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com service@pyxis-lab.com...
-
Page 2: Table Of Contents
Description of the Navigational Control Pad ................8 Turning on the SP-800 ........................8 Main Page ............................. 9 Turning off the SP-800 ........................9 The SP-800 Auto Power off ......................9 Auto LCD Power Saving ......................... 9 Colorimetric Measurement ......................... 10 Supported Methods ........................10 Select a Method .......................... - Page 3 Turbidity Calibration ........................18 Absorbance Measurement ......................... 19 16 mm Tube Adapter .......................... 20 Bluetooth Interface ..........................20 Install Software ........................... 21 Turn on SP-800 Bluetooth ......................21 Connect uPyxis to SP-800 ......................21 7.3.1 Upgrade Firmware ......................21 7.3.2 Add User Defined Colorimetric Methods ................
- Page 4 Pyxis Lab. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
-
Page 5: General Description
(-18 - 60°C) • Operation Temperature Range: 40 to 120 °F (4 - 49°C) • Humidity: 85% at 106 °F (41 °C) • Environmental: IP67, dustproof and waterproof Note: 1. Specifications are subject to change without notice with Pyxis’ continuous development. -
Page 6: Pyxis Major Features
Main features include: ⚫ The SP-800 is pre-calibrated for measuring turbidity in the range of 0 to 200 NTU. ⚫ Automatically select the primary wavelength according to the method selected and switches to the secondary wavelength to extend the primary measurement range. -
Page 7: Optional Accessories
The light shield cover should be in the closed position during storage, transportation, and measurements, especially during the turbidity. When turned on, the SP-800 carries out self-diagnosis including checking the performance of a variety of optical devices. The light shield door shall be at the closed position to shield interference from ambient light during self-diagnosis. - Page 8 Figure 2 Open and Close the Light Shield Cover Warning Magnetic sensitive devices, including but not limited to, credit cards, watches, hard disks, should be keep at a distance of at least 2 inches from the Light Shield Door to avoid possible damage and/or loss of information recorded.
-
Page 9: Start The Sp-800
SP-800 after the battery warning. The SP-800 battery compartment, shown in Figure 3, is on the back side of the instrument. Insert a small pad underneath the screen area to make the back-surface level when the instrument is turned upside down. -
Page 10: Main Page
You can navigate the main page menu and launch an operation by pressing on an icon. If battery voltage is too low for the instrument to work properly, the SP-800 will show a low battery warning message when it is being turned on If this happens, replace all four batteries. -
Page 11: Colorimetric Measurement
3 Colorimetric Measurement 3.1 Supported Methods A wide range of colorimetric methods is supported by the SP-800 analyzer and the number of them keeps increasing with continuous development of Pyxis. See corresponding Hach® methods in Appendix A. Table 2 List of Supported Colorimetric Methods... - Page 12 Abbreviated Method Method Name Description Range Name SiHR SiHR High range silica 75.0 ppm as SiLR SiLR Low range silica 1.60 ppm as AZOL Azole UV digestion for tolyltriazole 16.0 ppm and benzotriazole Barium sulfate turbidimetric 70.0 ppm method POLY Polymer Turbidimetric method for 13.0 ppm as...
-
Page 13: Select A Method
Note: Methods shown in the method selection pages include Hach© equivalent methods and Pyxis specific advanced methods. The table in Appendix A provides a brief description of Pyxis method names and their corresponding Hach® program number. Hach® reagents for 10 ml sample can be used for the test. -
Page 14: Single-Vial Procedure
3.4 Single-Vial Procedure 1. Place the sample vial filled with the water sample in the SP-800 sample vial compartment and press the ZERO button. The SP-800will display the page shown in Figure 7. 2. Take the sample vial out and add the reagent to the sample vial. -
Page 15: Multiple Timing Steps Method
Figure 8. Multiple Timer Method In order to show the concentration-time curve as shown in Figure 8 during the last timing step, The SP-800 must be zeroed using the prepared blank before the last timing step. Thus, the last timer button will not be selectable until the SP-800 has been zeroed using the prepared blank. -
Page 16: Low Range, Direct Reading Chlorine Dioxide, 0 To 35.0 Ppm
Direct Reading Bleach Percent Method, 0 to 15% The SP-800 has a 365nm UV LED and other deep blue LEDs that can be used to directly measure bleach concentration in the range of 0 to 15%. No reagent is required for the method and the displayed result is the sodium hypochlorite concentration in percentage. -
Page 17: Slope Calibration
The following steps are used to calibrate a method: Use a calibration standard of known concentration. Follow the steps required by the method and note the value reported by the SP-800. If the measured value differs from the known standard value, Press the CONFG button to launch the method configuration page. -
Page 18: Reagent Blank Calibration
2. Insert the sample vial to the sample vial compartment. 3. Slide the light shield cover to the closed position. 4. Press the TURB on the main page, then press the OK key, The SP-800 will start to measure the turbidity in the sample. -
Page 19: Turbidity Calibration
4.2 Turbidity Calibration 1. Fill the 10 ml sample vial to above 10 ml mark with the deionized water. 2. Insert the sample vial to the sample vial compartment. 3. Slide the light shield cover to the closed position. 4. Press the CAL on the main page, then choose the Turbidity calibration and press the OK button to launch the Turbidity calibration page. -
Page 20: Absorbance Measurement
Figure 14. High Range Turbidity Calibration 5 Absorbance Measurement The following steps are used to measure the absorbance values of a sample: 1. Press the ABS to launch the absorbance measurement page. 2. Place a vial filled with the blank sample in the sample vial compartment. Press the ZERO button to zero the method. -
Page 21: 16 Mm Tube Adapter
Press and hold the release key to pull the adapter up to remove it from the sample compartment. 7 Bluetooth Interface The SP-800 equipped with a Bluetooth interface, which allows a user to connect to SP-800 with a computer or a mobile device to do the following tasks: ⚫... -
Page 22: Install Software
Pyxis Bluetooth devices including SP-800 units. Click the discovered SP-800 to connect. If the SP-800 is being automatically powered off during connection, please push the OK key to power on the SP-800 again. The SP-800 will automatically turn on the Bluetooth and repeat the connection steps again in uPyxis. -
Page 23: Add User Defined Colorimetric Methods
Figure 18. System Information Add User Defined Colorimetric Methods Click User Method tap and click Read from Device to read all current default or user defined methods into uPyxis (figure 23). Select a method and clone a new method from the selected (figure 23). The parameters in the method can be edited and are defined as: No.: a sequence number, the user does not need to enter Name: the method name... -
Page 24: Download Datalog
Click Datalog tap to open the datalog page. Click Read Datalog List to retrieve the datalog list from the SP-800 (figure 20). Select a datalog entry from the list and then click Read Datalog to load the measurement values to uPyxis (figure 29). The datalog can be saved as a CSV file. -
Page 25: Maintenance
Use a soft cloth or lint free paper tissue to clean the sample vial compartment periodically. Remove debris, scale, and deposit promptly. Although The SP-800 is protected from water damage, it is a good practice to avoid water entering the sample vial compartment and becoming trapping underneath the navigational control pad. Deposits left... -
Page 26: Troubleshooting
If an unspecific error occurs or the SP-800 cannot be turned on, reboot the instrument by taking a battery out of the battery holder and re-install the battery. If the SP-800 has been idle for more than two months and cannot be turned on, replace all four batteries with four new AA alkaline batteries. - Page 27 10 Appendix A. Pyxis Method and Hach® Method Number (PRMP) Cross Reference Abbreviated Method Name Corresponding Hach © method Hach Method Method Number Name 8021 CL-F F-Chlorine Chlorine, Free, DPD, PRMP 9 8167 CL-T T-Chlorine Chlorine, Total, DPD, PRMP 9...
- Page 28 8023 Hexavalent chromium, 1,5- Diphenylcarbohydrzaide Method, PRMP 13 8024 CrTot Chromium total Alkaline Hypobromite Oxidation Method, PRMP15 8155 NH3S NH3Sal Ammonia Salicylate Method, PRMP 10171 NH2C NH2Cl Indophenol Method MonoChloramine, PRMP 110 8141 N2H4 N2H4 P-Dimethylaminobenzaldehyde Method for Hydrazine, PRMP 31 8149 MnLow Range...
