Summary of Contents for Pyxis PRISM RT-100

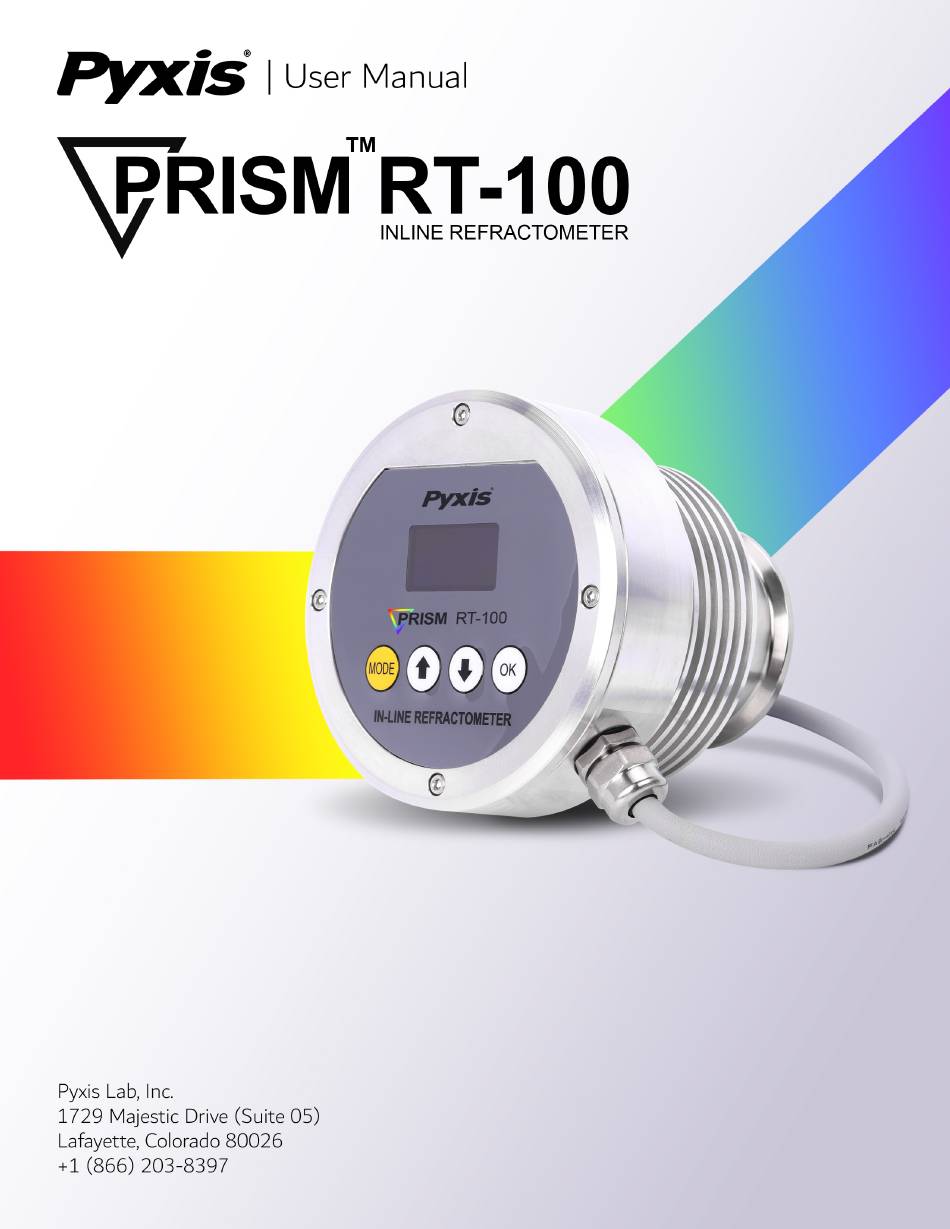

- Page 2 Prism RT-100 Online Digital Refractometer User Manual August 23, 2021 Rev. 1.03 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
-
Page 3: Table Of Contents
10 Sensor Maintenance and Precaution 10.1 Methods to Cleaning the Prism RT-100 ....... 22... - Page 4 Pyxis Lab, Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
-
Page 5: Introduction

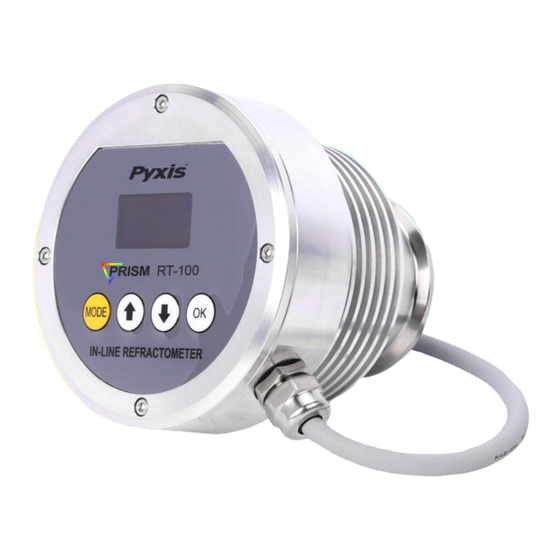

1 Introduction The Pyxis Prism RT-100 is an online digital refractometer that measures the refractive index of a liquid sample. This sensor provides a direct reading of highly accurate concentration values for a wide variety of water and process related applications. It is a stand-alone device capable of self-sustained operation, live data display, and data logging. -
Page 6: Specifications
4.33 × 4.57 inch (110 × 116 mm) Light Source Wet Materials Sapphire, 316L stainless steel Enclosure Rating IP-67 Regulation CE/RoHS With Pyxis’s continuous improvement policy, these specifications are subject to change without notice. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 7: Unpacking Instrument
Remove the instrument and accessories from the shipping container and inspect each item for any damage that may have occurred during shipping. Verify that all accessory items are included. If any item is missing or damaged, please contact Pyxis Lab Customer Service at service@pyxis-lab.com. 3.1 Standard Accessories RT-100 Prism Package (P/N 55105) •... -
Page 8: Optional Accessories
Figure 2. Prism RT-100 Sensor Dimensions (mm) Each Prism RT-100 is provided with a 316L stainless steel Tri-Clamp Inline Flow Assembly with 3/4-inch FNPT inlet/outlet flanges. An NPT plug is inserted into a portal opposite of the sensor eye for future automated sensor-eye cleaning accessories currently under development by Pyxis Lab. -
Page 9: Piping
Flange Tri-Clamp 2-inch Threaded Plug for Cleaning Device Install 4.2 Piping The Prism RT-100 with Tri-Clamp Flow Cell Assembly should be installed per the diagram provided in Figure 4. Be sure to avoid installations illustrated in Figure 5. Figure 4. Correct Installations Prism RT-100 User Manual service@pyxis-lab.com... -
Page 10: Wiring
The Prism RT-100 unit offers two (2) cable points of attachment, both terminated with a unique connector (Figure 6). The Prism RT-100 may be powered via a direct 24VDC supply source (via 8-Pin cable provided with the Prism RT-100) or by the optional accessory called Prism RT-100 Wall Outlet Power Supply Adapter Kit (P/N 56207). -
Page 11: Connecting Via Bluetooth
Connect the Prism RT-100 to the Pyxis MA-CR Bluetooth adapter and a 24 VDC power source according to the figures below. Figure 7 shows that the Prism RT-100 is powered by a controller through the 8-Pin cable provided with the Prism RT-100. Figure 8 shows the Prism RT-100 is powered by the Prism RT-100 Wall Outlet Power Supply Adapter (P/N: 56207) through the 2-Pin cable. -
Page 12: Instrument Overview
Figure 8. 24VDC Powered via 110VAC Wall Outlet through Prism RT-100 Wall Outlet Power Supply Adapter (P/N: 56207) 5 Instrument Overview 5.1 Key Functions Figure 9. Prism RT-100 Main Display Screen Table 5. Prism RT-100 Key Functions Function Description MODE Launch setup function associated with the current mode ↑... -
Page 13: Measurement Modes
5.2 Measurement Modes The Prism RT-100 measures the sample refractive index (nD) and temperature. Use the arrow keys to se- lect the concentration units that are calculated from nD and the temperatures with using the pre-loaded equations for Brix, MPG, MEG, and ALV. The main output of 4-20mA switches with the display switching. -
Page 14: Calibration
1. Clean the Prism RT-100 sapphire lens with soft tissue. 2. If any tenacious deposits are present on the sensor lens, you may pre-soak the sensor lens in Pyxis Probe Cleaning Solution (P/N: SER-01) for 10–15 minutes, then rinse with clean water and wipe with soft tissue prior to proceeding to air calibration. -
Page 15: Brix And Other Liquid Concentration Offset Calibration
This displayed liquid concentration unit value may be calibrated to a known solution. To do this: 1. Place the Prism RT-100 in the calibration liquid of a known concentration making sure the sensor is covered from ambient light. -
Page 16: Connecting To Upyxis® Mobile App
1. Open uPyxis® Mobile App. 2. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices. 3. If the connection is successful, the Prism RT-100 and its Serial Number (SN) will be displayed (Figure 23). 4. Press on the Prism RT-100 sensor image. -
Page 17: Calibration Screen And Reading
Calibration. Follow the screen instructions for each calibration step. The user may also preform a factory reset of all calibration values saved in the device by pressing Restore Factory and entering ”upyxis” into the prompt. Figure 24. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 18: Diagnosis Screen
NOTE The Prism RT-100 is programmed to store data at a frequency of once per minute with a maximum of 56 days storage capacity. The Diagnosis screen’s functions are described in table below: Table 6. -
Page 19: Device Info Screen
Desktop application. Double click the uPyxis.Setup.exe file to install. Figure 27. uPyxis® Desktop App installation Click Install to start the installation process. Follow the screen instructions to complete the USB driver and uPyxis® installation. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 20: Connecting To Upyxis® Desktop App
3. On uPyxis® Desktop App, click Device Connect via USB-Bluetooth (Figure 28). 4. If the connection is successful, the Prism RT-100 and its Serial Number (SN) will be displayed in the left pane of the uPyxis® window. NOTE After the sensor and Bluetooth is powered up, it may take up to 10 seconds for the adapter to establish the wireless signal for communication. -
Page 21: Information Screen
Desktop App will default to the Information screen. On the Information screen you can set the information description for Device Name, Product Name, and Modbus Address, then click Apply Settings to save. Figure 29. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 22: Calibration Screen
The user may also preform a factory reset of all calibration values saved in the device by pressing Restore Factory Settings and entering ”upyxis” into the prompt. The screen also displays the reading of the device. The reading refresh rate is every 4 seconds. Figure 30. Prism RT-100 User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 23: Diagnosis Screen
NOTE The Prism RT-100 is programmed to store data at a frequency of once per minute with a maximum of 56 days storage capacity. The Diagnosis screen’s functions are described in table below: Table 7. -
Page 24: Outputs
80 °C 9.2 Communication using Modbus RTU The Prism RT-100 sensor is configured as a Modbus slave device. In addition to the nD, %Bx, %MEG, %MPG, %ALV, and temperature values, many operational parameters, including warning and error messages, are available via a Modbus RTU connection. Contact Pyxis Lab Customer Service (service@pyxis-lab.com) for more information. -
Page 25: Sensor Maintenance And Precaution 10.1 Methods To Cleaning The Prism Rt-100
10.1 Methods to Cleaning the Prism RT-100 Soak the lower half of the Prism RT-100 sensor in 100 mL inline sensor cleaning solution for 15-minutes. If the surface is not entirely clean, continue to soak the sensor for an additional time until clean. Lightly wipe the sensor lens with a soft tissue.
