- Page 1 SP-395N Handheld NDSA Fluorometer User Manual Water Professionals Deserve Better Tools. www.pyxis-lab.cn...
- Page 2 SP-395N Handheld NDSA Fluorometer User Manual July 29, 2022 Rev.1.2 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2022 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
-
Page 3: Table Of Contents
Table of Contents Introduction ..........................2 Main Features ........................... 2 Specifications ..........................3 Unpacking Instrument ........................3 Standard Accessories ........................ 3 Optional Accessories ........................ 3 Installation ............................ 4 Battery Installation ........................4 Instrument Overview ........................5 Control Keys ..........................5 Main Module On/Off ........................ - Page 4 10.4 Datalog Screen ........................15 10.5 Setting Screen ......................... 16 Device Maintenance and Precaution ..................16 11.1 Maintenance Best Practices and Quick Tips ................16 11.2 Methods for Cleaning the SP-395N ..................17 11.3 Storage ............................ 17 Contact Us ..........................17...
- Page 5 A Repair Authorization (RA) Number must be obtained from Pyxis Technical Support before any product can be returned to the factory. Pyxis will pay freight charges to ship replacement or repaired products to the customer. The customer shall pay freight charges for returning products to Pyxis. Any product returned to the factory without an RA number will be returned to the customer.
-
Page 6: Introduction

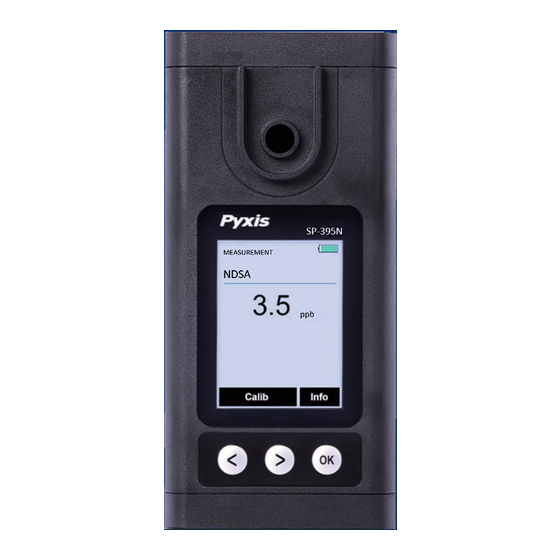

1 Introduction The SP-395N handheld NDSA fluorometer is patented to Pyxis Lab Inc. and not offered anywhere else in the world. This device utilized UV fluorescence to detect NDSA content in water. The results are instantaneous and, with proper application understanding, are highly reliable. It is important to note that this technology is not wet chemistry testing for NDSA content and variations may be observed depending on the quality of the water sample. -
Page 7: Specifications
• MA-NEB (1) USB Bluetooth Adapter for Laptop or PC use with uPyxis Desktop • 3 mL Transfer Pipet • User Manual available online at https://pyxis-lab.com/support/ 3.2 Optional Accessories The following optional accessories can be ordered from Pyxis Customer Service (order@pyxis-lab.com) or Pyxis E-Store at https://pyxis-lab.com/shop/. Table 2. Accessory Name Part Number... -
Page 8: Installation
The SP-395N battery compartment, shown in Figure 1, is on the back side of the instrument. Batteries are held in place by a cover secured with two Phillips-head screws. -
Page 9: Instrument Overview
To turn off the SP-395N: Press and hold for about three seconds. Release when the LCD display turns off. The SP-395N turns itself off after 60 seconds without user interaction detected. This is done to conserve battery life. NOTE This auto-time off setting may be customized by the user as desired through the uPyxis®... -
Page 10: Measurement
3 mL Transfer Pipet to best avoid air bubbles. Before beginning a measurement, use the sample water to rinse the sample cell at least three times. Allow 5–10 seconds for the SP-395N to stabilize. The values will be displayed in if a stable value is reached (Figure 3). -
Page 11: Calibration
7 Calibration NDSA calibration for the SP-395N requires deionized (DI) water and a standard solution. NDSA calibration uses 50 & 100 ppb NDSA standard solutions (see the Optional Accessories section). 7.1 NDSA Calibration 1. Rinse the sample cell three times with DI water. Fill the sample cell with DI water.. -
Page 12: Device Information And Diagnosis
Figure 8. 8.1 Sample Cell Cleanliness Check The SP-395N is designed to provide reliable and accurate measurement on NDSA. Heavy fouling will prevent the light from reaching the sensor, resulting in inaccurate readings. It is suggested that the SP- 395N be checked for fouling and cleaned on a monthly basis. Heavily contaminated waters may require more frequent cleanings. -
Page 13: Bluetooth Connection To Devices
The SP-395N uses a built-in Bluetooth Low Energy Connection (BTLE) to connect wirelessly to a smart phone via the uPyxis® Mobile App or to a computer via the included Bluetooth Adapter (P/N: MA-NEB) and the uPyxis® Desktop App. To allow the SP-395N to connect via Bluetooth with other devices follow the steps below: 1. -
Page 14: Factory Reset
8.3 Factory Reset Use the following steps to restore all device parameters to factory default: 1. Power on the SP-395N by pressing( 2. Press Info ( ) to launch the DEVICE INFORMATION screen. 3. Press Diagnosis ( ) to launch the SYSTEM DIAGNOSIS screen. -
Page 15: Use With Upyxis® Mobile App
2. Open uPyxis® Mobile App. 3. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices. 4. If the connection is successful, the SP-395N and its Serial Number (SN) will be displayed (Figure 15). 5. Press on the SP-395N image. -
Page 16: Setting Screen
The firmware update process takes some time and will require the SP-395N to stay within range (approximately 10 ft without obstructions) for the entire duration of the update. Once the update is complete, the SP-395N will reboot which will disconnect the SP-395N from the uPyxis® Mobile App. SP-395N User Manual service@pyxis-lab.com... -
Page 17: Use With Upyxis® Desktop App
Desktop application. Double click the uPyxis.Setup.exe file to install. Figure 18. Click Install to start the installation process. Follow the screen instructions to complete the USB driver and uPyxis installation. SP-395N User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 18: Connecting To Upyxis® Desktop App
The firmware update process takes some time and will require the SP-395N to stay within range (approximately 10 ft without obstructions) for the entire duration of the update. Once the update is complete, the SP-395N will reboot which will disconnect the SP-395N from the uPyxis® Mobile App. SP-395N User Manual service@pyxis-lab.com... -
Page 19: Datalog Screen
Figure 20. 10.4 Datalog Screen From the Datalog screen, the user can view, delete, and export the internal log files of the SP-395N by clicking Read Datalog List and selecting the desired datalog (these are separated by month). The SP-395N... -
Page 20: Setting Screen
11 Device Maintenance and Precaution 11.1 Maintenance Best Practices and Quick Tips For greatly increased working life and ease of use of the SP-395N follow the list of maintenance best practices and quick tips below: • Rinse the sample cell at least three times with the desired solution before turning on. -
Page 21: Methods For Cleaning The Sp-395N
Figure 23. Handheld Device Cleaning Solution Kit To clean the SP-395N pour cleaning solution into the sample cell for 10 minutes. Rinse the sample cell with distilled water and use the Cleanliness Check (see the Sample Cell Cleanliness Check section) to confirm that the SP-395N is clean.
