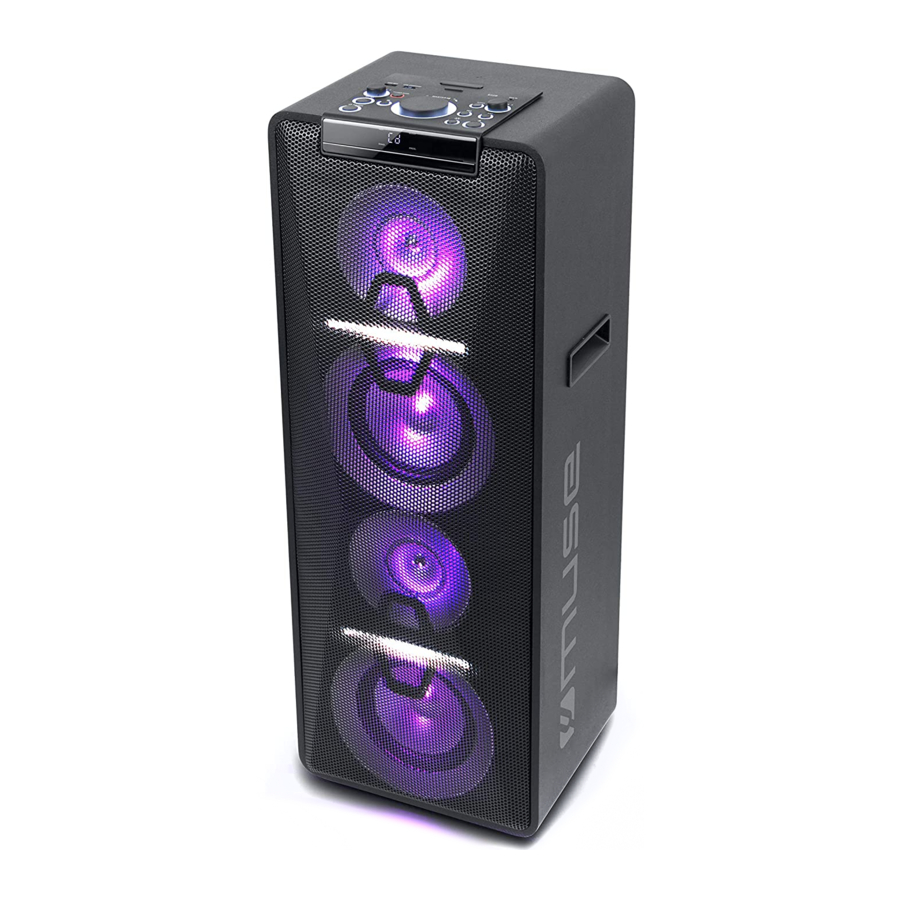

Muse M-1950 DJ - Bluetooth Speaker Manual

LOCATION OF CONTROLS

1. : To turn unit on/off
   SOURCE: to select function mode:
   Bluetooth, CD, USB, AUX-1 or AUX-2.
2. : to stop playback
3. : play/pause
   :Bluetooth pairing / Disconnect Bluetooth connection
4. : to adjust the MIC volume
5. POWER BASS: To enhance the bass power
6. USB port for MP3 playback
7. USB port for charging 5V 1A
8. : to eject the cradle
9. NFC Tag
10. AUX IN jack (3.5MM)
11. : To adjust master volume
12. AUDIO: To adjust bass / treble level; to turn loudness function on/off
13. : ECHO control

14. , : Skip/search
15. : To open / close the disc tray
16. Lighting control button
17. Bluetooth indicator
18. Remote sensor
19. RANDOM indicator
20. PROGRAM indicator
21. LED display
22. REPEAT indicator
23. SLEEP indicator
24. Tweeters
25. Loud speaker
26. Side handles
27. Back handle
28. Wheels
29. Guitar jack
30. MIC jacks
31. AUDIO IN L/R RCA jacks
32. AC cord

CRADLE FOR TABLET OR SMARTPHONE

1. Push to eject the cradle.

2. Place your tablet or smartphone on the cradle.


REMOTE CONTROL

R1. : To turn unit on/off
R2. : To mute or restore sound
R3. SOURCE: To select function mode: Bluetooth, CD, USB, AUX-1 or AUX-2.
R4. / : To adjust master volume
R5. EQ: To select desired sound effects: FLAT/ CLASSIC/ ROCK/ JAZZ/ POP
R6. Lighting control button
R7. DIM. (Dimmer): To adjust display brightness
R8. AUDIO: To adjust bass/treble; to turn loudness function ON/OFF
R9. SLEEP: To select sleep time.
R10. : To stop playback
CLOCK: To set clock time
R11. : To open / close the disc tray
R12. / : Folder up / down
R13. , : Skip/search
R14. : Play/Pause
: Bluetooth pairing / Disconnect Bluetooth connection
R15. REP.: To repeat playback
R16. RAND. To turn on/off random play function
R17. PROG. To program playback sequences
R18. 0-9, +10 buttons

INSTALLING BATTERY

Insert 2 "AAA/ UM4" batteries to the remote control prior to use. Make sure to match their polarities (+/-) to the markings inside the compartment.

Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

• Never recharge the batteries, apply heat to them or take them apart.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

POWER SUPPLY

Plug the power cord into 100-240V 50/60Hz AC outlet.
Note:
In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 2 hours, the unit will automatically switch to Standby mode.

SETTING TIME

1. In standby mode, press CLOCK once to enter time setting mode and the hour digits flash.
2. Press / on unit or / on remote control to set the hour value. Press CLOCK to confirm and minute digits flash.
3. Press / on unit or / on remote control to set the minute value and press CLOCK again to confirm.

NOTE: If during the adjustment time no key is activated in 25 seconds, the current display will be automatically stored.

AUDIO CONTROLS

Press AUDIO button to select Bass/ Treble/ Loudness function, the corresponding icon will appear on display, then rotate control on unit or press / on remote control to set bass / treble level, or turn loudness function on/off. Release the button to confirm the setting.

POWER BASS

It is a separated bass mode can be selected when there is audio signal.

EQ

Press EQ button on remote control to toggle among the different sound effects (FLAT/ CLASSIC/ ROCK/ JAZZ/ POP). The selection will show on display for few seconds.

TURNING UNIT ON/OFF

1. Press button to turn on the unit.
2. Press and hold button on unit or press button once on remote control to turn off the unit.

SELECTING FUNCTION

The function (BLUETOOTH/ CD/ USB/ AUX1/ AUX2) is selected by pressing SOURCE button repeatedly.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show " " for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly, indicating it is in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "M-1950DJ" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. If the unit is paired properly, a tone voice can be heard, Bluetooth indicator will light up. If it failed, the Bluetooth indicator will blink rapidly.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.
If the pairing fails, perform the following:
Press and hold the button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-1950DJ" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1950DJ's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with /
4. Adjust the volume using on unit or / on remote control. You can also adjust the volume on the device to which you are paired.
   Note: The Bluetooth indicator will light solid blue during playback.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show " " for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly, indicating it is in pairing mode.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag of this unit until you hear a beep sound from this unit. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note: The operational range between the main unit and a NFC device is approximately 10 meters.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1950 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/ EU. The declaration of conformity may be consulted at www.muse-europe.com

LISTENING TO DISC

1. When the unit is ON, press SOURCE button repeatedly to select CD mode. The display will show for a few seconds. Press to open the disc tray. Insert a disc with label side facing up. Press again to close the disc tray. (Note: If there is no disc inserted, the display will show .)
2. After a few seconds, the total number of track will appear on display for a few seconds and playback starts automatically.

USB PLAYBACK

1. Connect an USB device to the USB MP3 port on unit.
2. Press SOURCE button repeatedly to select USB mode. The display will show " " for a few seconds and playback will start automatically.
3. Select desired track with / .

Notes:

• If there is no USB inserted, the display will show .
• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAY MODES (CD/MP3)

Repeat playback

Press REP. button on remote control repeatedly to select a play mode, Repeat indicator will light up.

• Repeat One: display shows
• Repeat folder: display shows . (MP3 only)
• Repeat All: display shows

To cancel repeat playback, press REP. button repeatedly until display shows and repeat indicator disappears.

Random playback

Press RAND. button on remote control. Random indicator lights up. It will play all tracks in random order. Press RAND. button again to cancel this function. Random indicator lights off.

Program playback

1. In stop mode, press PROG. button on remote control. The display will show " " for a few seconds and change to " ". Program indicator lights up.
2. Select the desired track with / , then press PROG. button to conform.
3. Repeat above steps to program up to 32 tracks for CD and 99 tracks for MP3.
4. Press to start program playback.
5. Press button on remote control once to stop the program playback. Press twice to cancel this function.

Select a folder (mp3 only)

• Press on remote control to select the first track of next folder of your current disc or USB.
• Press on remote control to select the first track of previous folder of your current disc or USB.

By number buttons +10, 0-9

Use the number buttons to input the track number, and it will start playback from the selected track automatically.
If you want to input the track number bigger than 9, use the +10, 0-9 button.
Example 1: to select the 10th track, firstly press 1 then press 0
Example 2: to select the 14th track, firstly press 4 then press +10 (4+10=14)
Example 3: to select the 25th track, firstly press 5 then press twice +10 (5+10+10=25)

CONNECTING AUXILIARY SOURCE

To AUDIO IN RCA jacks

1. Connect your auxiliary source (e.g. DVD player) to the AUDIO IN L/R jacks on back of unit with RCA audio cable (cable not included).
2. Press SOURCE button repeatedly to select AUX 1 mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUDIO IN L/R jacks.

To 3.5mm AUX IN jack

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable included).
2. Press SOURCE button repeatedly to select AUX 2 mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

SLEEP FUNCTION

In sleep mode, the unit will turn off automatically after a specified time.

You can select duration in minutes before the unit turns off automatically.

1. Press SLEEP on remote control repeatedly to select 90-60-45-30-15-10 or 5 minutes of listening. The SLEEP Indicator lights up.
2. To cancel the sleep function, repeatedly press SLEEP button until "00" is displayed. The SLEEP indicator lights off.

Note:

1. Sleep time can only be set when the unit is turned ON.
2. Press SLEEP button to check the remaining sleep time.

DIMMER

Press DIM. button on remote control to select the brightness of the screen: high, low or off.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A) for recharging your mobile device (e.g. Smartphone, tablet, etc.)
Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

GUITAR PLAYBACK

1. Plug your electronic guitar into the GUITAR jack on the unit.
2. Press button to turn on the unit.
3. Start play your guitar and the sound will be output from the unit.
4. Adjust the master volume to desired level.
5. To stop playback, disconnect your guitar from the GUITAR jack.

SINGING THROUGH MIC JACK

1. Sing along with the music by plugging in the provided microphone into either one of the MIC jacks on the unit.

Notes:

* Rotate the directly to adjust the volume as desired.
* If the microphone is placed near the loudspeaker, a howling effect (acoustic feedback) may occur. If this happens, place microphone away from the loudspeaker.

Tapping or dropping the microphone can permanently damage your microphone. Resist the urge to swing the microphone around by the cord.

2. ECHO: adjust the' to enhance the singer's voice for a concert hall effect.

USING THE STROBE /COLOR LIGHT

1. In standby mode, press button to turn on the color light, and multiple color change to achieve a color cycle effect. Press the button again to settle down the light, repeatedly operate to select desired color. Press and hold the to turn off the light.

Note: The strobe light cannot work in standby mode.

2. When the unit is on, repeatedly press button to select the lighting mode:

• Both color light and strobe light will be on, and change along with music.
• Only color light will be on and change along with music.
• Only strobe light will be on and change along with music.
• Light off.

TECHNICAL SPECIFICATION

GENERAL

POWER SUPPLY: AC100-240V 50/60Hz
Consumption: 80W

BLUETOOTH

Bluetooth Version: V4.1 with EDR
Bluetooth: 2.402-2.48GHz
RF Output Power: -3.047 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

TROUBLE SHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Make sure unit is connected to AC power.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-1950DJ's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

MORE INFORMATION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

The Caution mark is located at the back of the device.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France

Documents / Resources

References

• MUSE Electroménager - Découvrez la collection ! - MUSE

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Muse M-1950 DJ - Bluetooth Speaker Manual
