1
Overview
The DS90LV047-48AEVM is an evaluation module designed for performance and functional evaluation of
the Texas Instruments DS90LV047A 3-V LVDS Quad CMOS Differential Line Driver and DS90LV048A 3-
V LVDS CMOS Differential Line Receiver. With this kit, users can quickly evaluate the output waveform
characteristics and signal integrity supported by the DS90LV047A and DS90LV048A. Header pins allow
access to the DS90LV047A and DS90LV048A inputs and outputs and also facilitate connection to lab
equipment or user systems for performance evaluation.
SNLU195 – February 2016
Submit Documentation Feedback
DS90LV047-48AEVM Evaluation Board

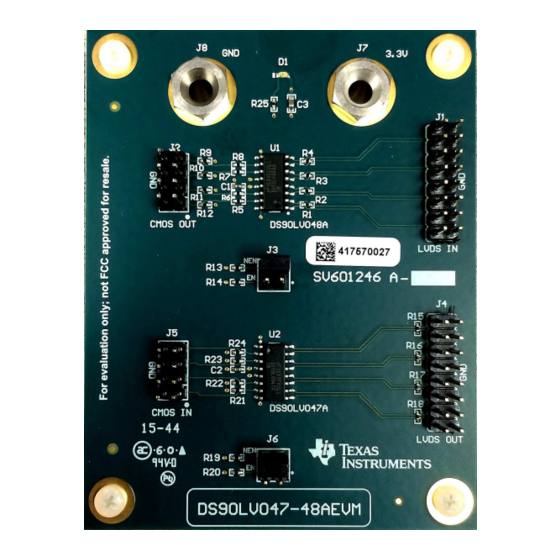

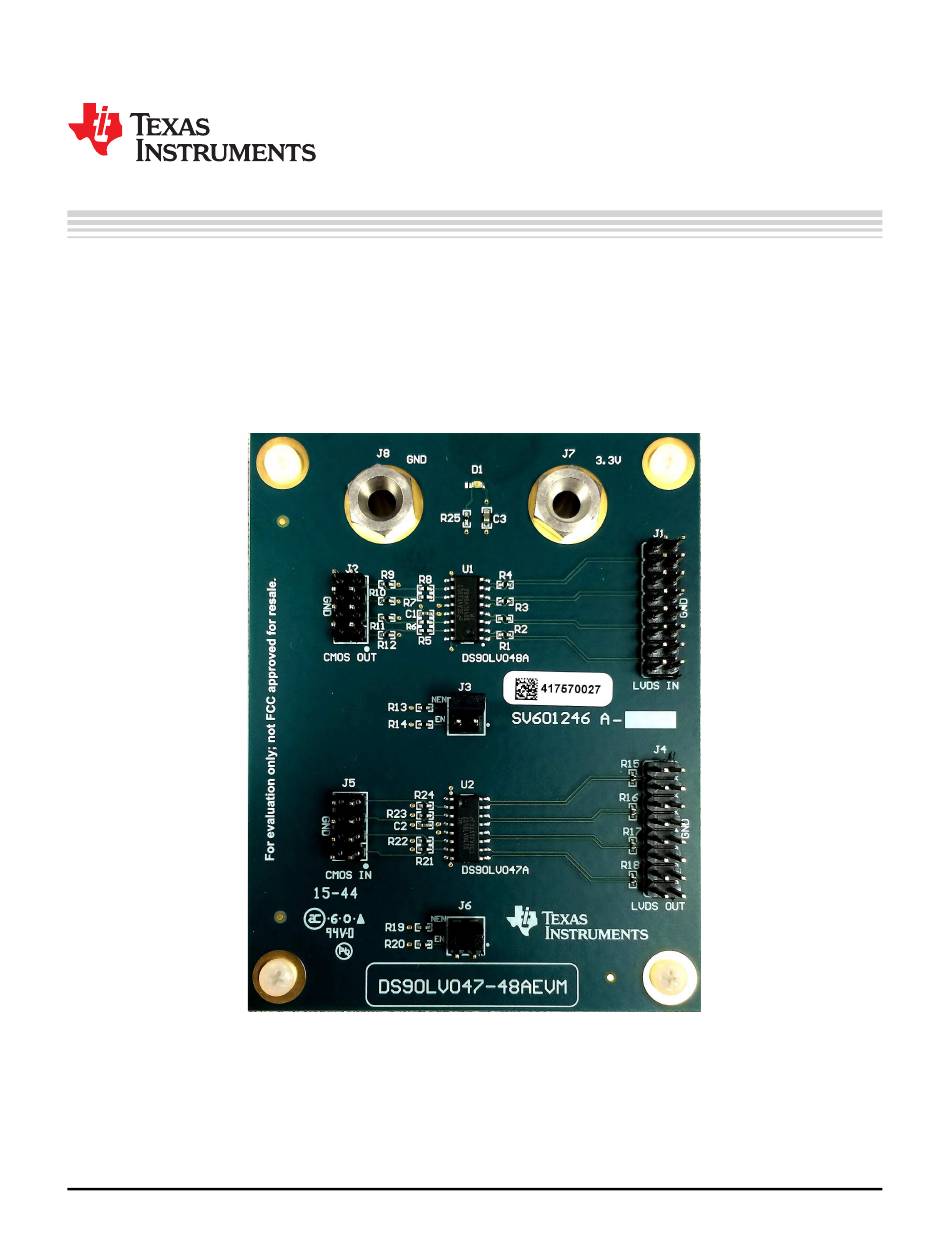

Figure 1. DS90LV047-48AEVM
Copyright © 2016, Texas Instruments Incorporated
User's Guide
SNLU195 – February 2016
DS90LV047-48AEVM Evaluation Board
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS90LV047-48AEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments DS90LV047-48AEVM

Summary of Contents for Texas Instruments DS90LV047-48AEVM

  • Page 1 DS90LV047-48AEVM Evaluation Board Overview The DS90LV047-48AEVM is an evaluation module designed for performance and functional evaluation of the Texas Instruments DS90LV047A 3-V LVDS Quad CMOS Differential Line Driver and DS90LV048A 3- V LVDS CMOS Differential Line Receiver. With this kit, users can quickly evaluate the output waveform characteristics and signal integrity supported by the DS90LV047A and DS90LV048A.
  • Page 2 Medical/Health • Multi-Function Printers • Factory Automation and Control • EPOS/ECR/Cash Drawer Ordering Information EVM ID Device ID Device Package DS90LV047-48AEVM DS90LV047A, DS90LV048A SOIC DS90LV047-48AEVM Evaluation Board SNLU195 – February 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 3 Setup The DS90LV047A is a LVDS Quad CMOS Differential Line Driver, and the DS90LV048A is a LVDS Quad CMOS Differential Line Receiver. When operating the DS90LV047-48AEVM, jumper setting definitions can be referenced in Table 1, while signal input and output connection descriptions can be found in...
  • Page 4 Setup www.ti.com Figure 3. DS90LV047-48AEVM Input and Output Header Connections Hardware Description and Setup For hardware setup and connections, reference the diagrams in Figure 3 Figure 1. Connect a 3.3 V DC power supply (30 mA max) to the EVM.
  • Page 5 Double termination should be avoided, since this reduces the output amplitude and noise margin. By factory default, the DS90LV047-48AEVM comes with stuffed termination resistors R1-R4 on the DS90LV048A inputs and stuffed termination resistors R15-R18 on the DS90LV047A outputs.
  • Page 6 Setup www.ti.com DS90LV047-48AEVM Performance Plots The following plots show typical waveforms measured on the DS90LV047-48AEVM inputs and outputs using the hardware setup in Figure 4. For these measurements, the following parameters were used: • Operating Frequency: 200 MHz (400 Mbps) •...
  • Page 7 3V LVDS Quad CMOS Differential Line M16A_N Receiver, 16-pin Narrow SOIC, Pb-Free DS90LV047ATM/NOPB 3V LVDS Quad CMOS Differential Line M16A_N Driver, 16-pin Narrow SOIC, Pb-Free SNLU195 – February 2016 DS90LV047-48AEVM Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 8 Schematic www.ti.com Schematic DS90LV047-48AEVM Evaluation Board SNLU195 – February 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 9 EVM Layout www.ti.com EVM Layout Figure 9 Figure 10 show the DS90LV047-48AEVM layout. The DS90LV047A and DS90LV048A inputs and outputs can be accessed via header pins. Figure 10. DS90LV047-48AEVM Bottom Layer Figure 9. DS90LV047-48AEVM Top Layer SNLU195 – February 2016...
