ON Semiconductor AP0101AT User Manual

AP0101AT2L00XPGAH-GEVB
AP0101AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2× system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 2× Controlled MClk
♦
•
Two Wire Serial Interface
•
Parallel Interface
•
HiSPi (High Speed Serial Pixel) Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2015
September, 2015 − Rev. 0
Figure 2. Block Diagram of AP0101AT2L00XPGAH−GEVB
EVAL BOARD USER'S MANUAL

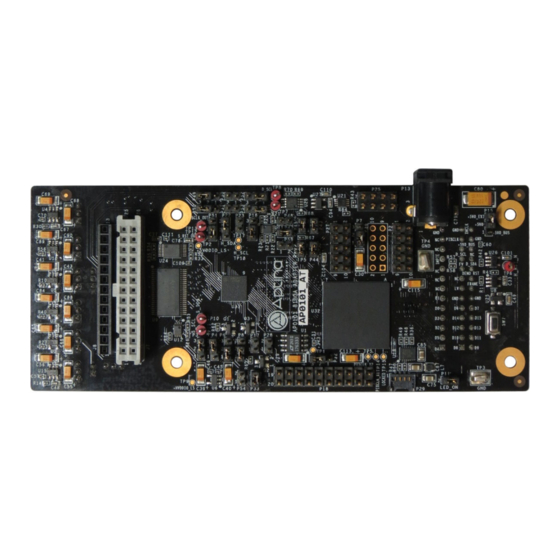

Figure 1. AP0101AT Evaluation Board
