Receiver Wiring - Haltech TMS-4 Quick Start Manual

Rear View, Wire Side
Rear View, Receiver Side

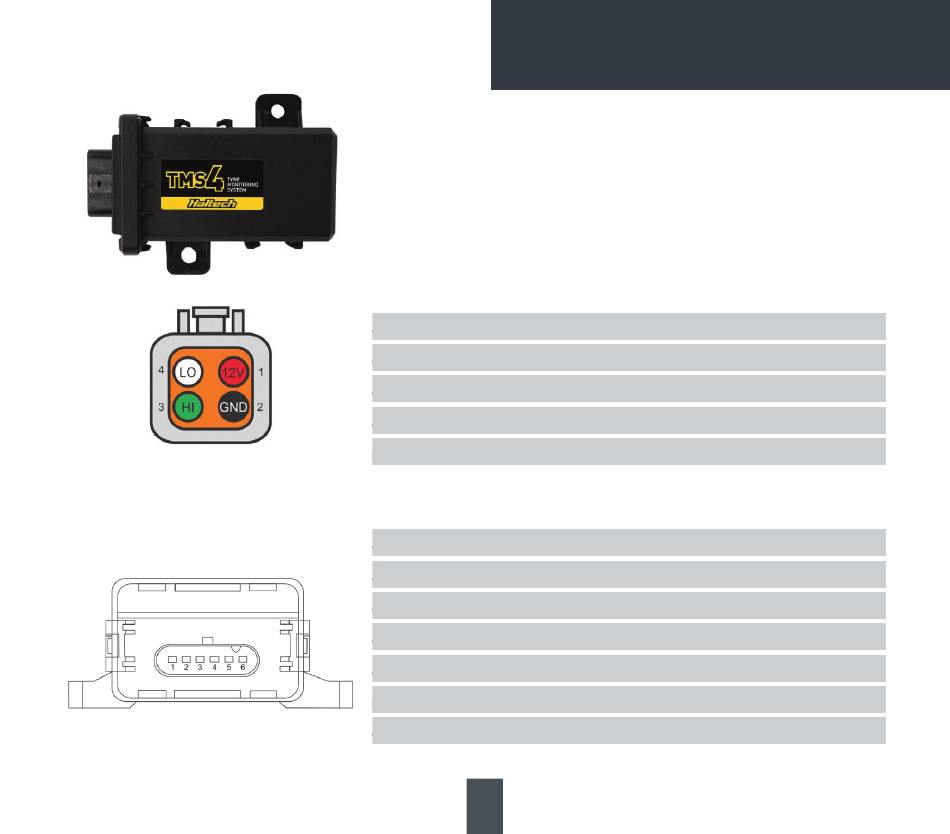

Receiver wiring

The Haltech TMS-4 receiver uses a 6-pin TE MCON wiring connector.
Both kits are supplied with a plug'n'play TE MCON to DTM adaptor cable,
terminated with a four-pin DTM-4 connector.
CAN Connection: DTM-4 receptacle
Pin Number Connection
1
+12V Supply
2
Battery Ground
3
CAN High
4
CAN Low
CAN Connection: TE MCON Connector
Pin Number Connection
1
CAN Low
2
CAN High
3 -
4
-
5
+12V Supply
6 Battery Ground
9
TMS-4 WIRING CONNECTIONS
Wire Colour
Red
Black
Green
White
Wire Colour
White
Green
-
-
Red
Black
