TMS-4 OVERVIEW
The Haltech TMS-4 is a simple, plug-and-play way to
monitor tyre pressures through your Haltech ECU.
The TMS-4 system is available in two kit forms, with
different tyre pressure sensors. These can be mounted
inside the tyre (HT-011600) or externally (HT-011601).
Both sets of sensors are able to warn of air leaks,
temperature variations, and when the pressure is over
or under a set level.
The external pressure sensors provided with the TMS-4
External Sensor Kit (HT-011601) can be fitted directly to
the valves on a car's tyres without the need to remove
the tyres.

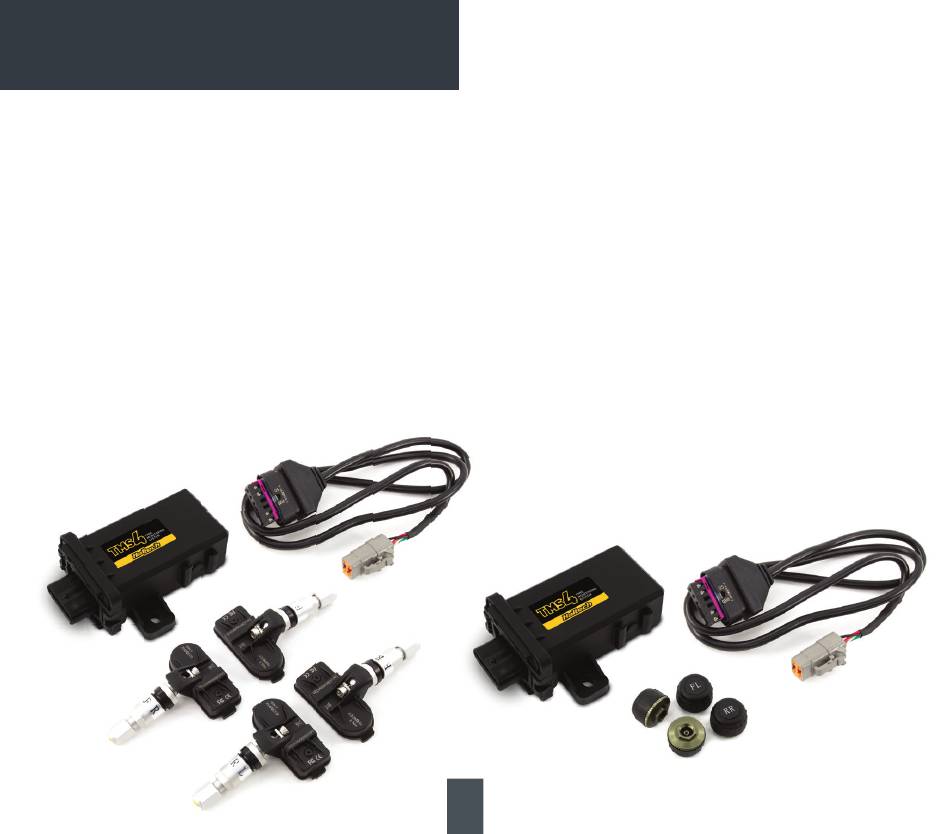

Haltech TMS-4 with internal sensors
Part No: HT-011600
• Plug'n'Play with Haltech ECUs using NSP or
ESP software packages
• Receiver operating temperature:
-40°C to 85°C (-40°F to 185°F)
• Receiver environmentally sealed to IP67 standard
• Internal sensors environmentally sealed to
IP67 standard (HT-011600)
• External sensors environmentally sealed to
IP69 standard (HT-011601)
• Sensor operating temperature:
-40°C to 125°C (-40°F to 257°F)
• Capable of reading up to 116psi air pressure
Haltech TMS-4 with external sensors
Part No: HT-011601
