TMS-4 SETUP
Sensor installation: External
1. Remove the valve cap from the valve
2. Inflate tyre to desired pressure
3. Thread the anti-theft lock nut onto the valve
4. Install the sensor in the corresponding tyre
according to the position sticker on the sensor
5. Tighten the lock nut using the spanner provided
6. Check for leaks with soapy water

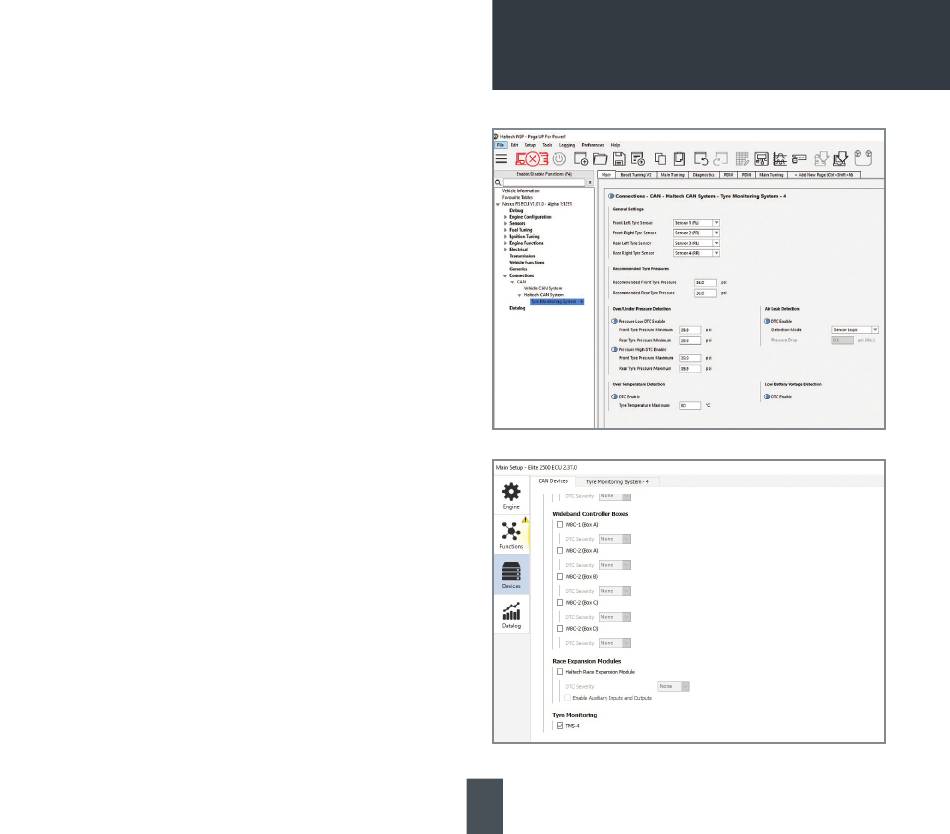

Enabling the TMS-4: NSP software
In NEXUS series ECUs the receiver is enabled through
Connections > CAN > Haltech CAN System: Tyre
Monitoring (TMS-4 Enable).
It should also appear in the menu tree once detected on
the Haltech CAN Bus and enabled from there.
Enabling the TMS-4: ESP software
In Elite series ECUs the receiver is enabled via the
Main Setup (F4 page), then Devices: Tyre Monitoring
(TMS-4 Enable).
Once enabled it will appear next to CAN Devices.
