88 5180 08
Arts & Crafts
Media Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

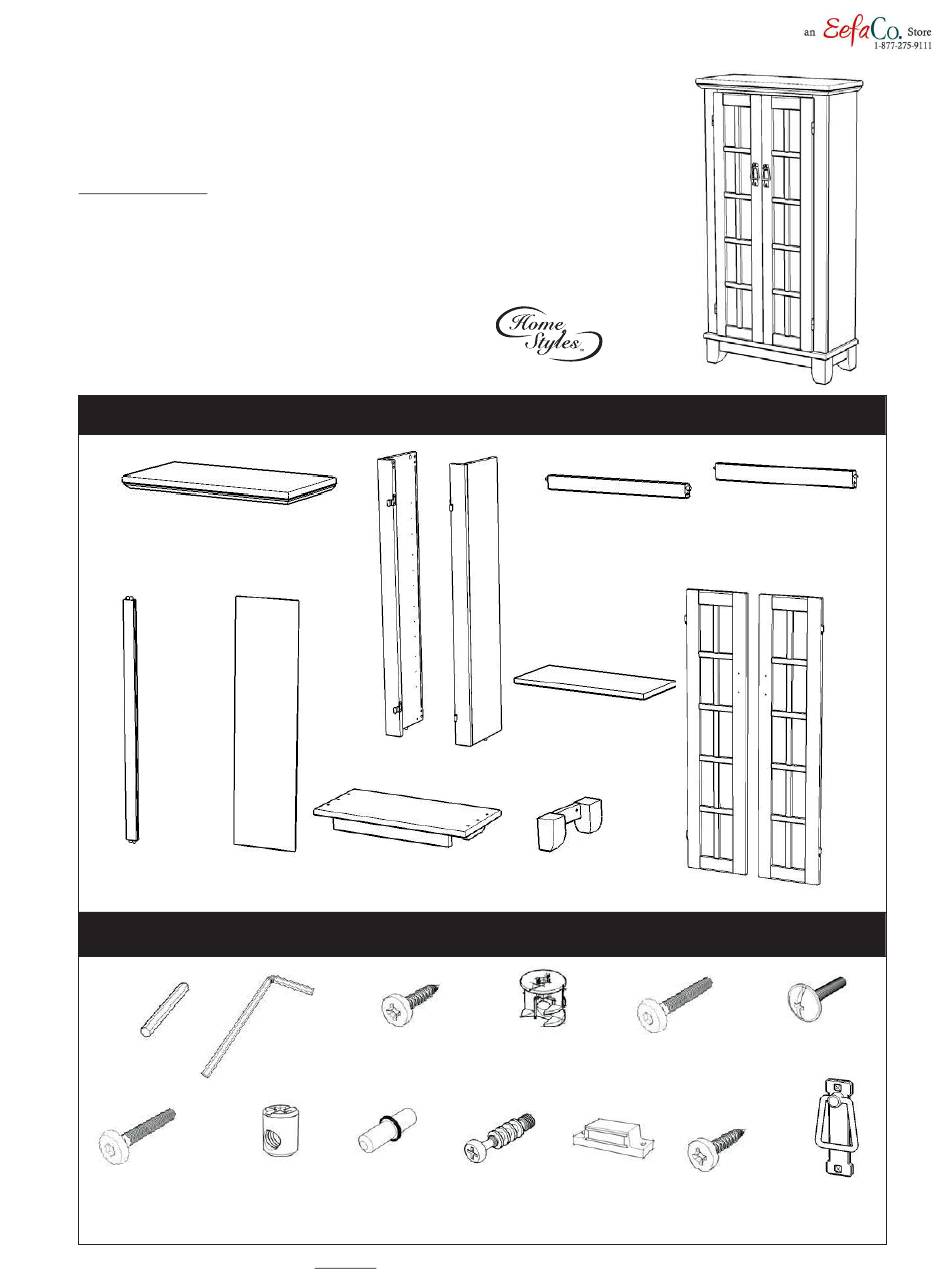

Part List
A.
Top
1 pc.
G.
F.
Back Panel
Back Piece
2 pcs.
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Head Cap Bolt (long)
Cross Dowel
4 pcs. (+1 extra)
4 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 pc.
H.
Base
1 pc.
Hex Wrench
Wood Screw
1 pc.
for Back Panel
8 pcs. (+1 extra)
Adjustable Pin
16 pcs. (+2 extra)
Casual Attire For Today's Home
C.
Side Panel
1 pc.
J.
Shelf
4 pcs.
I.
Leg
2 pc.
Cam Lock
Head Cap Bolt
10 pcs.(+1 extra)
4 pcs. (+1 extra)
Cam Lock Screw
Magnet
10 pcs.(+1 extra)
4 pcs.
D.
Front Rail
Back Stretcher
1 pc.
K.
Door
1 pc.
Machine Screw
4 pcs.
Door
Wood Screw
Pull Handle
for Megnet
2 pcs.
8 pcs. (+1 extra)
E.
2 pcs.
L.
Door
1 pc.
