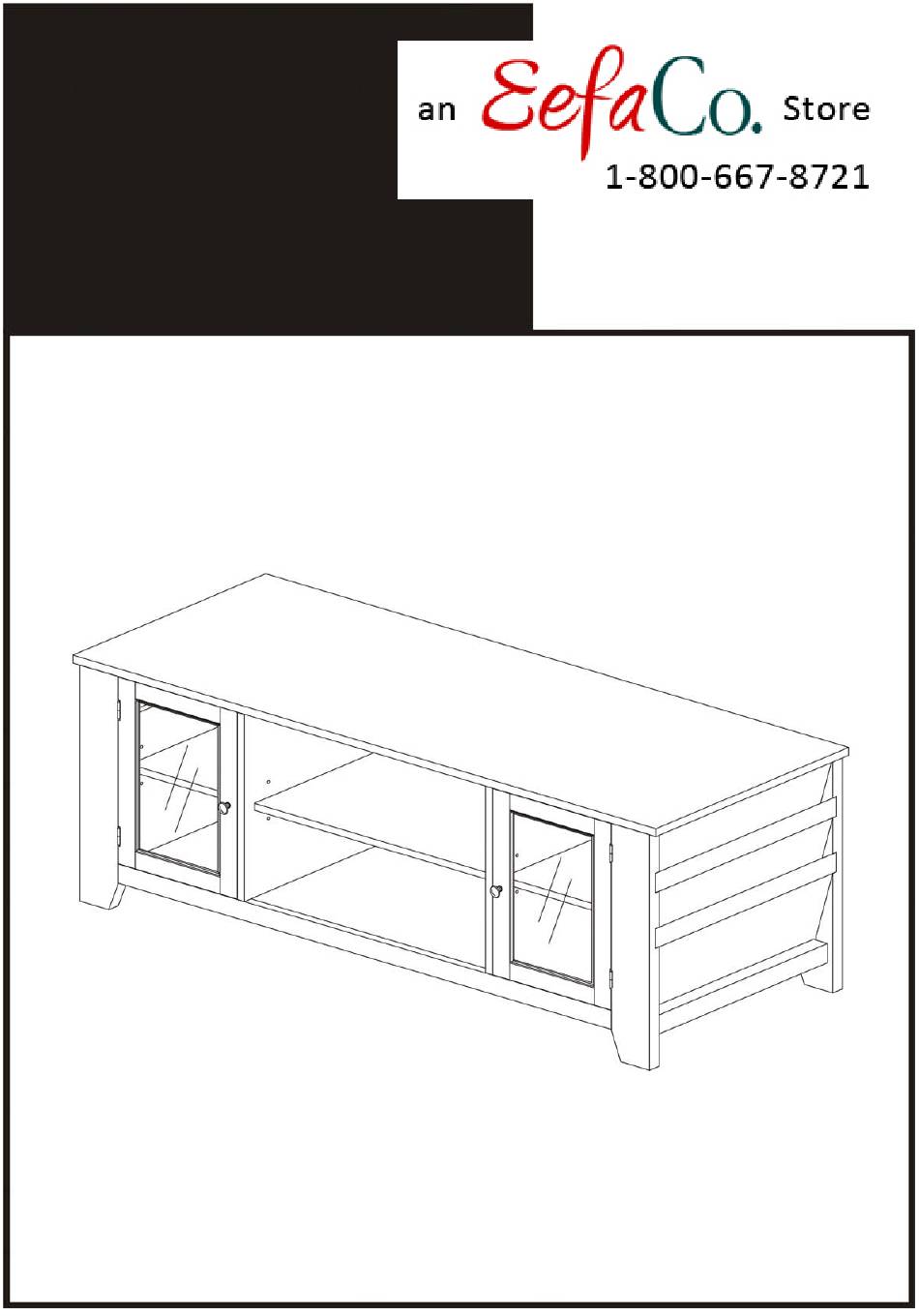

- Page 1 MS986700TX “Carlisle” TV/Media Stand Espresso Finishing Assembly Instructions...
- Page 2 “Carlisle” TV/Media Stand Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Hardware shown actual size. Using hardware that is too long will cause damage. Before beginning assembly, separate each type of hardware.
- Page 3 “Carlisle” TV/Media Stand Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Hardware shown actual size. Using hardware that is too long will cause damage. Before beginning assembly, separate each type of hardware.
- Page 4 “Carlisle” TV/Media Stand Assembly Instructions Assembly Instructions: Wood may scratch easily. Be careful when assembling. Do not scratch. Step 1. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated on the front page. Step 2.
- Page 5 “Carlisle” TV/Media Stand Assembly Instructions Step 1. Attach the Left Door(G) to the Left Side Panel(B) and Right Door(H) to the Right Side Panel(C). Figure 3 Step 1. Put the Top Panel (I) on the soft working surface. Step 2. Attach the Magnet(3) to the Top Panel(I) with Screw For Magnet(4), then fasten them.
- Page 6 “Carlisle” TV/Media Stand Assembly Instructions Step 1. Attach the Back Panel(J) as pictured with Screw For Back(7), then fasten them. Quantity of 16 3.5mm x 12 mm Screw For Back Figure 6 Step 1. Attach Handle(8) to Doors(G,H) with Bolt For Handle(9). Step 2.
- Page 7 MS986700TX Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Missing or damaged hardware and/or parts will be replaced free of charge. We do not sell parts. Southern Enterprises Inc.
- Page 8 CAUTION The top shelf of this cabinet is intended for plasma/LCD televisions having a maximum screen size of 46” and weight of 175 lb. The top shelf is NOT INTENDED for tube televisions. Each center shelf should not be loaded more than 20 lb. Each side shelf should not be loaded more than 15 lb.
