Homestead
Computer Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

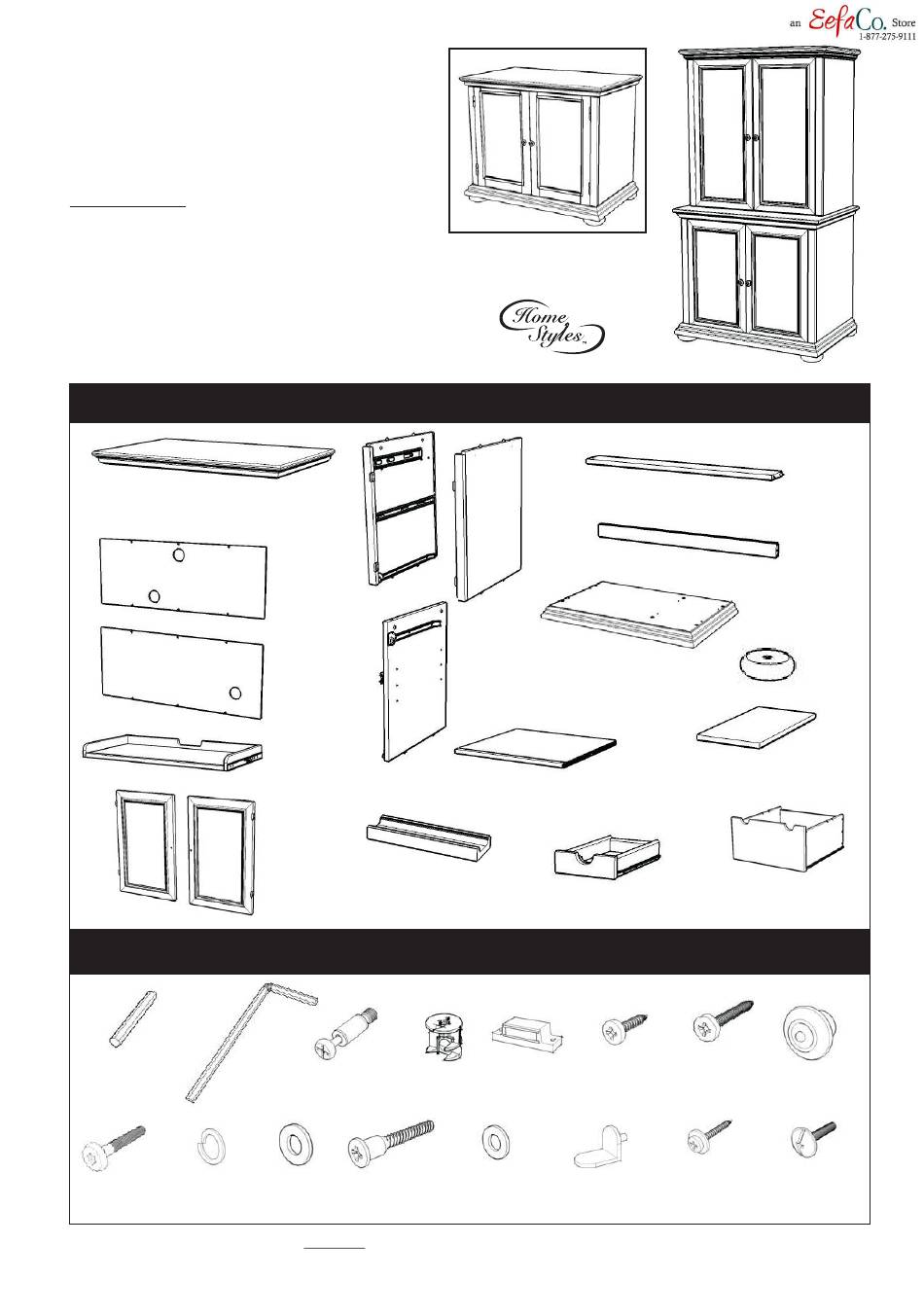

Part List
A.
Top
1 pc.
N.
Door
1 pc.
Hardware List
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
Head Cap Bolt
Spring Washer
4 pcs. (+1 extra)
4 pcs. (+1 extra )
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 pc.
F.
Back Panel
1 pc.
G.
Back Panel
1 pc.
K.
Keyboard Tray
1 pc.
(Knock-Down
Construction, please refer
to page No. 6/8 of these
instructions for steps to
assemble keyboard tray)
O.
P.
Door
Pencil Tray
1 pc.
1 pc.
Cam Lock Screw
Cam Lock
12 pcs.(+1 extra)
12 pcs.(+1 extra)
Wood Screw
Flat Washer
for Base
4 pcs. (+1 extra )
6 pcs.(+1 extra)
Base Unit
C.
Side Panel
1 pc.
H.
I.
Middle Panel
Base
1 pc.
1 pc.
L.
Printer Tray
1 pc.
Q.
Drawer
1 pc.
(Knock-Down Construction, please refer to
the page No. 7/8 and 8/8 of these instructions for steps to assemble drawers)
Wood Screw
Magnet
for Magnet and
2 pcs.
Key board tray
14 pcs.(+1 extra)
Flat Washer
for Wood Screw
Adjustable Pin
6 pcs. (+1 extra )
4 pcs.(+1 extra)
D.
Stretcher
2 pcs.
E.
Stretcher
1 pc.
J.
Leg
4 pcs.
M.
Shelf
1 pc.
R.
Drawer
1 pc.
Wood Screw (long)
Pull Handle
for Drawer Side Part
2 pcs.
24 pcs. (+1 extra)
Wood Screw
for Back Panel and
Drawer Base Part
Machine Screw
20 pcs.(+1 extra)
2 pcs.(+1 extra)
Advertisement
Table of Contents
Related Manuals for EefaCo.Store Homestead 88 5527 19
Summary of Contents for EefaCo.Store Homestead 88 5527 19
- Page 1 88 5527 19 Homestead Computer Cabinet IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches Base Unit or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
- Page 2 Assembly Instructions 2/8 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. Wood Screw Magnet STEP 1...
- Page 3 Assembly Instructions 3/8 Figure 1 STEP 2 Cam Lock Attach Stretchers (D) and (E) onto Side Panel (B) Cam Lock Screw with Cam Locks (see Figure 1). STEP 3 Slide Back Panel (F) and (G) into the unit. Attach Side Panel (C) to the unit with Cam Locks.
- Page 4 Assembly Instructions 4/8 Cam Lock Flat Washer for Wood Screw Wood Screw Flat Washer Spring Washer Head Cap Bolt STEP 4 Attach Middle Panel (H) to the unit with Cam Locks. Attach Base (I) to the unit with Wood Screws and Flat Washers. Attach Legs (J) into the pre-drilled holes of Base (I) by using the Head Cap Bolts, Spring Washers and Flat Washers.
- Page 5 Assembly Instructions 5/8 Adjustable Pin Cam Lock Figure 2 Figure 3 Figure 4 STEP 5 Place Top (A) onto the unit, using Cam Locks. Slide Keyboard Tray (K), Printer Tray (L), Drawer (P) and (Q) into position. Insert Adjustable Pins into side panel and middle panel at the desired level (See figure 2), then place Shelf (M) into position.
- Page 6 Assembly Instructions 6/8 Keyboard Tray (K) STEP 1 Attack K3 to K4, using a Phillips screw driver long wood screws (4X) STEP 2 Attack K1 and K2 to the unit, using a Phillips screw driver short wood screws (10X). Part List Side Part Side Part Back Part...
- Page 7 Assembly Instructions 7/8 Drawer (Q) STEP 1 Attach Q1 to Q3 and Q4, using Phillips screw driver Figure 1 long wood screws (4X) tighten halfway. Attach Q2 to Q3 and Q4 using long wood screws (4X) MAKE SURE ROLLER tighten halfway. (see Figure 1) IS ON THE BACK STEP 2 Slide Q5 into the grooves in Q3 and Q4.
- Page 8 Assembly Instructions 8/8 Drawer (R) STEP 1 Attach R1 to R3 and R4, using Phillips screw driver long wood screws (6X) tighten halfway. Figure 1 Attach R2 to R3 and R4 using long wood screws (6X) MAKE SURE ROLLER tighten halfway. (see Figure 1) IS ON THE BACK STEP 2 Slide R5 into the grooves in R3...
