88 5050 61

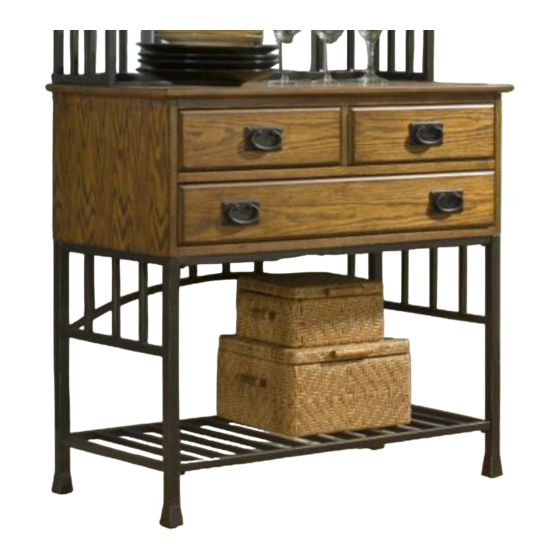

Oak Hill Buffet
Important NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Cabinet
1 pc.
D.
Side Frame
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
B.
Front Stretcher
1 pc.
E.
Side Frame
1 pc.
Head Cap Bolt
8 pcs. (+1 extra)
F.
Shelf
1 pc.
Spring Washer
8 pcs. (+1 extra )
Flat Washer
8 pcs. (+1 extra )
C.
Back Stretcher
1 pc.
Wood Screw (long)
3 pcs.(+1 extra)
Wood Screw (short)
3 pcs.(+1 extra)
Advertisement
Table of Contents
Related Manuals for EefaCo.Store 88 5050 61
Summary of Contents for EefaCo.Store 88 5050 61
- Page 1 88 5050 61 Oak Hill Buffet IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this...
- Page 2 Assembly Instructions IMPORTANT You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Attach Front Stretcher (B) and Back Stretcher (C) to Side Frame (D) with Head Cap Bolts, Spring Washers and Flat Washers.
