Kitchen Cart
(Espresso Finish)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

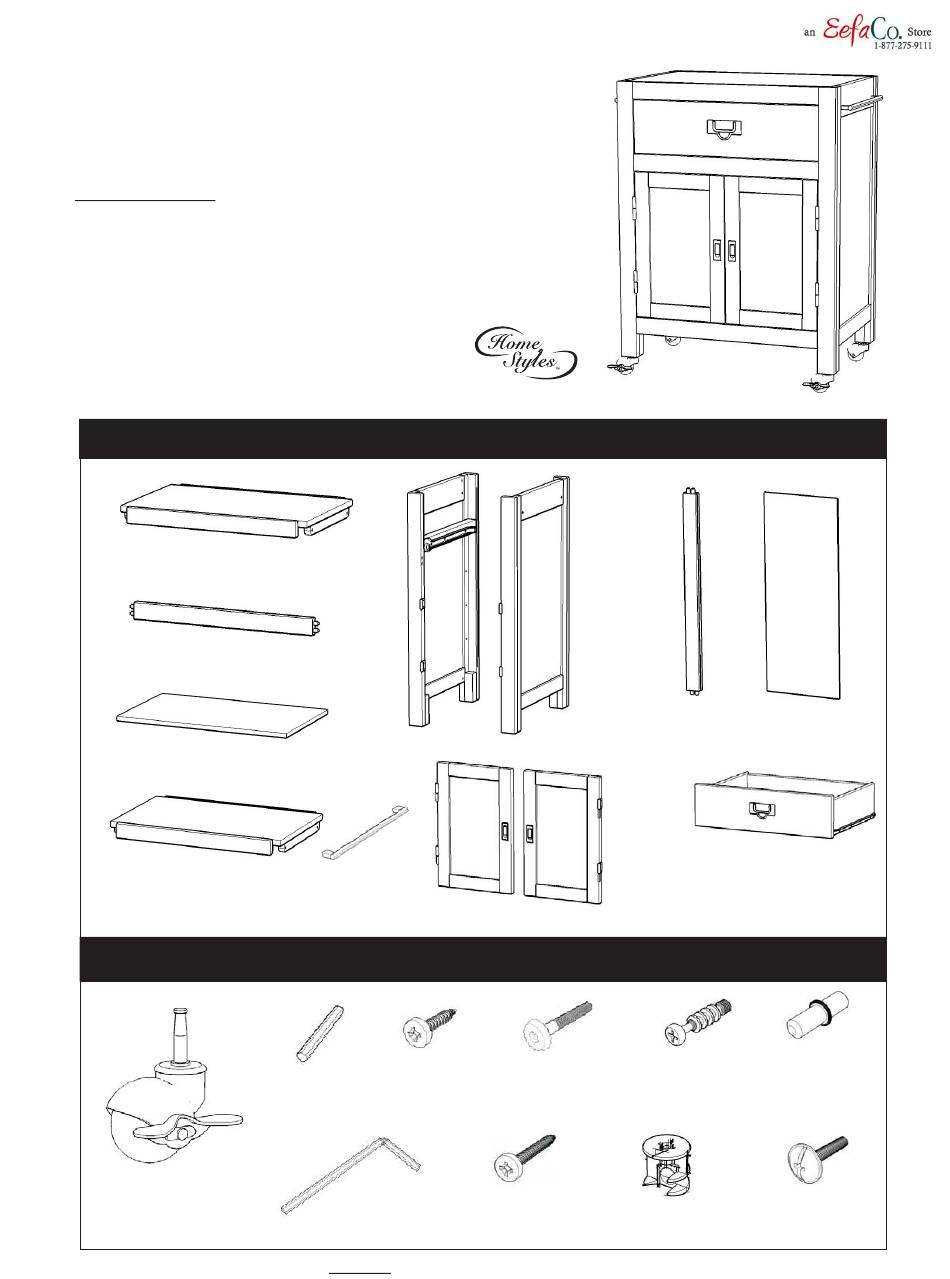

PART LIST (in this carton)
A.
Top
1 pc.
F.
Front Rail
1 pc.
G.
Shelf
1 pc.
H.
Base
1 pc.
HARDWARE LIST
Caster
two lock
two non-lock
4 pcs.
Tools Required For Assembly : Phillips screwdriver
B.
Side Panel
1 pc.
I.
J.
Side Bar
Door
2 pcs.
1 pc.
Small
Wood Screw
6 pcs. (+1 extra)
Hex Wrench
1 pc.
Hex Wrench
1 pc.
Casual Attire For Today's Home
C.
Side Panel
1 pc.
K.
Door
1 pc.
Head Cap Bolt
8 pcs. (+1 extra)
Wood Screw (Long)
8 pcs. (+1 extra)
D.
E.
Back Rail
Back Panel
1 pc.
2 pcs.
L.
Drawer
1 pc.
Drawer require assembly.
(
Please refer to the last page
of these assembly instructions.
Adjustable Pin
Cam Lock Screw
4 pcs. (+1 extra)
2 pcs.(+1 extra)
Cam Lock
Machine Screw
2 pcs.(+1 extra)
4 pcs. (+1 extra)
)
