VTech RM5754HD, RM5754-2HD - 5" Video Monitor Installation Manual

What does HD Video Monitor do?

Congratulations on purchasing your new VTech product. Before using this HD video monitor, please read Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at www.vtechcanada.com.

VTech 5-inch Smart Wi-Fi 1080p Video Monitor allows you to stay close to your baby when you are on the move or away.
This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and audio through the HD camera unit and 5-inch color screen parent unit. It allows you to maintain a constant connection to your baby.

You can also monitor from your smartphone and mobile tablet.
VTech 5-inch Smart Wi-Fi 1080p Video Monitor uses MyVTech Baby 1080p app to let you instantly see and hear what's happening with your baby from anywhere in the world.
The app can be the App Store or the Google Play^TM Store, directly from your smartphone or

What's in the box

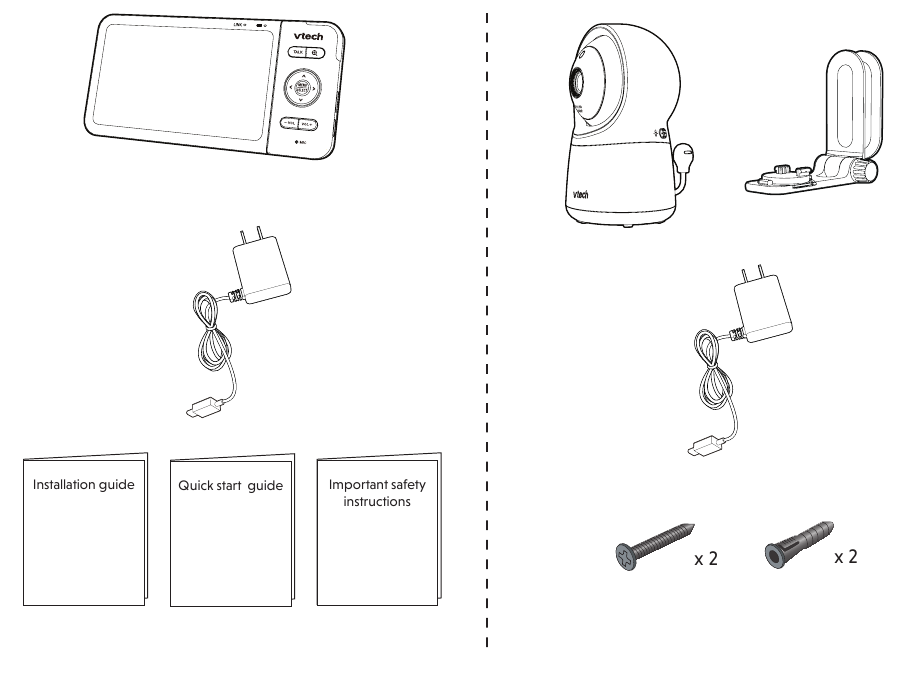

Your HD video monitor package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary.

Requirements

For mobile access:

Camera unit overview

1. Light sensor
2. Camera lens
3. Microphone
4. Infrared LEDs
   • Allow you to see clearly in a dark surrounding.
5. Speaker
6.
   Press to turn the night light on or off.
7. LED indicator
   • Red is steady on when the camera unit is connecting to the parent unit directly in local mode.
   • Green is steady on when the camera unit and parent unit are connecting to your home Wi-Fi network via the Wi-Fi router.
   • Flashes red slowly during video streaming in local mode.
   • Flashes green slowly during video streaming via home Wi-Fi network.
8. ON
   Power on/off switch.
9. PAIR
   Reset the camera unit to factory default.
   1. Press and hold PAIR key until you hear a beep sound.
   2. Release the PAIR key, and then press the PAIR key again five times until you hear another beep sound.
   3. The camera unit will sound another beep when the reset completes. Then, the camera unit will reboot.
10. Temperature sensor
11. Night light
12. Power jack
13. Slots for wall mounting
    Wall mount bracket is included in your package.

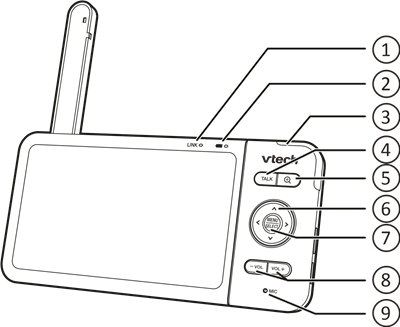

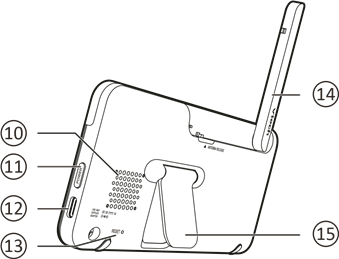

Parent unit overview

1. LINK LED light
   • On when the parent unit is linked to the camera unit.
   • Flashes when the link to the camera unit is lost.
2. LED light
   • On when the parent unit is connected to AC power, and the battery is charging.
   • Off when the parent unit is disconnected from AC power, or when the parent unit is connected to AC power and the battery is fully-charged.
   • Flashes when the parent unit battery is low and needs charging.
3. 3- level sound indicator light
   • Green on when low sound level is detected by the camera unit.
   • Green and amber on when moderate sound level is detected by the camera unit.
   • Green, amber and red on when high sound level is detected by the camera unit.
4. TALK
   • Press and holdto talk to the camera unit.
   • While in a submenu, press to exit.
5.
   Press to zoom in/out.
6. Arrow keys


• Press to navigate leftward, upward, rightward or downward, within the main menu and submenus.
• While viewing image from the camera unit, press to pan the camera unit leftward, upward, rightward or downward.
• While viewing zoomed image, press to move the zoomed image leftward, upward, rightward or downward.

7. MENU/SELECT
   • Press to enter the main menu.
   • While in a menu, press to choose an item, or save a setting.
8. - VOL/ VOL +
   • Increase or decrease parent unit's volume.
9. Microphone

10. Speaker
11. POWER key
12. Power jack
13. RESET
    • Force reboot the parent unit.
14. Antenna
15. Stand

How the system works

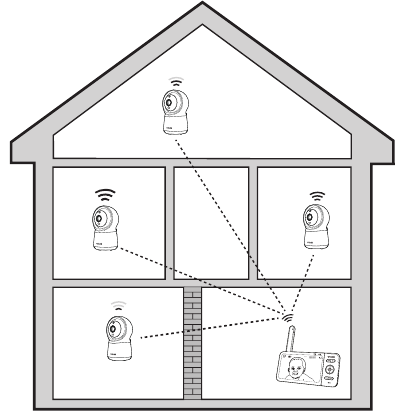

Local mode

The Parent unit and the camera unit of your video monitor connect to each others in Local mode by default, which allows you to stream live video right out of the box. Local mode connection lets you stream live video from parent unit only.

TIP: You may experience reduced signal strength if your parent unit and camera unit are far apart, or there are obstructing factors, such as internal walls, between them. Move the parent unit closer to the camera unit to improve the signal strength. You can also set up Remote mode to connect via your home Wi-Fi network to improve the connection between your parent unit and camera unit.

Remote mode

You can continue using your video monitor with Local mode connection, or you can set up your monitor in Remote mode connection.

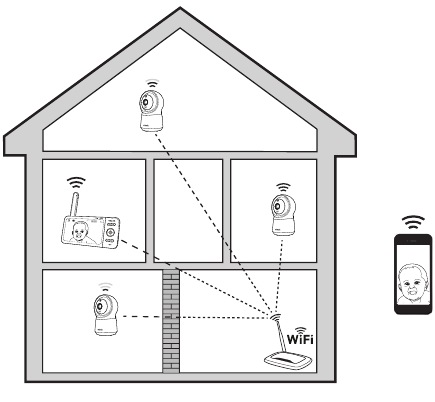

Remote mode uses your home Wi-Fi network to connect your video monitor. It supports streaming live video through parent unit and smartphone app.
We recommend that you set up your monitor in Remote mode to enjoy streaming live video via your parent unit with better connection.
If you want to stream live video remotely with your mobile device, download and install the MyVTech Baby 1080p mobile app. With the mobile app, your Wi-Fi router (not included) provides Internet connectivity to your HD video monitor system. It serves as a communicating channel between your camera unit and mobile device, allowing you to monitor and/or control your camera unit wherever you are. For detail, see Mobile access section in the quick start guide.


NOTE: Your parent unit detects the connection signal strength. If you have connected your video monitor with your home Wi-Fi network, your parent unit automatically switches to local or remote mode - the one that has stronger signal strength.

Protect your privacy and online security

VTech cares about your privacy and peace of mind. That's why we've put together a list of industry-recommended best practices to help keep your wireless connection private and your devices protected when online. We recommend you carefully review and consider complying with the following tips.

Ensure your wireless connection is secure.

• Before installing a device, ensure your router's wireless signal is encrypted by selecting the "WPA2-PSK with AES" setting in your router's wireless security menu.

Change default settings.

• Change your wireless router's default wireless network name (SSID) to something unique.
• Change default passwords to unique, strong passwords. A strong password:
  • Is at least 10 characters long.
  • Is complex.
  • Does not contain dictionary words or personal information.
  • Contains a mix of uppercase letters, lowercase letters, special characters and numbers.

Keep your devices up to date.

• Download security patches from manufacturers as soon as they become available. This will ensure you always have the latest security updates.
• If the feature is available, enable automatic updates for future releases. Disable Universal Plug and Play (UPnP) on your router.
• UPnP enabled on a router can limit the effectiveness of your firewall by allowing other network devices to open inbound ports without any intervention or approval from you. A virus or other malware program could use this function to compromise security for the entire network.

For more information on wireless connections and protecting your data, please review the following resources from industry experts:

1. Federal Communications Commission: Wireless Connections and Bluetooth Security Tips – www.fcc.gov/consumers/guides/how-protect-yourself-online.
2. U.S. Department of Homeland Security: Before You Connect a New Computer to the Internet – www.us-cert.gov/ncas/tips/ST15-003.
3. Federal Trade Commission: Using IP Cameras Safely – https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-safely.
4. Wi-Fi Alliance: Discover Wi-Fi Security – http://www.wi-fi.org/discover-wi-fi/security.

Connect, charge and power on the baby monitor

Connect the baby monitor

NOTES:

• The rechargeable battery in the parent unit is built-in.
• Use only the power adapters supplied with this product.
• Make sure the parent unit and the camera unit are not connected to the switch controlled electric outlets.
• Connect the power adapters in a vertical or floor mount position only. The adapters' prongs are not designed to hold the weight of the parent unit and the camera unit, so do not connect them to any ceiling, under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
• Make sure the parent unit, the camera unit and the power adapter cords are out of reach of children.
• To maintain compliance with the FCC's RF exposure guidelines, place the camera unit at least 20cm from nearby persons.

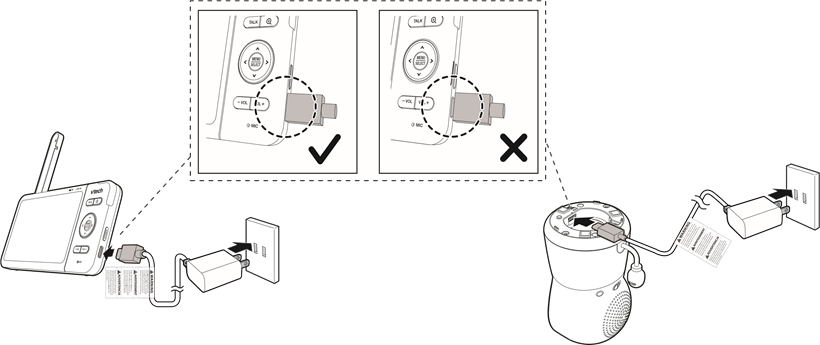

Charge the parent unit battery

The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. With the battery alone, the parent unit can cordlessly run for a short time only.

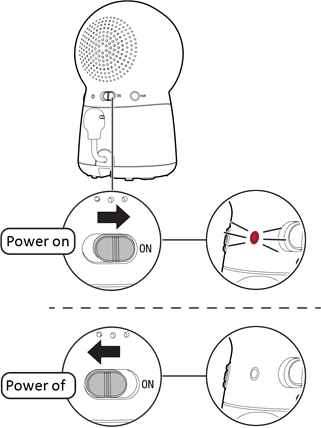

Slide the switch to ON to power on your camera unit.

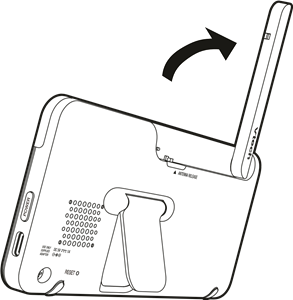

Raise the parent unit antenna for better reception

Charge the battery before use

NOTES:

• The parent unit is fully charged after 8 hours of continuous charging.
• The standby time varies depending on your actual use.

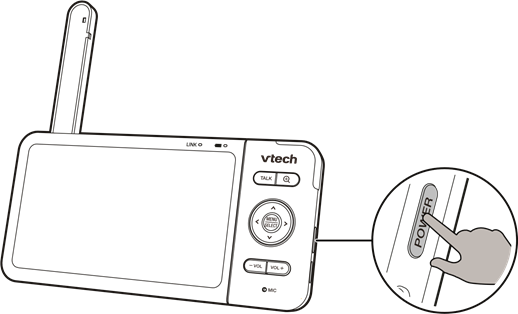

After the parent unit is fully charged, press POWER until the welcoming screen appears.

The battery icon indicates the battery status (see the following table).

Battery indicators	Battery status	Action
The screen displays and . The light flashes.	The battery has very little charge and may be used for only a short time.	Charge without interruption (about 30 minutes).
The battery icon becomes solid .	The battery is fully charged.	To keep the battery charged, connect it to AC power when not in use.

Set up the hd video monitor for mobile access (optional)

After you have connected the parent unit and the camera unit, you can stream live video in local mode right away. You can also set up connection between your HD video monitor system and your home Wi-Fi network for better connection between the parent unit and camera unit. You can also download and install the MyVTech Baby 1080p mobile app to stream video remotely.
For detail, refer to the quick start guide included in your package.

HD video monitor setup for mobile access:

• Set up Wi-Fi connection
• Pair camera to mobile device

To install MyVTech Baby 1080p mobile app:
Browse the App Store or the Google Play store , and search for the mobile app with the keyword "myvtech baby 1080p".
OR
Scan the QR code to get the app.

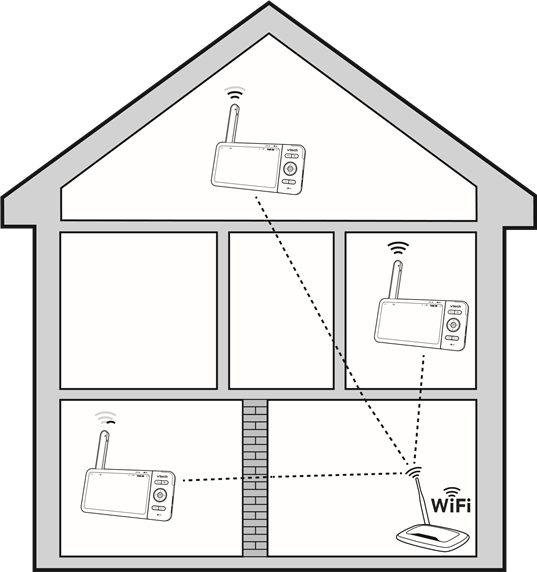

Test the location for the camera unit

If you plan to install your camera unit in a designated location, and use your home Wi-Fi network to connect your video monitor, you need to test which of your selected monitoring areas within the house have good Wi-Fi signal strength. After you have powered on your parent unit, you can use your parent unit's Wi-Fi signal strength indicator to assist in checking. Once you have identified the suitable location, you can install your camera unit. Adjust the distance between your camera unit and the Wi-Fi router if needed.

TIP: Depending on surroundings and obstructing factors, such as the effect distance and internal walls have on signal strength, you may experience reduced Wi-Fi signal. To improve the Wi-Fi signal strength, adjust the distance or direction of your parent unit. Check with your parent unit again.

Test the sound l evel and position the HD video monitor

NOTE:

• This HD video monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such.

Testing the sound level of the HD video monitor

For hearing protection, make sure the parent unit is more than 10 feet (3 meters) away from the camera unit. If you hear any high-pitched noise from the parent unit, move the parent unit further until the noise stops. You can also press - VOL on the parent unit to lower or mute the noise.

TIP:

• Increase the parent unit speaker volume if you cannot hear the sounds transmitted from the camera unit.

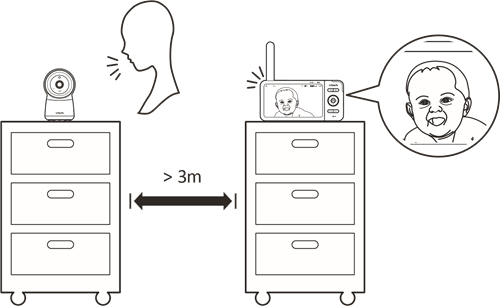

Positioning the HD video monitor

• Keep the camera unit out of the reach of your baby. Never place or mount the camera unit inside the baby's crib or playpen.

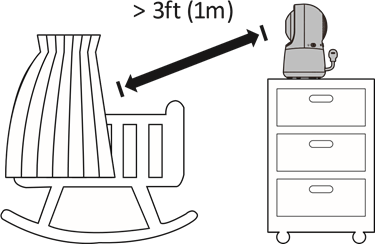

1. Place the camera unit more than 3 feet (1 meter) away from your baby.

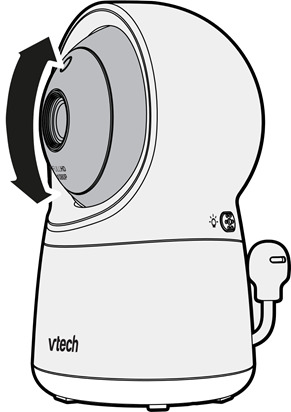

2. Adjust the angle of the camera to aim at your baby.

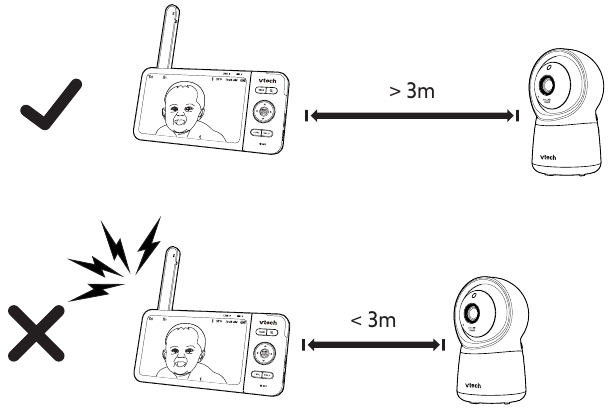

3. To avoid causing high-pitched screeching noise from your HD video monitor:

• Make sure your camera unit and parent unit are more than 10 feet (3 meters) apart;
  OR
• Turn down the volume of your parent unit.

Mount the camera unit (optional)

NOTES:

• Check for reception strength and camera angle before drilling the holes.
• The types of screws and anchors you need depend on the composition of the wall. You may need to purchase the screws and anchors separately to mount your camera units.

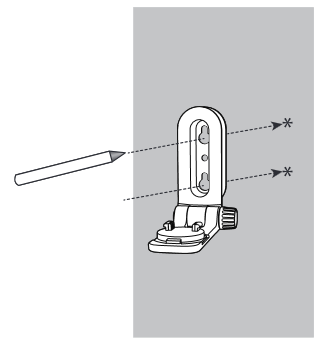

1. Place the wall mount bracket on a wall and then use a pencil to mark two holes in parallel. Remove the wall mount bracket and drill two holes in the wall (7/32 inch drill bit).


2. If you drill the holes into a stud, go to step 3.

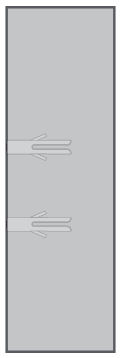

• If you drill the holes into an object other than a stud, insert the wall anchors into the holes. Tap gently on the ends with a hammer until the wall anchors are flush with the wall.

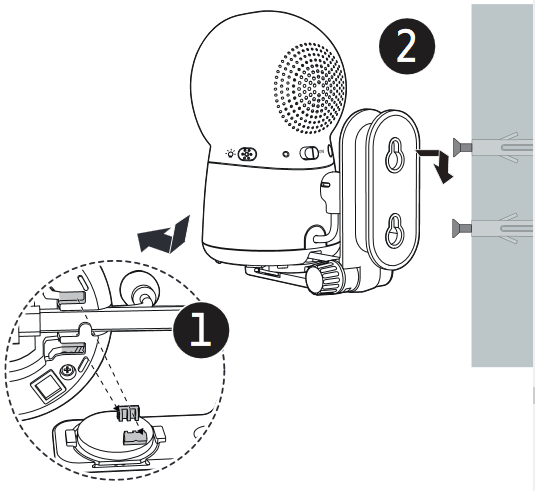

3. Align the wall mount bracket and screws with the holes in the wall as shown. Tighten the screw in the middle hole first, so that the wall mount bracket position is fixed. You can tighten the other screw in the top hole.


4. Place the camera unit on the wall mount bracket, and then slide it forward until it locks into place. Connect the power adapter to the camera unit and a power supply not controlled by a wall switch.

   OR

3. Insert the screws into the holes and tighten the screws until only 1/4 inch of the screws are exposed.


4. Place the camera unit on the wall mount bracket, and then slide it forward until it locks into place. Align the holes on the wall mount bracket with the screws on the wall, and slide the wall mount bracket down until it locks into place.

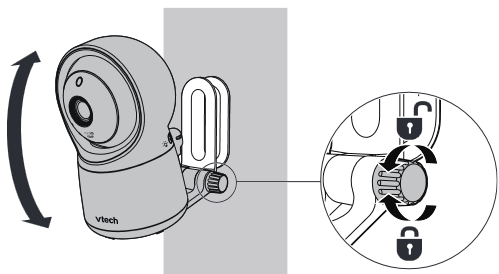

5. You can maximize your camera unit's viewing angles by tilting the wall mount bracket. Hold the camera unit, and then rotate the knob in anticlockwise direction. This will loosen the joint of the wall mount bracket. Tilt your camera unit up or down to adjust to your preferred angle.


General product care

To keep this product working well and looking good, follow these guidelines:

• Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps).
• DO NOT expose it to direct sunlight or moisture.
• Avoid dropping the product or treating it roughly.
• Clean with a soft cloth.
• DO NOT immerse the parent unit and the camera unit in water and do not clean them under the tap.
• DO NOT use cleaning spray or liquid cleaners.
• Make sure the parent unit and the camera unit are dry before you connect them to the mains again.

Storage

When you are not going to use the HD video monitor for some time, store the parent unit, the camera unit and the adapters in a cool and dry place.

Frequently asked questions

Below are the questions most frequently asked about the HD video monitor. If you cannot find the answer to your question in the below table, visit our website at www.vtechcanada.com or call 1-888-211-2005.

Limited warranty

How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to the repaired or replacement Product for a period of either

1. 90 days from the date the repaired or replacement Product is shipped to you or
2. the time remaining on the original one-year warranty; whichever is longer.

How do you get warranty service?
To obtain warranty service in Canada, please visit our website at www.vtechcanada.com or call 1-888-211-2005.

Please retain your original sales receipt as proof of purchase.

Technical specifications

Google Play and the Google Play logo are trademarks of Google LLC.
App Store is a trademark of Apple Inc., registered in the U.S. and other countries.

Specifications are subject to change without notice.
© 2019 VTech Technologies Canada Ltd.
All rights reserved. 12/19. RM5754-XHD_CA_IG_V2
Document order number: 91-011934-020-100
