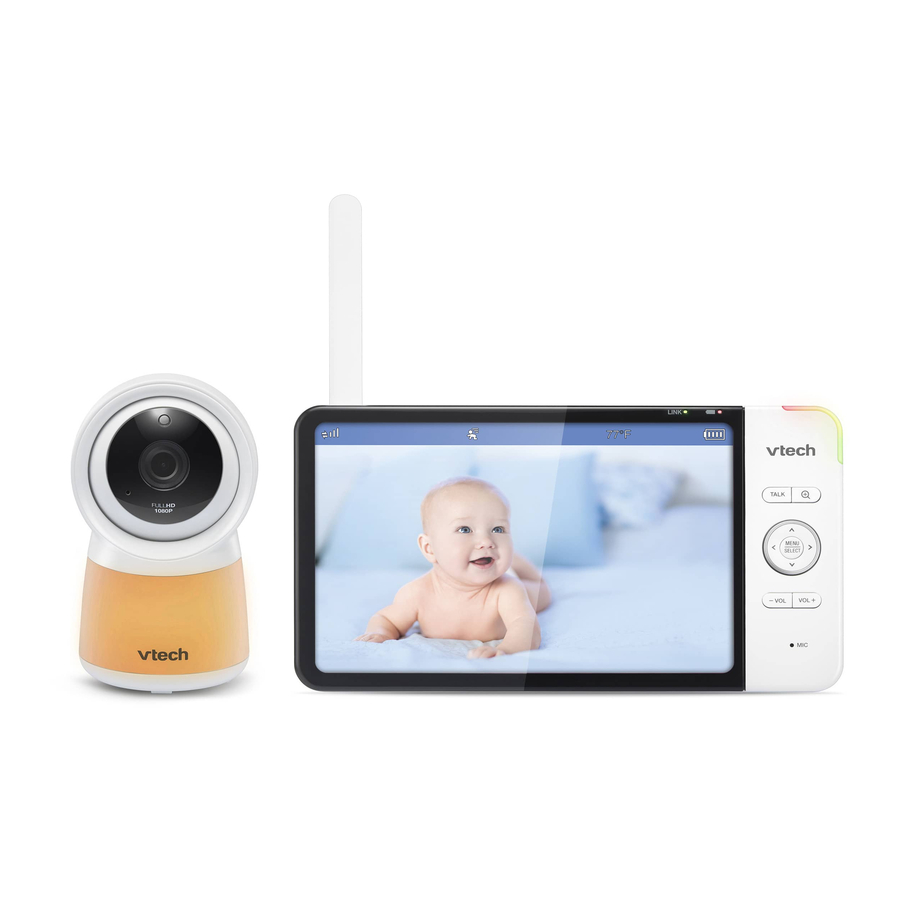

Vtech RM7754HD, RM7754-2HD - 7" Smart Wi-Fi 1080p Video Monitor Manual
Introduction
Go to www.vtechphones.com to register your product for enhanced warranty support and latest VTech product news.
Before using this HD video monitor, please read Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com.
In Canada, visit www.vtechcanada.com.
What does HD Video Monitor do?
VTech 7-inch Smart Wi-Fi 1080p Video Monitor allows you to stay close to your baby when you are on the move or away.
This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and audio through the HD camera unit and 7-inch color screen parent unit. It allows you to maintain a constant connection to your baby.
You can also monitor from your smartphone and mobile tablet.
VTech 7-inch Smart Wi-Fi 1080p Video Monitor uses MyVTech Baby 1080p app to let you instantly see and hear what's happening with your baby from anywhere in the world.
The app can be the App Store or the Google PlayTM Store, directly from your smartphone.
![www.apple.com]()
![play.google.com]()
What's in the box
Your HD video monitor package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary.
![]()
Requirements
For mobile access:
Network | Wi-Fi |
Wi-Fi router | 2.4GHz 802.11 b/g/n |
Internet connection | 1.5 Mbps @ 720p or 2.5 Mbps @1080p upload bandwidth per camera |
MyVTech Baby 1080p mobile app | Connect up to 10 camera units |
Overview
Camera unit overview
![vtech - RM7754HD - Camera unit overview - Part 1 Camera unit overview - Part 1]()
- Light sensor
- Camera lens
- Microphone
- Infrared LEDs
- Allow you to see clearly in a dark surrounding.
![vtech - RM7754HD - Camera unit overview - Part 2 Camera unit overview - Part 2]()
- Speaker
![]()
Press to turn the night light on or off. - LED indicator
- Red is steady on when the camera unit is connecting to the parent unit directly in local mode.
- Green is steady on when the camera unit and parent unit are connecting to your home Wi-Fi network via the Wi-Fi router.
- Flashes red slowly during video streaming in local mode.
- Flashes green slowly during video streaming via home Wi-Fi network.
- ON
- PAIR
- Reset the camera unit to factory default.
- Press and hold PAIR key until you hear a beep sound.
- Release the PAIR key, and then press the PAIR key again five times until you hear another beep sound.
- The camera unit will sound another beep when the reset completes. Then, the camera unit will reboot.
- Temperature sensor
- Night light
![vtech - RM7754HD - Camera unit overview - Part 3 Camera unit overview - Part 3]()
- Power jack
- Slots for wall mounting
- Wall mount bracket is included in your package.
Parent unit overview
![vtech - RM7754HD - Parent unit overview - Part 1 Parent unit overview - Part 1]()
- LINK LED light
- On when the parent unit is linked to the camera unit.
- Flashes when the link to the camera unit is lost.
LED light
- On when the parent unit is connected to AC power, or the battery is charging.
- Off when the parent unit is disconnected from AC power, or when the parent unit is connected to AC power and the battery is fully-charged.
- Flashes when the parent unit battery is low and needs charging.
- 3- level sound indicator light
- Green on when low sound level is detected by the camera unit.
- Green and amber on when moderate sound level is detected by the camera unit.
- Green, amber and red on when high sound level is detected by the camera unit.
- TALK
- Press and hold to talk to the camera unit.
- While in a submenu, press to exit.
![]()
![vtech - RM7754HD - Parent unit overview - Part 2 Parent unit overview - Part 2]()
- Arrow keys
or ![]()
- Press to navigate leftward, upward, rightward or downward, within the main menu and submenus.
- While viewing image from the camera unit, press to pan the camera unit leftward, upward, rightward or downward.
- While viewing zoomed image, press to move the zoomed image leftward, upward, rightward or downward.
- MENU/SELECT
- Press to enter the main menu.
- While in a menu, press to choose an item, or save a setting.
- VOL/ VOL +
- Increase or decrease parent unit's volume.
- Microphone
- POWER key
- Power jack
- RESET
- Force reboot the parent unit.
- Antenna
- Speaker
- Stand
How the system works
Local mode
The Parent unit and the camera unit of your video monitor connect to each others in Local mode by default, which allows you to stream live video right out of the box. Local mode connection lets you stream live video from parent unit only.
![vtech - RM7754HD - Local mode Local mode]()
TIP
- You may experience reduced signal strength if your parent unit and camera unit are far apart, or there are obstructing factors, such as internal walls, between them. Move the parent unit closer to the camera unit to improve the signal strength. You can also set up Remote mode to connect via your home Wi-Fi network to improve the connection between your parent unit and camera unit.
Remote mode
You can continue using your video monitor with Local mode connection, or you can set up your monitor in Remote mode connection.
Remote mode uses your home Wi-Fi network to connect your video monitor. It supports streaming live video through parent unit and smartphone app.
We recommend that you set up your monitor in Remote mode to enjoy streaming live video via your parent unit with better connection.
If you want to stream live video remotely with your mobile device, download and install the MyVTech Baby 1080p mobile app. With the mobile app, your Wi-Fi router (not included) provides Internet connectivity to your HD video monitor system. It serves as a communicating channel between your camera unit and mobile device, allowing you to monitor and/or control your camera unit wherever you are. For detail, see Mobile access section in the quick start guide.
![vtech - RM7754HD - Remote mode Remote mode]()
NOTE
- Your parent unit detects the connection signal strength. If you have connected your video monitor with your home Wi-Fi network, your parent unit automatically switches to local or remote mode - the one that has stronger signal strength.
Protect your privacy and online security
VTech cares about your privacy and peace of mind. That's why we've put together a list of industry-recommended best practices to help keep your wireless connection private and your devices protected when online. We recommend you carefully review and consider complying with the following tips.
Ensure your wireless connection is secure.
- Before installing a device, ensure your router's wireless signal is encrypted by selecting the "WPA2-PSK with AES" setting in your router's wireless security menu.
Change default settings.
- Change your wireless router's default wireless network name (SSID) to something unique.
- Change default passwords to unique, strong passwords. A strong password:
- Is at least 10 characters long.
- Is complex.
- Does not contain dictionary words or personal information.
- Contains a mix of uppercase letters, lowercase letters, special characters and numbers.
Keep your devices up to date.
- Download security patches from manufacturers as soon as they become available. This will ensure you always have the latest security updates.
- If the feature is available, enable automatic updates for future releases.
Disable Universal Plug and Play (UPnP) on your router.
- UPnP enabled on a router can limit the effectiveness of your firewall by allowing other network devices to open inbound ports without any intervention or approval from you. A virus or other malware program could use this function to compromise security for the entire network.
For more information on wireless connections and protecting your data, please review the following resources from industry experts:
- Federal Communications Commission: Wireless Connections and Bluetooth Security Tips – www.fcc.gov/consumers/guides/how-protect-yourself-online.
- U.S. Department of Homeland Security: Before You Connect a New Computer to the Internet – www.us-cert.gov/ncas/tips/ST15-003.
- Federal Trade Commission: Using IP Cameras Safely – https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-safely.
- Wi-Fi Alliance: Discover Wi-Fi Security – http://www.wi-fi.org/discover-wi-fi/security.
Connect, charge and power on the baby monitor
Connect the baby monitor
NOTES
- The rechargeable battery in the parent unit is built-in.
- Use only the power adapters supplied with this product.
- Make sure the parent unit and the camera unit are not connected to the switch controlled electric outlets.
- Connect the power adapters in a vertical or floor mount position only. The adapters' prongs are not designed to hold the weight of the parent unit and the camera unit, so do not connect them to any ceiling, under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
- Make sure the parent unit, the camera unit and the power adapter cords are out of reach of children.
- To maintain compliance with the FCC's RF exposure guidelines, place the camera unit at least 20cm from nearby persons.
Charge the parent unit battery
The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. With the battery alone, the parent unit can cordlessly run for a short time only.
![vtech - RM7754HD - Charge the parent unit battery - Step 1 Charge the parent unit battery - Step 1]()
Slide the ON switch to power on or off your camera unit.
![vtech - RM7754HD - Charge the parent unit battery - Step 2 Charge the parent unit battery - Step 2]()
Raise the parent unit antenna for better reception
![vtech - RM7754HD - Charge the parent unit battery - Step 3 Charge the parent unit battery - Step 3]()
Charge the battery before use
NOTES
- The parent unit is fully charged after 8 hours of continuous charging.
- The standby time varies depending on your actual use.
After the parent unit is fully charged, press POWER until the welcoming screen appears.
![vtech - RM7754HD - Charge the battery before use Charge the battery before use]()
The battery icon indicates the battery status (see the following table).
Battery indicators | Battery status | Action |
The screen displays and . The light flashes. | The battery has very little charge and may be used for only a short time. | Charge without interruption (about 30 minutes). |
The battery icon becomes solid . | The battery is fully charged. | To keep the battery charged, connect it to AC power when not in use. |
Set up the HD video monitor for mobile access (optional)
After you have connected the parent unit and the camera unit, you can stream live video in local mode right away. You can also set up connection between your HD video monitor system and your home Wi-Fi network for better connection between the parent unit and camera unit. You can also download and install the MyVTech Baby 1080p mobile app to stream video remotely.
For detail, refer to the quick start guide included in your package.
HD video monitor setup for mobile access:
- Set up Wi-Fi connection
- Pair camera to mobile device
To install MyVTech Baby 1080p mobile app:
Browse the App Store
or the Google Play store
, and search for the mobile app with the keyword "myvtech baby 1080p".
OR
Scan the QR code to get the app.
![www.apple.com]()
![]()
![play.google.com]()
![]()
Test the location for the camera unit
If you plan to install your camera unit in a designated location, and use your home Wi-Fi network to connect your video monitor, you need to test which of your selected monitoring areas within the house have good Wi-Fi signal strength. After you have powered on your parent unit, you can use your parent unit's Wi-Fi signal strength indicator to assist in checking. Once you have identified the suitable location, you can install your camera unit. Adjust the distance between your camera unit and the Wi-Fi router if needed.
![vtech - RM7754HD - Test the location for the camera unit Test the location for the camera unit]()
TIP
- Depending on surroundings and obstructing factors, such as the effect distance and internal walls have on signal strength, you may experience reduced Wi-Fi signal. To improve the Wi-Fi signal strength, adjust the distance or direction of your parent unit. Check with your parent unit again.
Test the sound level and position the HD video monitor
NOTE
- This HD video monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such.
Testing the sound level of the HD video monitor
![]()
- For hearing protection, make sure the parent unit is more than 10 feet (3 meters) away from the camera unit. If you hear any high-pitched noise from the parent unit, move the parent unit further until the noise stops. You can also press - VOL on the parent unit to lower or mute the noise.
![]()
TIP
- Increase the parent unit speaker volume if you cannot hear the sounds transmitted from the camera unit.
Positioning the HD video monitor
![]()
![]()
- Keep the camera unit out of the reach of your baby. Never place or mount the camera unit inside the baby's crib or playpen.
- Place the camera unit more than 3 feet (1 meter) away from your baby.
![]()
- Adjust the angle of the camera to aim at your baby.
![]()
- To avoid causing high-pitched screeching noise from your HD video monitor:
- Make sure your camera unit and parent unit are more than 10 feet (3 meters) apart; OR
- Turn down the volume of your parent unit.
![]()
Mount the camera unit (optional)
NOTES
- Check for reception strength and camera angle before drilling the holes.
- The types of screws and anchors you need depend on the composition of the wall. You may need to purchase the screws and anchors separately to mount your camera units.
- Place the wall mount bracket on a wall and then use a pencil to mark two holes in parallel. Remove the wall mount bracket and drill two holes in the wall (7/32 inch drill bit).
![vtech - RM7754HD - Mount the camera unit - Step 1 Mount the camera unit - Step 1]()
- If you drill the holes into a stud, go to step 3.
- If you drill the holes into an object other than a stud, insert the wall anchors into the holes. Tap gently on the ends with a hammer until the wall anchors are flush with the wall.
![]()
- Align the wall mount bracket and screws with the holes in the wall as shown. Tighten the screw in the middle hole first, so that the wall mount bracket position is fixed. You can tighten the other screw in the top hole.
![]()
- Place the camera unit on the wall mount bracket, and then slide it forward until it locks into place. Connect the power adapter to the camera unit and a power supply not controlled by a wall switch.
![vtech - RM7754HD - Mount the camera unit - Step 2 Mount the camera unit - Step 2]()
OR
- Insert the screws into the holes and tighten the screws until only 1/4 inch of the screws are exposed.
![]()
- Place the camera unit on the wall mount bracket, and then slide it forward until it locks into place. Align the holes on the wall mount bracket with the screws on the wall, and slide the wall mount bracket down until it locks into place.
![vtech - RM7754HD - Mount the camera unit - Step 3 Mount the camera unit - Step 3]()
- You can maximize your camera unit's viewing angles by tilting the wall mount bracket. Hold the camera unit, and then rotate the knob in anticlockwise direction. This will loosen the joint of the wall mount bracket. Tilt your camera unit up or down to adjust to your preferred angle. Then, rotate the knob in clockwise direction to tighten the joint and secure the angle.
![vtech - RM7754HD - Mount the camera unit - Step 4 Mount the camera unit - Step 4]()
General product care
To keep this product working well and looking good, follow these guidelines:
- Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps).
- DO NOT expose it to direct sunlight or moisture.
- Avoid dropping the product or treating it roughly.
- Clean with a soft cloth.
- DO NOT immerse the parent unit and the camera unit in water and do not clean them under the tap.
- DO NOT use cleaning spray or liquid cleaners.
- Make sure the parent unit and the camera unit are dry before you connect them to the mains again.
Storage
When you are not going to use the HD video monitor for some time, store the parent unit, the camera unit and the adapters in a cool and dry place.
Frequently asked questions
Below are the questions most frequently asked about the HD video monitor. If you cannot find the answer to your question in the below table, visit our website at www.vtechphones.com, or call 1-844-848-8324 (1-844-84-VTECH) for customer service. In Canada, go to www.vtechcanada.com or call 1-888-211-2005.
Can I turn off the parent unit screen but keep hearing sound from the camera unit? | The parent unit's LCD display will dim automatically after being inactive for some time. Press MENU/SELECT will turn the LCD display back on. |
Why does the camera unit not respond normally? | Try the following (in the order listed) for common cure: - Disconnect the power to the camera unit.
- Wait a few minutes before connecting power back to the camera unit.
- Reboot the parent unit.
|
Why is my screen in black and white? | The camera unit has a light sensor that measures the ambient light. When the ambient light is dim, such as during nighttime or in a dark room, the camera activates its infrared LEDs, and displays the camera view in black and white. |
Why does my camera show offline? Why is the connection lost every now and then? | The camera unit may lose the Internet connection. Check your network and the router setting. |
Other electronic products may cause interference with your camera. Try installing your camera as far away from these electronic devices as possible. |
Why don't I hear a sound/Why can't I hear my baby cry? | The parent unit speaker volume may be too low. Press VOL + to increase the volume. |
You may have set a low sound sensitivity level. Set the sound sensitivity to a higher level. For details, go to www.vtechphones.com for online help topics. |
Limited warranty
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to the repaired or replacement Product for a period of either
- 90 days from the date the repaired or replacement Product is shipped to you or
- the time remaining on the original one-year warranty; whichever is longer.
How do you get warranty service?
To obtain warranty service in the USA, please visit our website at www.vtechphones.com or call 1-844-848-8324 (1-844-84-VTECH). In Canada, go to www.vtechcanada.com or call 1-888-211-2005.
Please retain your original sales receipt as proof of purchase.
Technical specifications
Frequency | Camera unit: 2412 - 2462 MHz |
Channels | 11 |
LCD | 7'' Color LCD |
| (IPS 1200x800 pixels) |
Nominal effective range | Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. |
Power requirement | - Parent unit power adapter: Output: 5V DC 1000mA
- Parent unit: 3.7V Lithium-ion battery
Camera unit power adapter: Output: 5V DC 1000mA |
Google Play and the Google Play logo are trademarks of Google LLC.
App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
![]()
Specifications are subject to change without notice.
© 2019 VTech Communications, Inc.
All rights reserved. 12/19. RM7754-XHD_IG_V1
![]()
Documents / Resources
References
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Vtech RM7754HD, RM7754-2HD - 7" Smart Wi-Fi 1080p Video Monitor Manual
Need help?
Do you have a question about the RM7754HD and is the answer not in the manual?
Questions and answers
