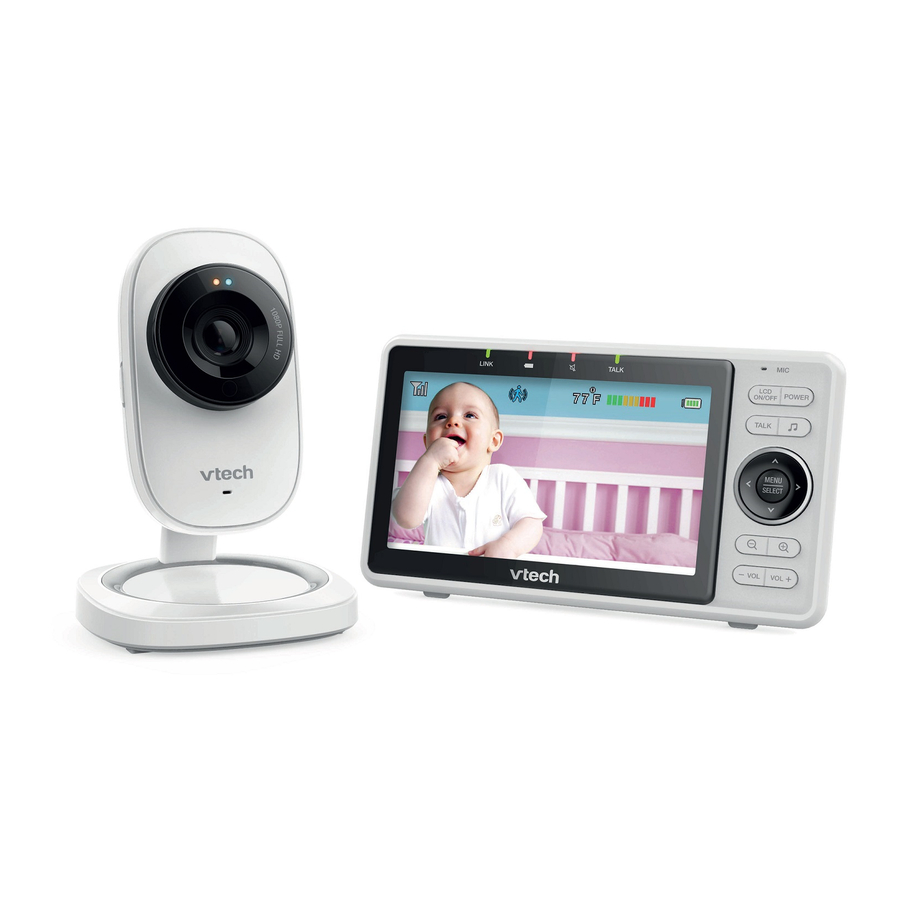

Vtech RM5752 - Wi-Fi 1080p Video Monitor Installation Guide

What's in the box

Your HD video monitor package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary.

Requirements

Make sure your system includes the following components, and they meet the minimum requirement.

Network	Wi-Fi
Wi-Fi router	2.4GHz 802.11 b/g/n
Internet connection	1.5 Mbps @ 720p or 2.5 Mbps @1080p upload bandwidth per camera
MyVTech Baby 1080p mobile app	Connect up to 10 camera units

Overview

Camera unit overview

1. LED indicators

• Flash yellow and blue alternately when the camera unit is in pairing mode.
• Yellow is steady on when the camera unit is connecting to the Internet.
• Yellow and blue are steady on when the camera unit is idle.
• Flash yellow and blue slowly during video streaming.
• Flash yellow and blue quickly and alternately when the camera unit is updating its firmware.

2. Camera lens
3. Infrared LEDs

• Allow you to see clearly in a dark surrounding.

4. Light sensor
5. Microphone
6. PAIR button

• Press and hold for 3 seconds to enter pairing mode.
• Press and hold for 20 seconds to reset the camera settings to factory default.

7. Speaker


• For hearing protection, do not stand close to the HD camera when the camera's alarm goes off. The loud alarm may damage your hearing.

8. Power jack
9. Temperature sensor
10. Wall mount holes for upright mounting
11. ON/OFF switch
12. Wall mount holes for lateral mounting

Parent unit overview

1. LED light

• On when the parent unit is connected to AC power, or the battery is charging.
• Flashes when the parent unit battery is low and needs charging.
• Off when the parent unit is disconnected from AC power.

2. LINK LED light

• On when the parent unit is linked to the camera unit.
• Flashes when the link to the camera unit is lost.

3. LED light

• On when the parent unit volume is set to off.
• On when the parent unit is talking to the camera unit.

4. TALK LED light

• On when the parent unit is talking to the camera unit.

5. LCD display
6. Microphone
7. LCD ON/OFF
8. POWER
9. Lullaby

• Press to enter the lullaby menu.

10. TALK

• Press and holdto talk to the camera unit.

11. Arrow keys

• While in the submenu, press to exit.
• or Press to move the selection box leftward, upward, rightward or downward.

12. MENU/SELECT

• Press to enter the menu. While in a menu, press to choose an item, or save a setting.

13. Zoom in
14. Zoom out

• Press to adjust the speaker volume.

16. Power jack
17. Antenna
18. Speaker
19. Battery compartment cover
20. Stand

How the system works

The Wi-Fi router (not included) provides Internet connectivity to your HD video monitor system. It serves as a communicating channel between your camera unit and parent unit, allowing you to monitor and/or control your camera unit wherever you are.

Protect your privacy and online security

VTech cares about your privacy and peace of mind. That's why we've put together a list of industry-recommended best practices to help keep your wireless connection private and your devices protected when online. We recommend you carefully review and consider complying with the following tips.

Ensure your wireless connection is secure.

• Before installing a device, ensure your router's wireless signal is encrypted by selecting the "WPA2-PSK with AES" setting in your router's wireless security menu.

Change default settings.

• Change your wireless router's default wireless network name (SSID) to something unique.
• Change default passwords to unique, strong passwords. A strong password:
  • Is at least 10 characters long.
  • Is complex.
  • Does not contain dictionary words or personal information.
  • Contains a mix of uppercase letters, lowercase letters, special characters and numbers.

Keep your devices up to date.

• Download security patches from manufacturers as soon as they become available. This will ensure you always have the latest security updates.
• If the feature is available, enable automatic updates for future releases.

Disable Universal Plug and Play (UPnP) on your router.

• UPnP enabled on a router can limit the effectiveness of your firewall by allowing other network devices to open inbound ports without any intervention or approval from you. A virus or other malware program could use this function to compromise security for the entire network.

For more information on wireless connections and protecting your data, please review the following resources from industry experts:

1. Federal Communications Commission: Wireless Connections and Bluetooth Security Tips – www.fcc.gov/consumers/guides/how-protect-yourself-online.
2. U.S. Department of Homeland Security: Before You Connect a New Computer to the Internet – www.us-cert.gov/ncas/tips/ST15-003.
3. Federal Trade Commission: Using IP Cameras Safely – https://www.consumer.ftc.gov/articles/0382-using-ip-camerassafely.
4. Wi-Fi Alliance: Discover Wi-Fi Security – http://www.wi-fi.org/discover-wi-fi/security.

Connect and charge the battery

Connect the baby monitor

Notes

• Use only the power adapters supplied with this product.
• Make sure the parent unit and the camera unit are not connected to the switch controlled electric outlets.
• Connect the power adapters in a vertical or floor mount position only. The adapters' prongs are not designed to hold the weight of the parent unit and the camera unit, so do not connect them to any ceiling, under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
• Make sure the parent unit, the camera unit and the power adapter cords are out of reach of children.

Connect the camera unit

Note

• To maintain compliance with the FCC's RF exposure guidelines, place the camera unit at least 20cm from nearby persons.

1. Connect the power adapter to the camera unit and a power supply.

2. Slide the ON/OFF switch to ON to power on your camera.


Note:

• To turn off the camera, slide the ON/OFF switch to OFF.

Connect and charge the parent unit battery

Install the parent unit battery

The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. With the battery alone, the parent unit can cordlessly run for a short only.

Notes:

• Use only the battery supplied with this product.
• If the parent unit will not be used for a long time, disconnect and remove the battery to prevent possible leakage.

1. Press down on the battery compartment cover to pull it out.

2. Make sure the label THIS SIDE UP is facing up while inserting the battery.


Replace the battery

To replace the battery, press down on the battery compartment cover and pull it out, then follow the steps above to install the battery.

Raise the antenna of the parent unit

Charge the battery before use

Notes:

• The parent unit is fully charged after 4 hours of continuous charging.
• It takes longer to charge when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging.
• The standby time varies depending on your actual use and the age of the battery.


After the parent unit is fully charged, press and hold POWER until the VTech logo appears on screen to power on.

The battery icon indicates the battery status (see the following table).

Battery indicators	Battery status	Action
The battery icon is off and displays .	No battery is installed but operates using AC power, or the battery has been installed incorrectly.	Install the parent unit battery. Charge without interruption (at least 30 minutes).
The screen displays Battery low at Parent Unit and The light flashes.	The battery has very little charge and may be used for only a short time.	Charge without interruption (about 30 minutes).
The battery icon becomes solid .	The battery is fully charged.	To keep the battery charged, connect it to AC power when not in use.

Set up the hd video monitor

After you have connected the parent unit and the camera unit, refer to the Quick start guide included in your package to set up your HD video monitor system.

HD video monitor setup:

• Set up Wi-Fi connection
• Add camera

Test the location for the camera unit

Before you install your camera unit, you need to test which of your selected monitoring areas within the house have good Wi-Fi signal strength. After you have powered on your parent unit, you can use your parent unit's Wi-Fi signal strength indicator to assist in checking. Once you have identified the suitable location, you can install your camera unit. Adjust the distance between your camera unit and the Wi-Fi router if needed.

Tip:

• Depending on surroundings and obstructing factors, such as the effect distance and internal walls have on signal strength, you may experience reduced Wi-Fi signal. To improve the Wi-Fi signal strength, adjust the distance or direction of your parent unit. Check with your parent unit again.

Note:

• This HD video monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such.

Testing the sound level of the HD video monitor

• For hearing protection, make sure the parent unit is more than 10 feet (3 meters) away from the camera unit. If you hear any high-pitched noise from the parent unit, move the parent unit further until the noise stops. You can also press - VOL on the parent unit to lower or mute the noise.

Tip

• Increase the parent unit speaker volume if you cannot hear the sounds transmitted from the camera unit.

Positioning the HD video monitor

• Keep the camera unit out of the reach of your baby. Never place or mount the camera unit inside the baby's crib or playpen.

1. Place the camera unit more than 10 feet (3 meters) away from your baby.

2. Adjust the angle of the camera to aim at your baby.


Tip

• Increase the parent unit speaker volume if you cannot hear the sounds transmitted from the camera unit.

3. To avoid causing high-pitched screeching noise from your HD video monitor:

• Make sure your camera unit and parent unit are more than 10 feet (3 meters) apart; OR
• Turn down the volume of your parent unit.

Mount the camera unit (optional)

Items to purchase

You will need to purchase the following items separately to mount your baby unit:
2 screws 2 anchors

Note:

• The types of screws and anchors you need depend on the composition of the wall.

Note:

• Check for reception strength and camera angle before drilling the holes.

1. Use a pencil to mark two holes in parallel. Make sure they are the same distance apart as the wall mount holes on the camera unit.

2. Drill two holes in the wall.

• If you drill the holes into a stud, go to step 3. If you drill the holes into an object other than a stud, insert the wall anchors into the hole. Tap gently on the ends with a hammer until the wall anchors are flush with the wall.


3. Insert the screws into the holes and tighten the screws in the holes until only 1/4 inch of the screws are exposed.

4. Depending on your preference, choose the upright or lateral orientation to mount your unit. Align the wall mount holes at the bottom or at the rear side of the camera unit with the screws on the wall. Slide the camera unit down until it locks into place

5. Tilt or rotate to adjust camera angle.


General product care

To keep this product working well and looking good, follow these guidelines:

• Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps).
• DO NOT expose it to direct sunlight or moisture.
• Avoid dropping the product or treating it roughly.
• Clean with a soft cloth.
• DO NOT immerse the parent unit and the camera unit in water and do not clean them under the tap.
• DO NOT use cleaning spray or liquid cleaners.
• Make sure the parent unit and the camera unit are dry before you connect them to the mains again.

Storage

When you are not going to use the HD video monitor for some time, store the parent unit, the camera unit and the adapters in a cool and dry place.

Frequently asked questions

Below are the questions most frequently asked about the HD video monitor. If you cannot find the answer to your question in the below table, visit our website at www.vtechphones.com, or call 1-844-848-8324 (1-844-84-VTECH) for customer service. In Canada, go to www.vtechcanada.com or call 1-888-211-2005.

Can I turn off the parent unit screen but keep hearing sound from the camera unit?	Press LCD ON/OFF to turn off the screen display without powering off the parent unit. You can still hear sound from the camera unit if the camera is streaming, and the speaker volume of the parent unit is turned on.
Why does the camera unit not respond normally?	Try the following (in the order listed) for common cure: Disconnect the power to the camera unit. Wait a few minutes before connecting power back to the camera unit. Turn on the camera unit. Reboot the parent unit.
Why is my screen in black and white?	The camera unit has a light sensor that measures the ambient light. When the ambient light is dim, such as during nighttime or in a dark room, the camera activates its infrared LEDs, and displays the camera view in black and white.
Why does my camera show offline? Why is the connection lost every now and then?	The camera unit may lose the Internet connection. Check your network and the router setting. Other electronic products may cause interference with your camera. Try installing your camera as far away from these electronic devices as possible.
Why don't I hear a sound/Why can't I hear my baby cry?	The parent unit speaker volume may be too low. Press VOL + to increase the volume. You may have set a low VOX sensitivity level. Set the VOX sensitivity to a higher level. For details, refer to the online manual.

Limited warranty

How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to the repaired or replacement Product for a period of either

1. 90 days from the date the repaired or replacement Product is shipped to you or
2. the time remaining on the original one-year warranty; whichever is longer.

How do you get warranty service?
To obtain warranty service in the USA, please visit our website at www.vtechphones.com or call 1-844-848-8324 (1-844-84-VTECH). In Canada, go to www.vtechcanada.com or call 1-888-211-2005.NOTE: Before calling for service, please review the user's manual - a check of the Product's controls and features may save you a service call.

Please retain your original sales receipt as proof of purchase.

Technical specifications

Frequency	Camera unit: 2412 - 2462 MHz
Channels	11
LCD	5'' Color LCD (IPS 480x272 pixels)
Nominal effective range	Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use.
Power requirement	Parent unit power adapter: Output: 5V DC 1.5A Parent unit: 3.7V Li-polymer battery Camera unit power adapter: Output: 5V DC 1500mA
