Thin Mini-ITX Internal Electrical Interfaces

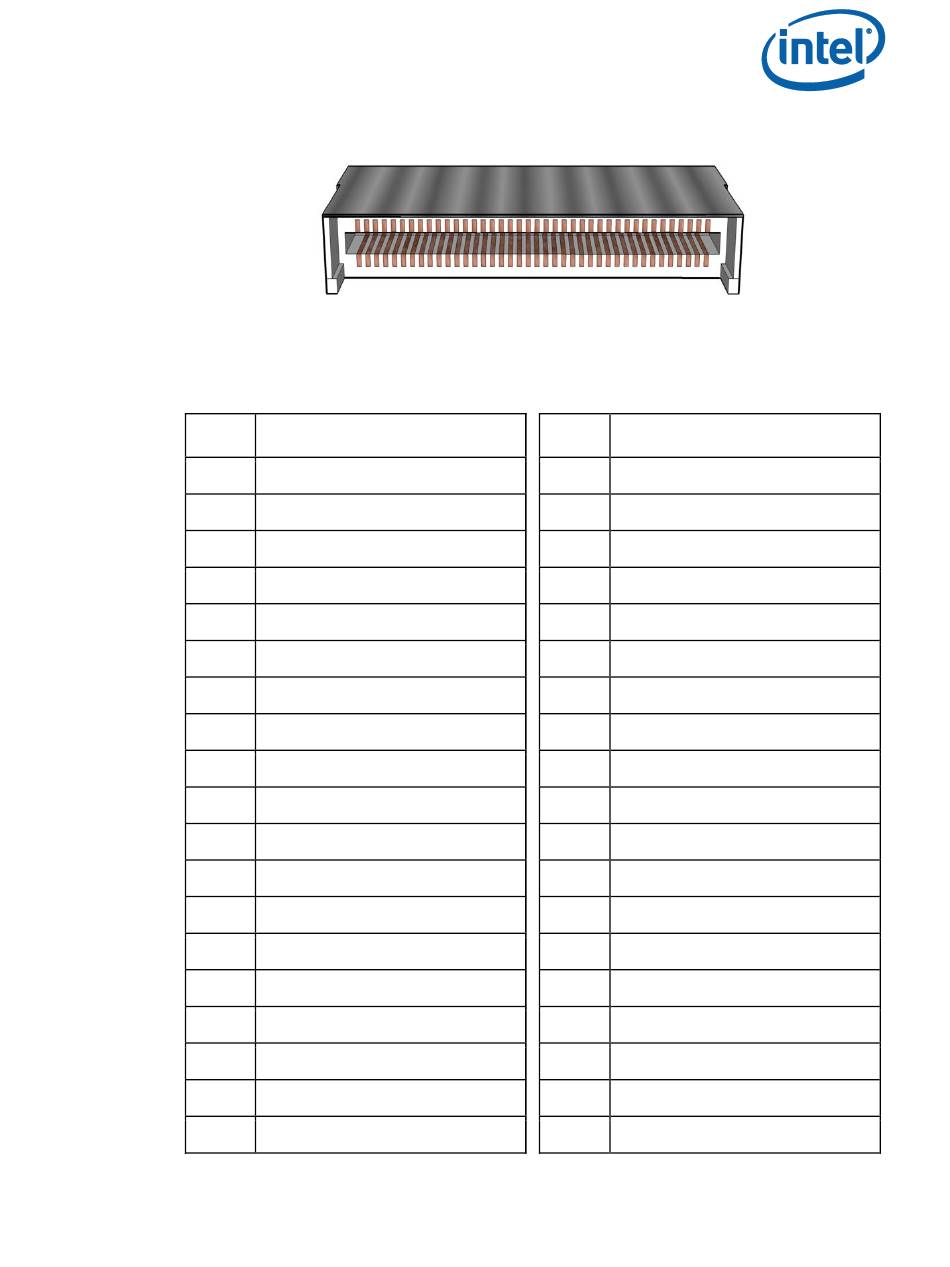

Figure 2-1. 40-pin LVDS Header

Table 2-2. 40-pin LVDS Header Pin-Out

Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Thin Mini-ITX Based PC System Design Guide
Signal Name
ODD_Lane3_P
ODD_Lane3_N
ODD_Lane2_P
ODD_Lane2_N
ODD_Lane1_P
ODD_Lane1_N
ODD_Lane0_P
ODD_Lane0_N
EVEN_Lane3_P
EVEN_Lane3_N
EVEN_Lane2_P
EVEN_Lane2_N
EVEN_Lane1_P
EVEN_Lane1_N
EVEN_Lane0_P
EVEN_Lane0_N
EDID_GND
LCD_VCC
LCD_VCC
Pin Signal
21 N/C
22 EDID_3.3V
23 LCD_GND
24 LCD_GND
25 LCD_GND
26 ODD_CLK_P
27 ODD_CLK_N
28 BKLT_GND
29 BKLT_GND
30 BKLT_GND
31 EDID_CLK
32 BKLT_ENABLE
33 BKLT_PWM_DIM
34 EVEN_CLK_P
35 EVEN_CLK_N
36 BKLT_PWR
37 BKLT_PWR
38 BKLT_PWR
39 N/C
15
