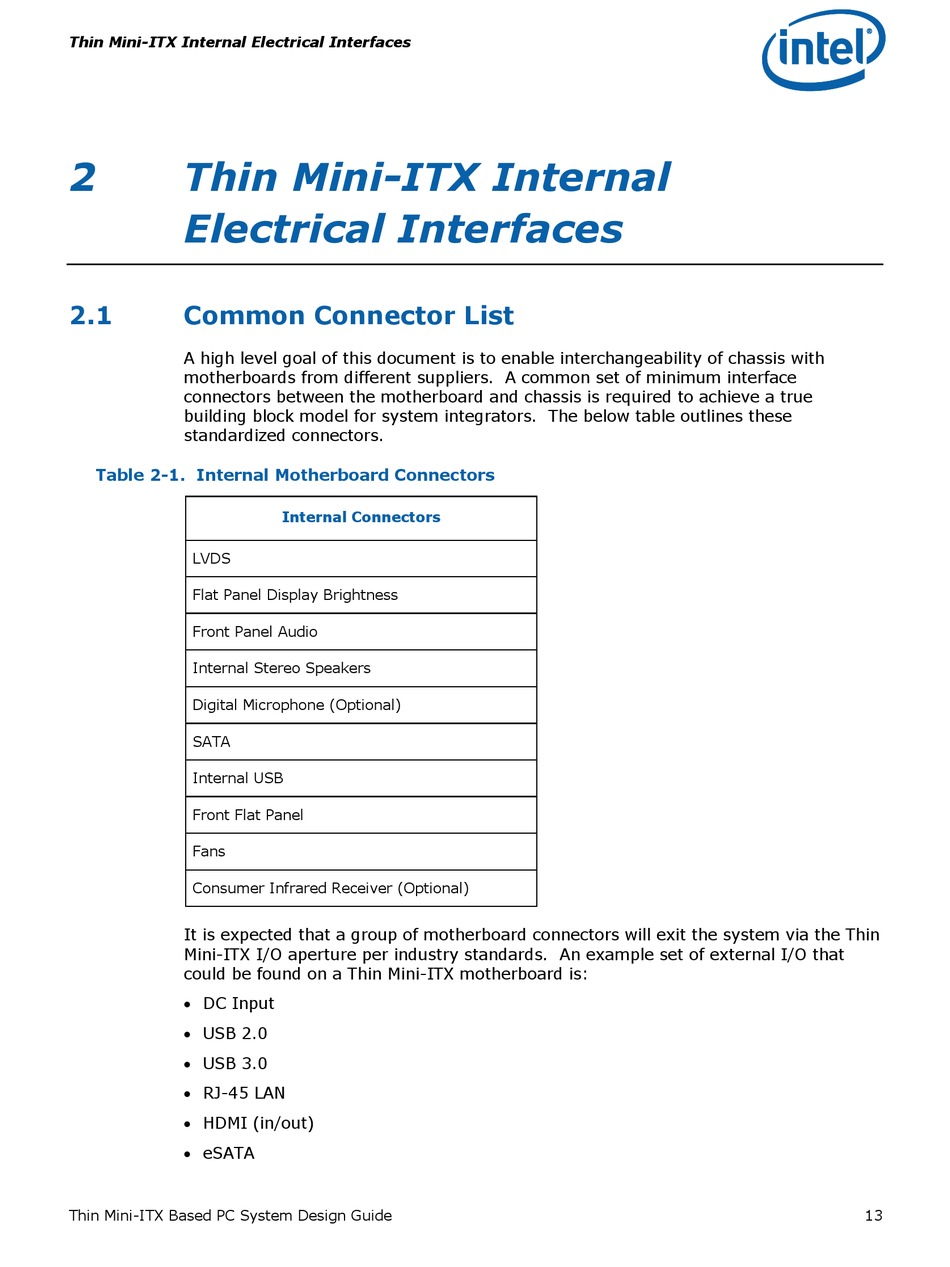

Thin Mini-ITX Internal Electrical Interfaces

2 Thin Mini-ITX Internal
Electrical Interfaces
2.1

Common Connector List

A high level goal of this document is to enable interchangeability of chassis with
motherboards from different suppliers. A common set of minimum interface
connectors between the motherboard and chassis is required to achieve a true
building block model for system integrators. The below table outlines these
standardized connectors.

Table 2-1. Internal Motherboard Connectors

LVDS
Flat Panel Display Brightness
Front Panel Audio
Internal Stereo Speakers
Digital Microphone (Optional)
SATA
Internal USB
Front Flat Panel
Fans
Consumer Infrared Receiver (Optional)
It is expected that a group of motherboard connectors will exit the system via the Thin
Mini-ITX I/O aperture per industry standards. An example set of external I/O that
could be found on a Thin Mini-ITX motherboard is:
 DC Input
 USB 2.0
 USB 3.0
 RJ-45 LAN
 HDMI (in/out)
 eSATA
Thin Mini-ITX Based PC System Design Guide
Internal Connectors
13
