Thin Mini-ITX Internal Electrical Interfaces

Table 2-13. Front Panel Main Header Pin-Out

Pin
1 HDD_POWER_LED
2 POWER_LED_MAIN
3 HDD_LED#
4 POWER_LED_ALT
5 GROUND
6 POWER_SWITCH#
7 RESET_SWITCH#
8 GROUND
9 +5V_DC
10 KEY
2.7

Internal Power Input

19V internal power input connector: 1x2 shrouded with latch, 9[A] minimum current
rating (part number reference: Molex* 5566-2, or equivalent)
Mating plug reference part number: Molex 5557-02R, or equivalent
See chapter 4 for additional information on power.

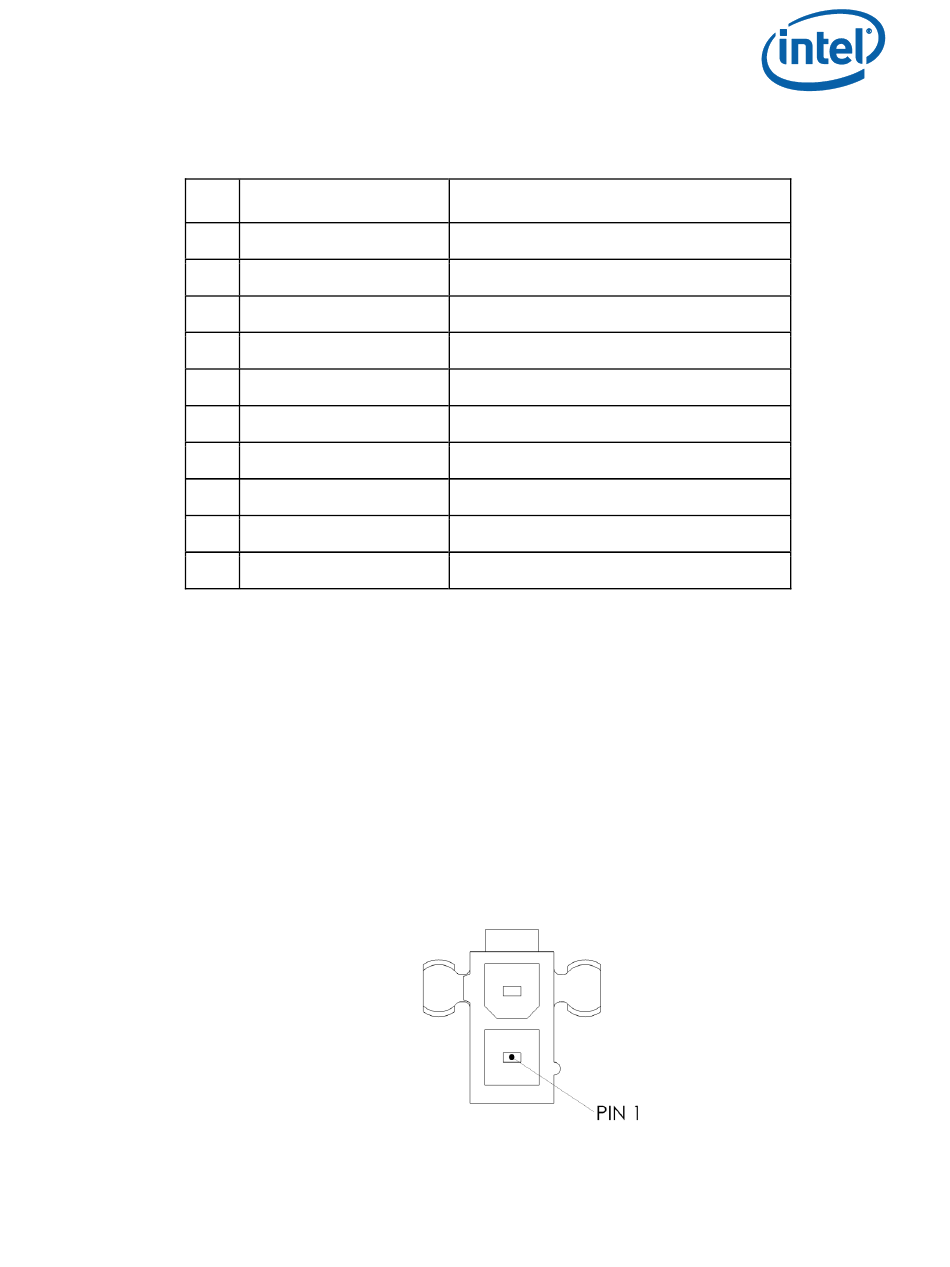

Figure 2-14. Internal Power Header

Thin Mini-ITX Based PC System Design Guide
Signal Name
Pull-up resistor to +5V
[Out] Front panel LED (main color)
[Out] Hard disk activity LED
[Out] Front panel LED (alt color)
Ground
[In] Power switch
[In] Reset switch
Ground
Power
No pin
Description
29
