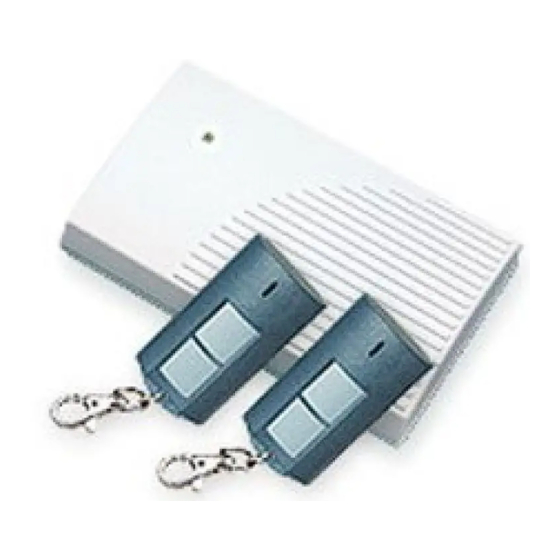

The RE-1K / RE-2K enables electrical equipment to be remotely controlled by
means of radio transmitters (remote keys). The RE-1K is a single-channel controller,
the RE-2K - a double-channel one. Both types of remote control sets can work with up
to 16 remote keys. The RE-1K / RE-2K only support SATEL-manufactured remote
keys.
The design is based on the components of Microchip Technology Inc. which use the
®
K
L
code-hopping technology for transmission between the transmitter and the
EE
OQ
receiver. It ensures both security of use and resistance to spurious control signals
coming from other devices.
1 Description of electronics board
antenna
As just one relay is installed on the electronics board of the RE-1 controller, the board
has neither the K2 pins or the second relay terminals.
Description of terminals:
SS
– siren control output (OC);
+12V – power supply input (direct voltage from 9V to 16V);
COM – common (ground);
C1
– common terminal, channel 1 relay;
NC1 – normally closed terminal, channel 1 relay;
NO1 – normally open terminal, channel 1 relay;
®
LED
tamper contact

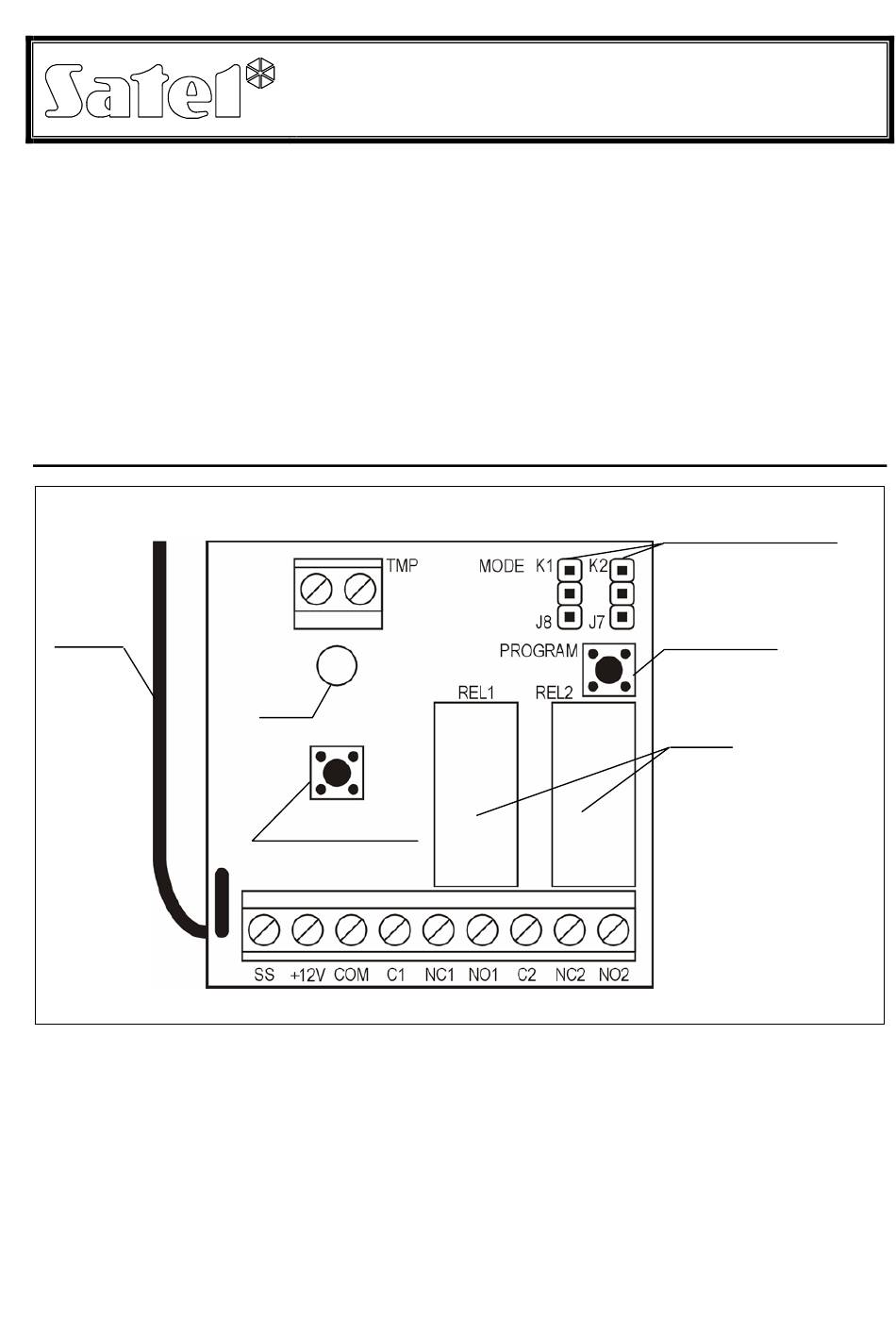

Figure 1. Schematic view of RE-2K board
REMOTE CONTROL SET
RE-1K / RE-2K
re12k_е 10/06
operating mode
programming pins
programming
button
relays
Advertisement
Table of Contents
Related Manuals for Satel RE-1K
Summary of Contents for Satel RE-1K
- Page 1 ® re12k_е 10/06 The RE-1K / RE-2K enables electrical equipment to be remotely controlled by means of radio transmitters (remote keys). The RE-1K is a single-channel controller, the RE-2K - a double-channel one. Both types of remote control sets can work with up to 16 remote keys.
- Page 2 Permissible current-carrying capacity of the SS output is 500mA. 2 Installation The RE-1K and RE-2K are mounted in a plastic housing. When closing the housing, be particularly careful so that the programming button is not pressed in by the cables.
- Page 3 RE-1K / RE-2K SATEL 3 Programming 3.1 Adding remote keys To enter remote keys into the receiver memory follow the procedure below: 1. Press the programming button – the LED starts blinking green. 2. Press any button on the remote key – the LED starts blinking red.
- Page 4 Range in open area ..................up 100m ......(an obstacle between the transmitter and the receiver will reduce the device operating range) Number of controlled outputs ............1 (RE-1K) / 2 (RE-2K) Supply voltage, rated...................12V DC Current consumption, minimum ..............approx. 16mA Current consumption, maximum ......
