Satel APT-100 Quick Start Manual

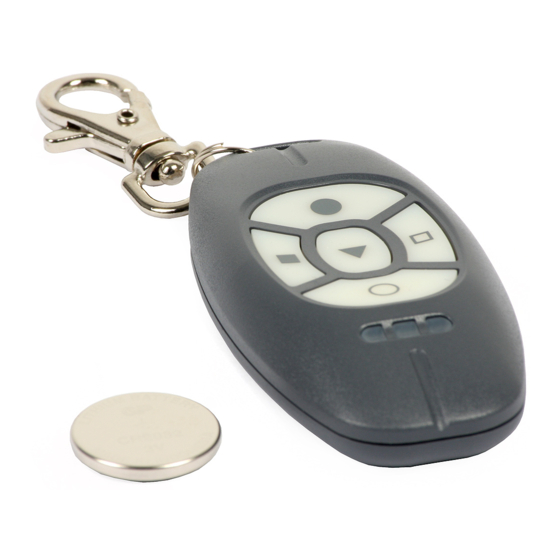

The APT-100 bidirectional keyfob is designed for operation as part of the ABAX two-
way wireless system. It is supported by:
− ACU-100 controller with firmware version 2.00 or later, interacting with an
INTEGRA control panel with firmware version 1.06 or later;
− INTEGRA 128-WRL control panel with firmware version 1.06 or later.
The keyfob can be assigned to any user of the system (except for the service). The
way of adding the keyfobs is described in the user manual for the INTEGRA control
panel.
The main features of the keyfob:
• Encrypted bidirectional communication between the keyfob and the ACU-100
controller or the INTEGRA 128-WRL control panel.
• 5 buttons for starting up to 6 selected functions.
• 3 LEDs indicating the status of selected alarm system outputs.
• Audible signaling of keypresses.
• Audible signaling of transmission from the keyfob being received by ACU-100
controller or INTEGRA 128-WRL control panel.
• Key backlighting activated by pressing any key.
• Low battery indication.

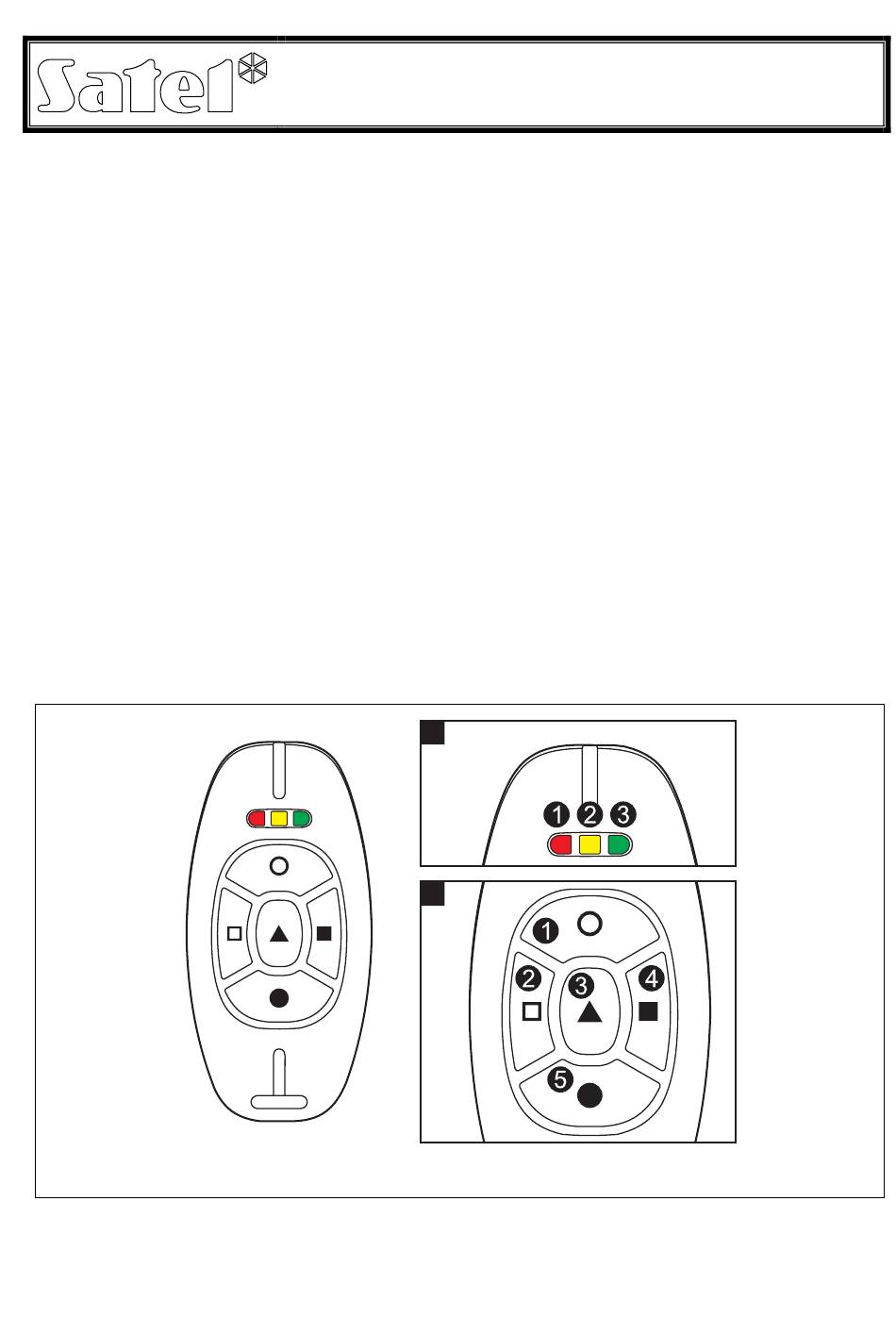

Fig. 1. APT-100 keyfob. A – numeration of LEDs. B – numeration of keyfob buttons.
®
BIDIRECTIONAL KEYFOB
APT-100
A
B
apt100_en 05/09
