Page 1

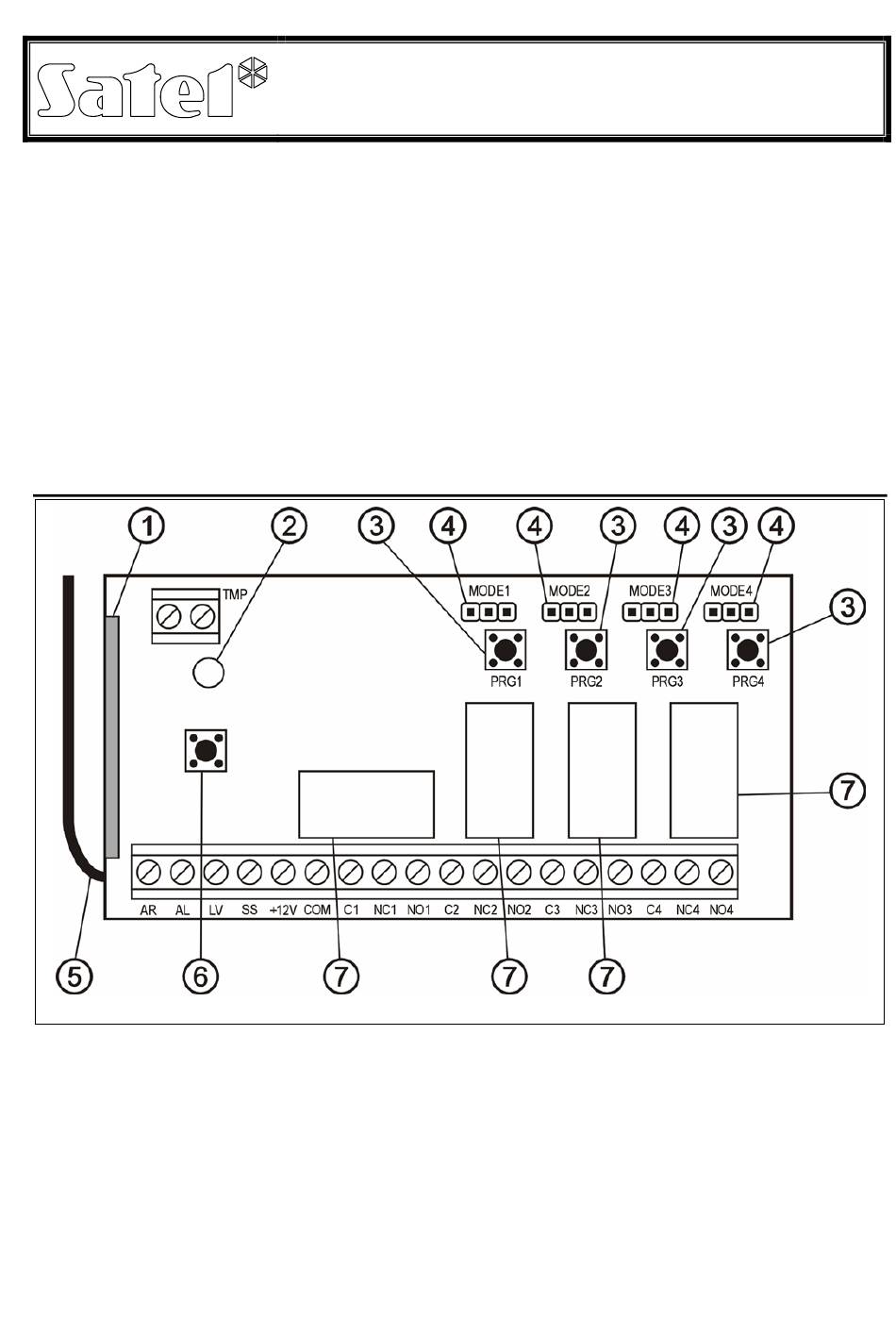

340 remote keys. The RE-4K only supports SATEL-manufactured remote keys. Interaction of the RE-4K with security systems is facilitated by inputs which provide information on the system status. They make it possible to easily organize signaling of arming / disarming, as well as of alarm clearance.
Page 2
These electrostatic discharges should be removed prior to installation. Also, touching the receiver board components should be avoided in the process of installation. The RE-4K is mounted in a plastic housing. When closing the housing, be particularly careful so that the programming button is not pressed in by the cables.
Page 3
LOAD LOAD The program offers more advanced operation of the RE-4K. It allows edition of the list of remote keys by their unique serial numbers, deletion of individual remote keys already entered in the system, and assignment of user names to remote keys.
Page 4
10 program, select "New device" in the "File" menu, and then the "RX- LOAD 2K/RX-4K/RE-4K". The remote control sets management window opens. Click on the "Read transmitters" button to open the list of remote keys already entered into the receiver.
Page 5
RE-4K SATEL 2. According to the displayed command, press any button of the remote key. 3. According to the displayed command, press the remote key button again. Fig. 3. Window for adding new remote keys in the D 10 program.
Page 6
SATEL RE-4K bistable mode monostable mode pulse mode jumper removed jumper on two pins, left- jumper on two pins, right- hand side hand side Fig. 4. Example of setting the operating mode on pins - channel 1. Bistable mode (see Fig. 4) – each press of remote key button changes the relay status to the opposite one.
Page 7
RE-4K SATEL RE-4K alarm control panel CA-6 siren SP-500 Fig. 3. Example of remote control of the CA-6 control panel. In the presented example, the channel 1 (relay 1) controls the control panel armed mode, while the channel 4 (relay 4) triggers the silent PANIC alarm. These relays operate in the pulse mode (jumpers suitably set on the MODE1, MODE4 pins) and feed the common ground (0V) to the CTL, Z1 zones of the control panel.
Housing dimensions................... 72x118x24mm Type of remote key battery, T4 ..................23A 12V DECLARATION OF CONFORMITY Product: Manufacturer: SATEL spółka z o.o. RE-4K – remote control set ul. Schuberta 79 80-172 Gdańsk, POLAND tel. (+48 58) 320-94-00 fax. (+48 58) 320-94-01 Product description: A set of remote control set with coded transmission, having 4 controlled outputs, operating in frequency band 433.05MHz –...
