Satel RE-1K Installation

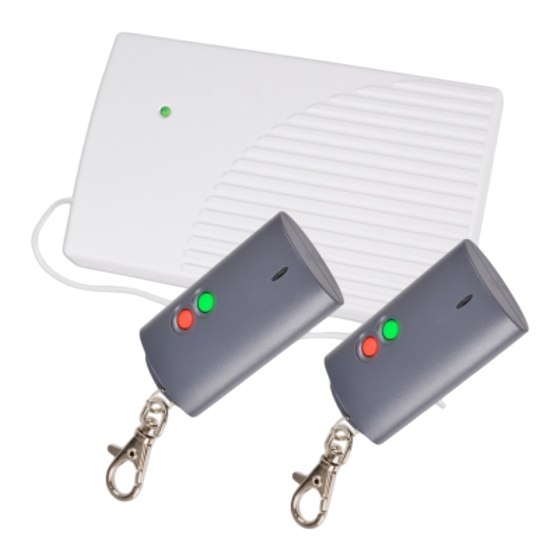

The RE-1K/RE-2K enables electrical equipment to be remotely controlled by means of
radio transmitters (remote keyfobs). The RE-1K is a single-channel controller, the
RE-2K – a double-channel one. Both types of remote controller sets can work with up
to 16 remote keyfobs. The RE-1K/RE-2K only support SATEL-manufactured
433 MHz remote keyfobs.
The design is based on the components of Microchip Technology Inc. which use the
®
K L code-hopping technology for transmission between the transmitter and the
EE OQ
receiver. It ensures both security of use and resistance to spurious control signals
coming from other devices.

1 Description of electronics board

antenna
As just one relay is installed on the electronics board of the RE-1 controller, the board
has neither the K2 pins or the second relay terminals.

Description of terminals:

SS – siren control output (OC);
+12V – power supply input (direct voltage from 9V to 16V);
COM – common (ground);
C1 – common terminal, channel 1 relay;
NC1 – normally closed terminal, channel 1 relay;
NO1 – normally open terminal, channel 1 relay;
REMOTE CONTROLLER SET
®
LED
tamper contact

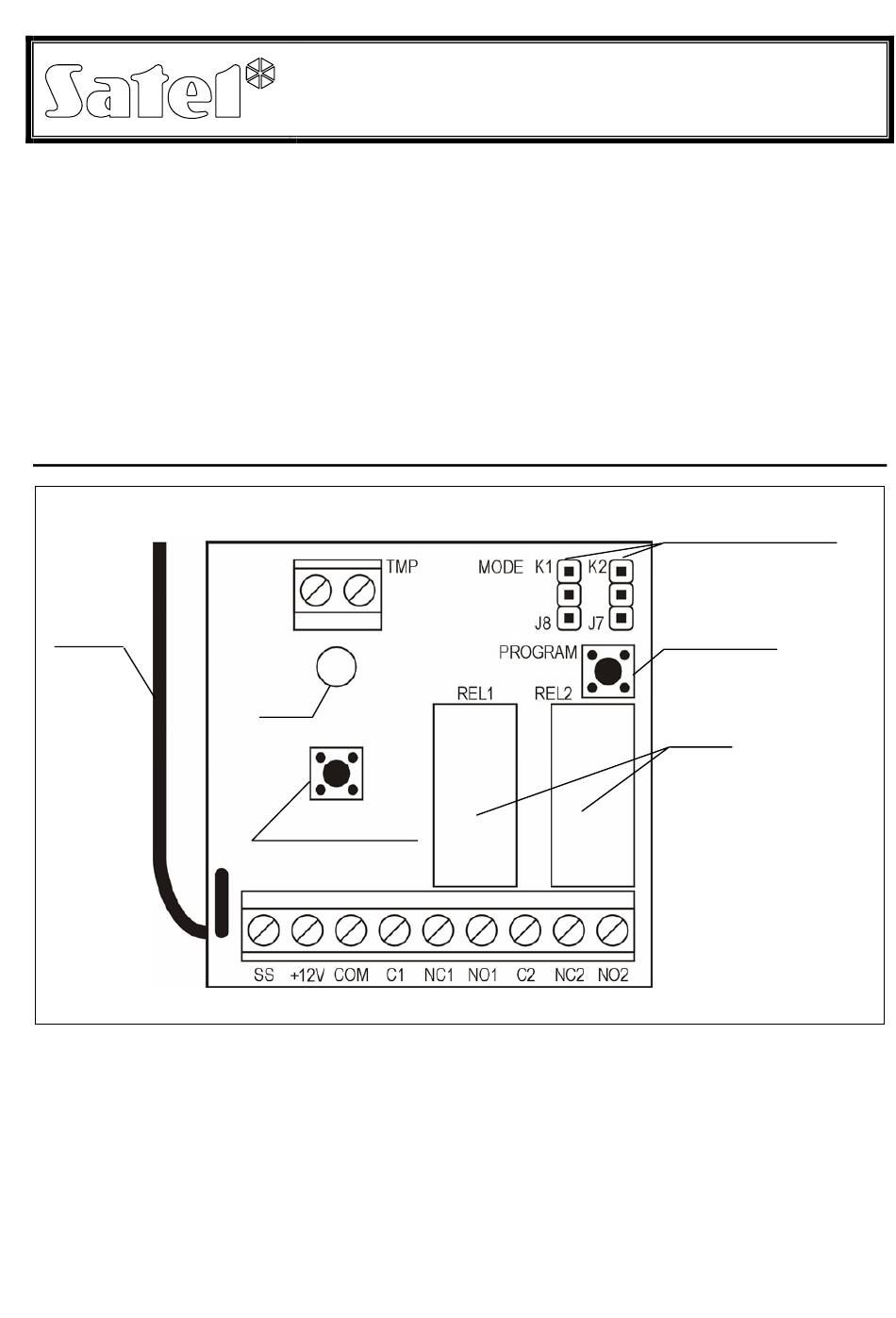

Figure 1. Schematic view of RE-2K board
RE-1K/RE-2K
re12k_еn 12/10
operating mode
programming pins
programming
button
relays
